POOLEX 90 - Electrical Connection

17
Please comply with the following instructions to electrically connect the heat pump.
Step 1: Detach the electrical side panel with a screwdriver to access the electrical terminal block.
Step 2: Insert the cable into the heat pump unit by passing it through the opening provided for that purpose.
Step 3: Connect the power supply cable to the terminal block in accordance with the diagram below.
Step 4: Carefully close the heat pump panel.
Servo-control of circulating pump
Depending on the type of installation, you can also connect a circulating pump to terminals P1 and P2 so
that this operates in tandem with the heat pump.
3. Installation
3.8 Electrical connection
WARNING: The heat pump’s power supply MUST be disconnected before any operation.
WARNING: Servo-control of a pump whose power exceeds 5A (1000W) requires the use of a
power relay.

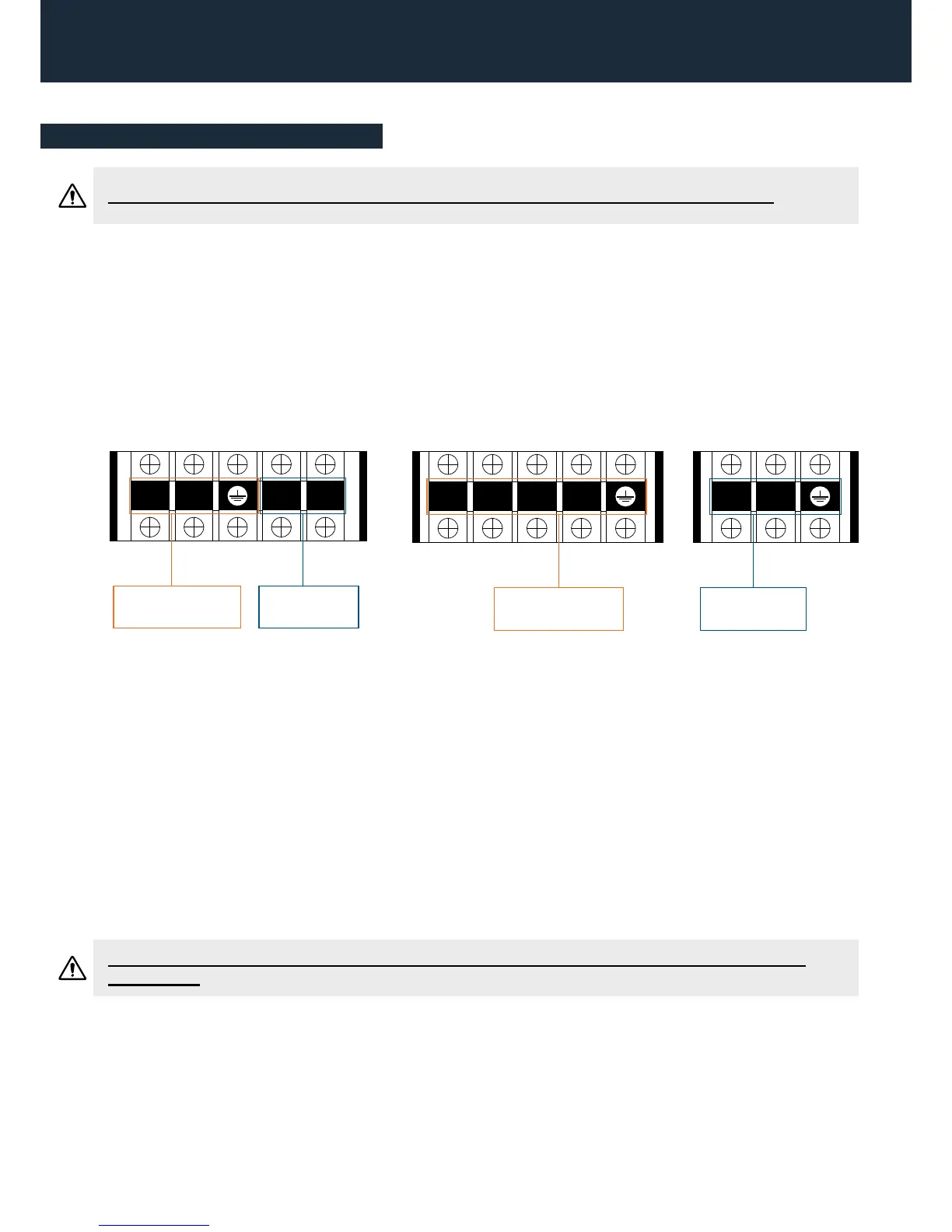

L N P1 P2
Connecter à l’alimentation
230V / 50Hz
Connecter à la
pompe à filtration
ou un relais de puissance
PHASE NEUTRE TERRE PHASE NEUTRE
Single phase model
Connect to power supply
230V / 50Hz
PHASE NEUTRAL NEUTRALEARTH PHASE
Connect to a ltration
pump or a power
relay
P1 P2
PHASE TERRENEUTRE
Connecter à la
pompe de circulation
ou un relais de puissance
C N
PHASE CPHASE BPHASE A NEUTRE TERRE
BA
Connecter à l’alimentation
Triphasée
400V / 50Hz
3-phase model
PHASE NEUTRAL EARTHPHASE A PHASE B PHASE C NEUTRAL EARTH
Connect to power supply
3-phase
400V/50Hz
Connect to a ltration
pump or a power relay
