POOLEX 90 - Page 15

15

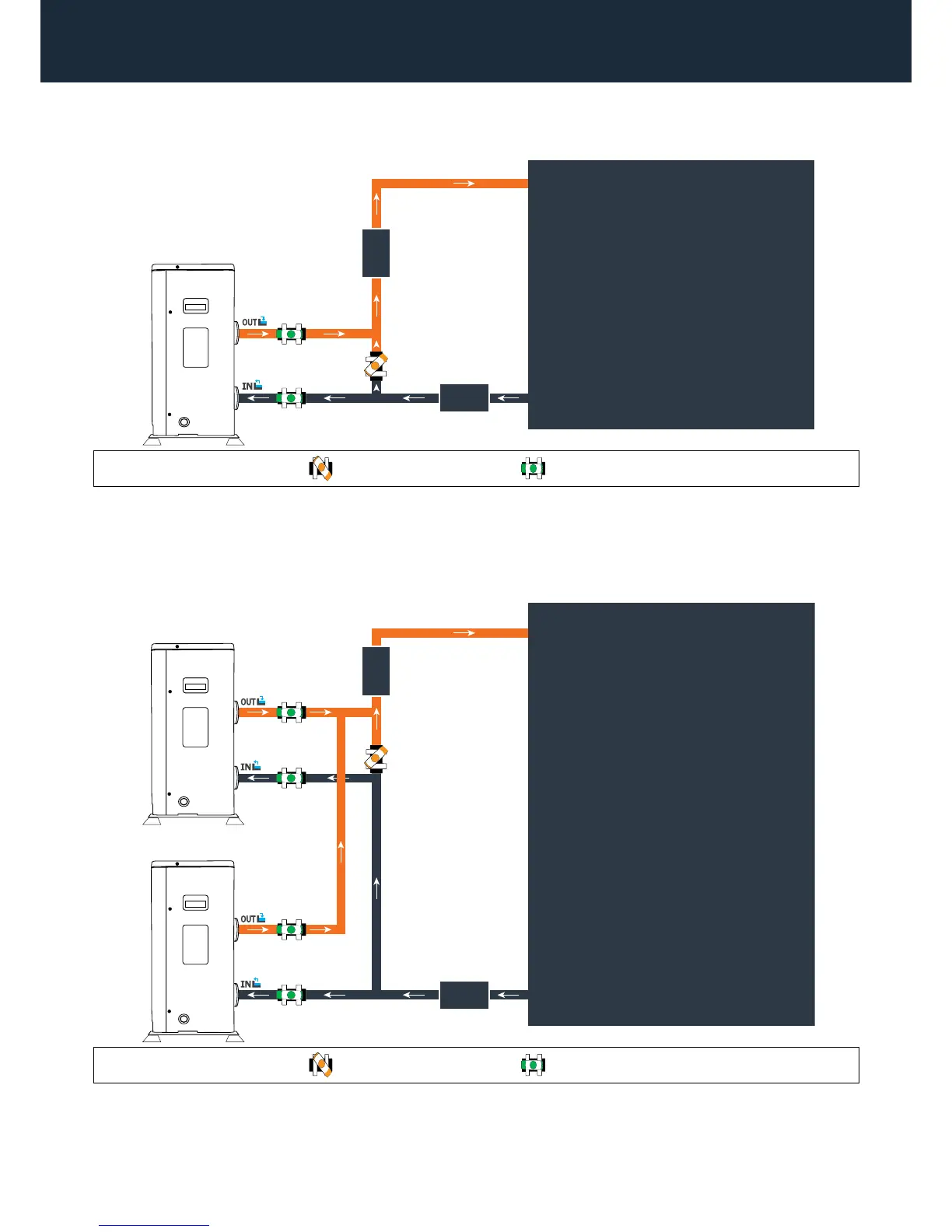

By-Pass assembly for more than one heat pump
By-Pass assembly for one heat pump
The lter located upstream of the heat pump must be regularly cleared so that the water in
the system is clean, thus avoiding the operational problems associated with dirt or clog-
ging in the lter.
3. Installation
Half-open valve
Half-open valve
Open valve
Open valve
Key
Key
TOWARDS THE POOL
Filtration + Pump
Filtration + Pump
Automated treatment
system
Automated treatment
system
TOWARDS THE POOL
FROM THE POOL
POOL
POOL
FROM THE POOL
