7.5.1 Hinged skylight
The hinged skylight is opened on one side only.
Opening:
 Press the safety knob (Fig. 22,2) and pull the bar (Fig. 22,1) down with both
hands.
 Pull the bar (Fig. 23,1) in the guides (Fig. 23,2) to the rearmost position
(Fig. 23,3).
Closing:
 Use both hands to push the bar (Fig. 23,1) slightly upwards.
 Push the bar back in the guides.
 Push the bar upwards with both hands until it is above the safety knob (Fig.
22,2).
Ventilation position The hinged skylight can be put in two ventilation positions: Bad weather posi-
tion (Fig. 24,1) and central position (Fig. 24,2). Depending on the model, the
skylight can be locked in the central position with the latch (Fig. 25,1).
 Press the safety knob (Fig. 22,2) and pull the bar (Fig. 22,1) down with both
hands.
 Pull the bar in the guides (Fig. 23,2) to the desired position.
 Push the bar slightly upwards and into the selected guide (Fig. 24,1 or 2)
and lock if necessary.
Roman shade To close and open the Roman shade:
 If it rains, the ventilation skylight position could lead to water entering the
living area. Therefore close hinged skylight completely.

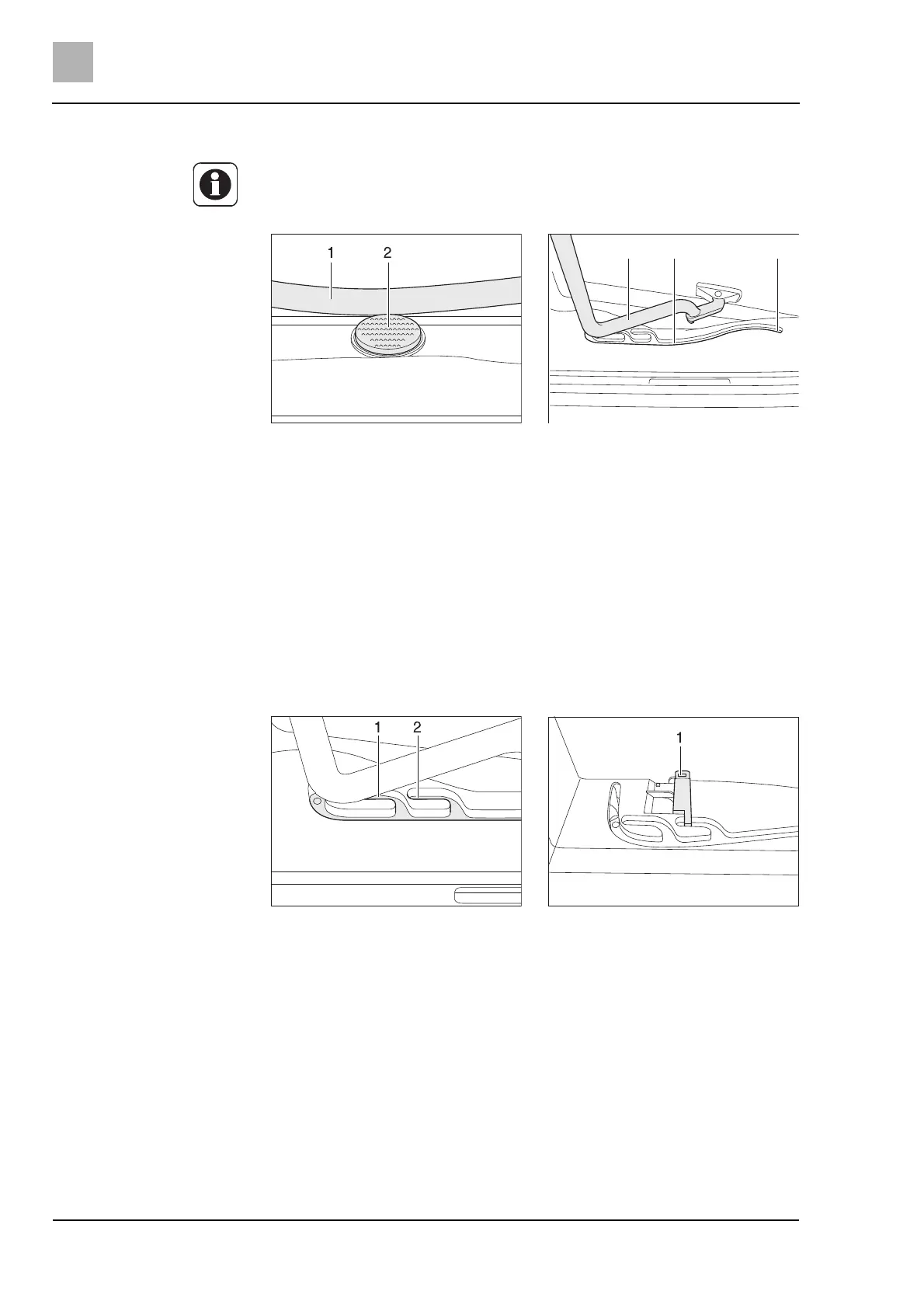

Fig. 22 Securing knob at the hinged
skylight
Fig. 23 Hinged skylight, guide
12 3
Fig. 24 Hinged skylight in ventilation
position
Fig. 25 Locking mechanism in ventila-
tion position
