9.5.1 Control panel main display

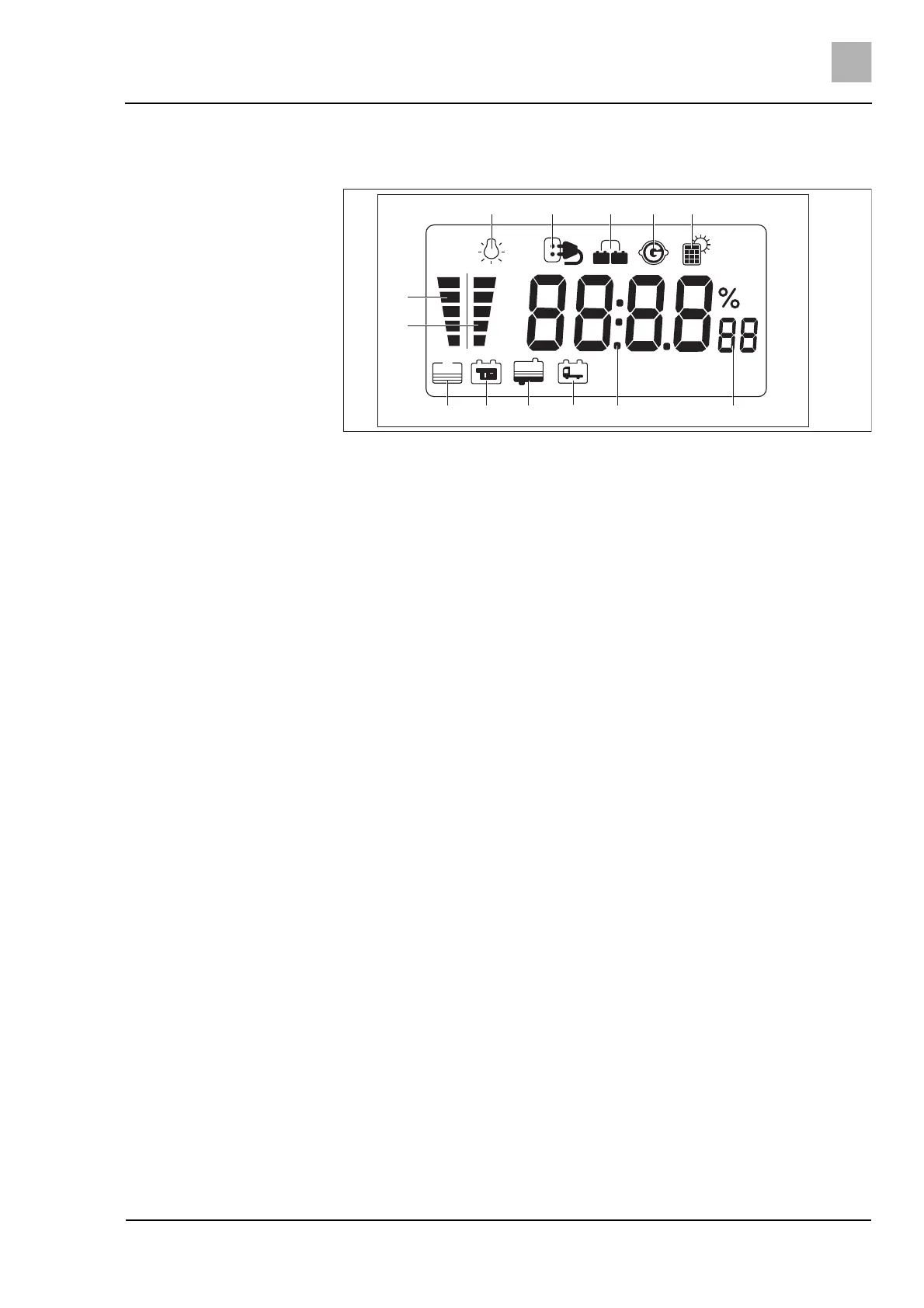

Fig. 53 Control panel main display
1 Signals that the deep discharge protection is active
2 Display 230 Volt power connection
3 Display of battery charging through motor or external power system
4 Display of started vehicle engine
5 Signals charging process by solar panel (only with BCE charge regulator)
6 Display for fresh water tank level
7 Display for living area battery charge
8 Flashing symbol signals empty fresh water tank
9 Flashing symbol signals discharged living area battery
10 Flashing symbol signals full waste water tank
11 Flashing symbol signals discharged vehicle battery
12 Time display or display of the selected function
13 Display of the units of measurement
12345
6
7
891011 12 13
