9.3 Charging unit
Charging unit The electrics including the charger are located under the driver's seat.
Living area battery The living area battery is located under the front passenger's seat.
If the control lamp lights up, the appliance is ready to operate. The vehicle is
equipped with a living area battery as standard.
If possible, always leave the charging unit switched on (except in the case
of maintenance work or when removing the vehicle battery).
The charging unit heats up during operation. In the case of a total discharge
of the battery it is possible that the thermal protection is triggered and that
the unit switches off briefly. After the cooling-down phase the charging unit
switches on automatically again.

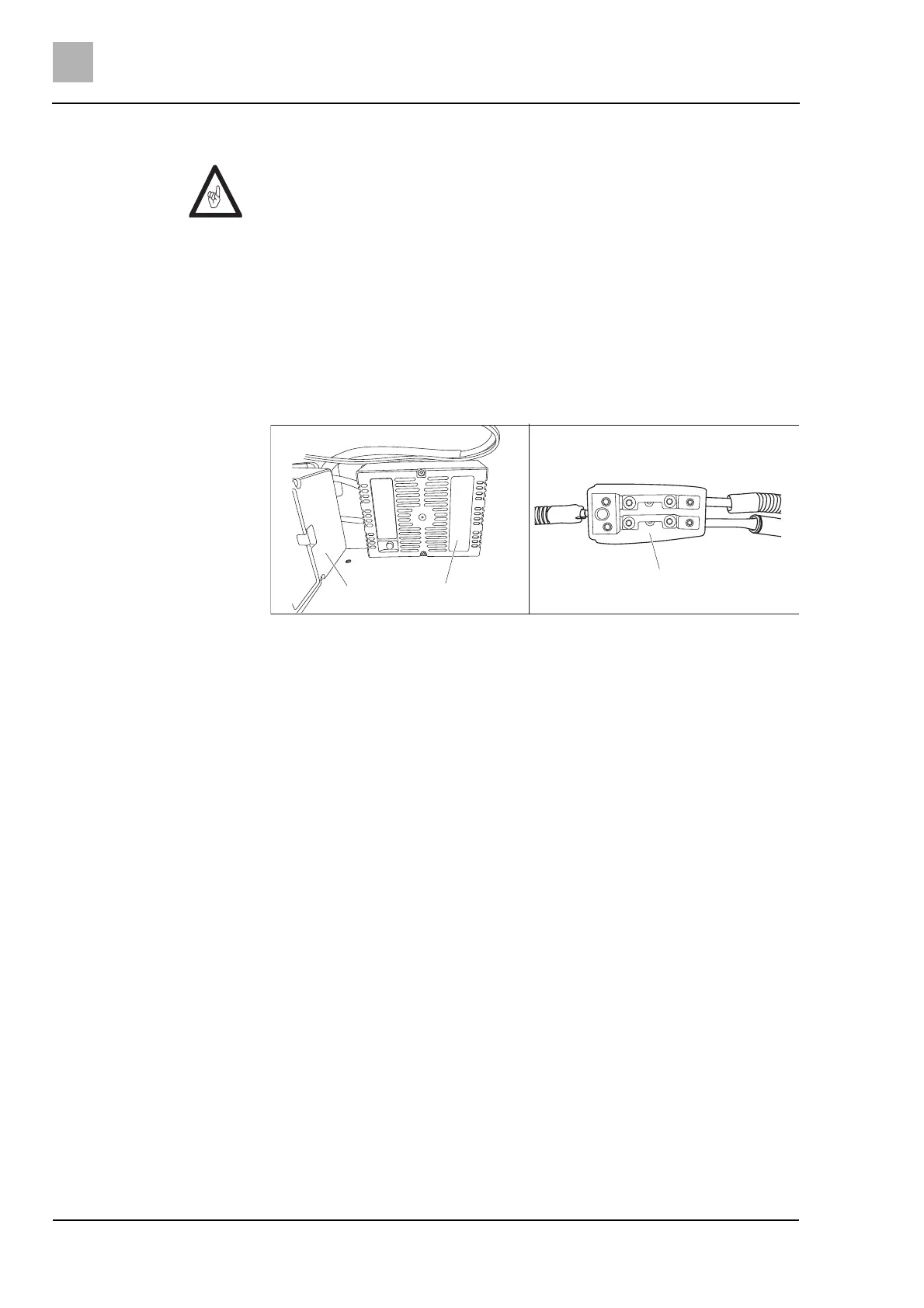

Fig. 47 230 V automatic circuit breaker and charging unit
1 230 V automatic circuit breaker
2 Charging unit
3 Main fuse (Two 40 A strip fuses)
