48 Motorcaravan - 09/21-0 - GLO-MJ22-00EN
Access ladder Always use the access ladder provided as standard to access the overcab
bed.
Attaching:
Hook the access ladder onto the pop-up roof with the two brackets.
Closing the pop-up roof
Open a door at the vehicle.
Check whether the locking mechanism are secured by the magnets (Fig.
37,3).
Use the pulling devices (Fig. 36,3) to pull the pop-up roof (Fig. 36,2) down-
wards.
Loosen the locking lever (Fig. 36,1) from the magnet (Fig. 37,3) and attach
it into the catch (Fig. 37,1).
Turn the twist grip (Fig. 37,2) of the locking mechanism clockwise until the
locking mechanism is fastened.
Fold the twist grip (Fig. 37,2) upwards.
Close the securing belts (Fig. 32,1).
7.13 Additional seat
The rear two-seater bench seat in the vehicle can be converted into a three-
seater bench seat. The third seat is under the lid of the chest.
The access ladder is not intended to be leaned on, but may only be used
when suspended.
Observe the other safety instructions in the accompanying manufacturer's
instruction manual.
Before closing the pop-up roof open at least one door of the vehicle. Mate-
rial damage may otherwise occur through excess pressure.
When closing the pop-up roof ensure that the cloth bellows are not
clamped in.
Ensure that the locking levers (Fig. 36,1) are attached to the magnet at the
top.

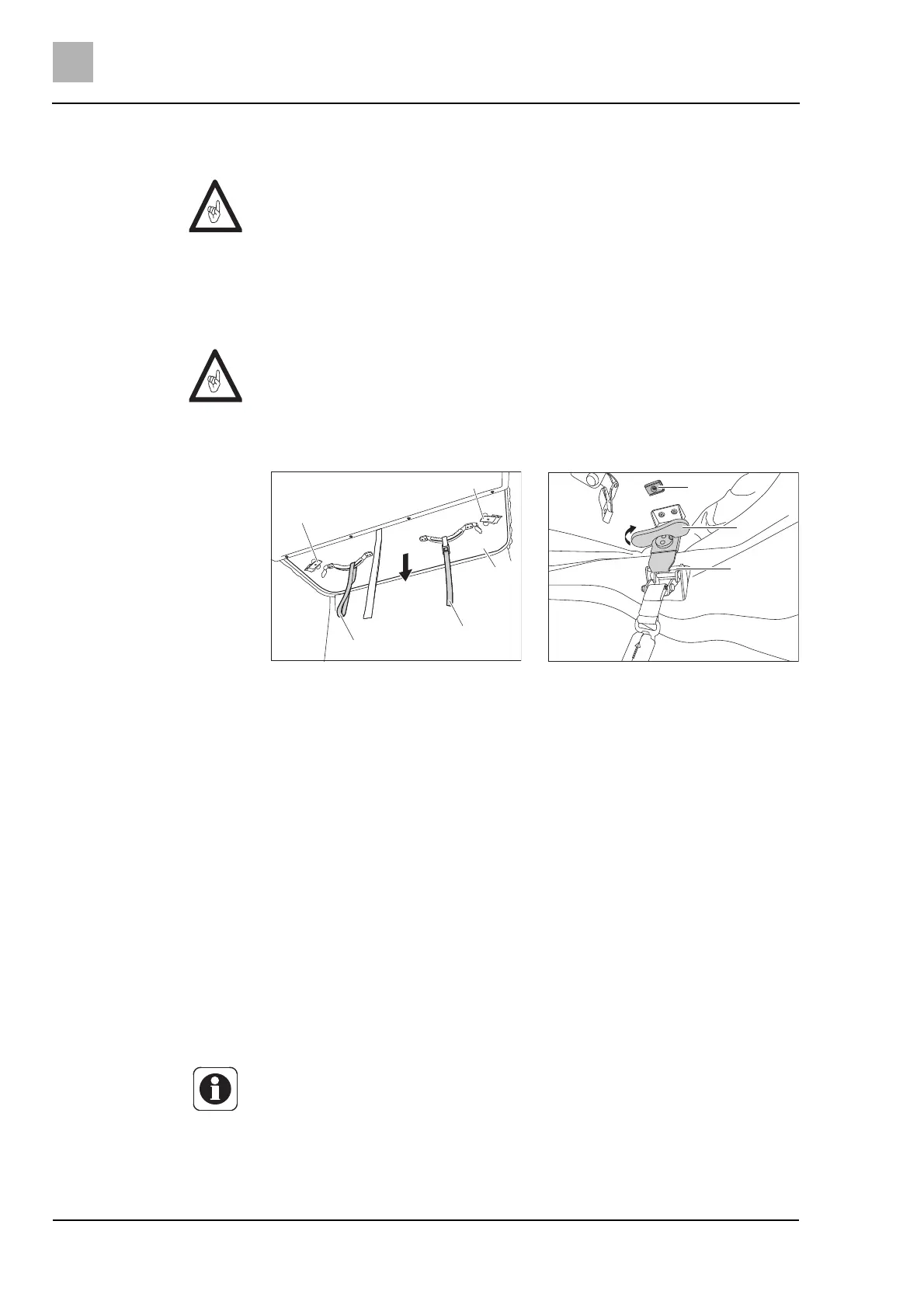

Fig. 36 Pulling the pop-up roof down-
wards
Fig. 37 Tensioning the locking mecha-
nism
3
3
2
1
1
2
3
1
The conversion from a single seat to a two-seater bench is done in the
same way.
