9.5 PC220 control panel
Control panel The control panel is located above the bench seat in the living area. It serves
to control the electric power supply and provides an overview of the device
states.
Further information can be obtained from the separate instruction manual.

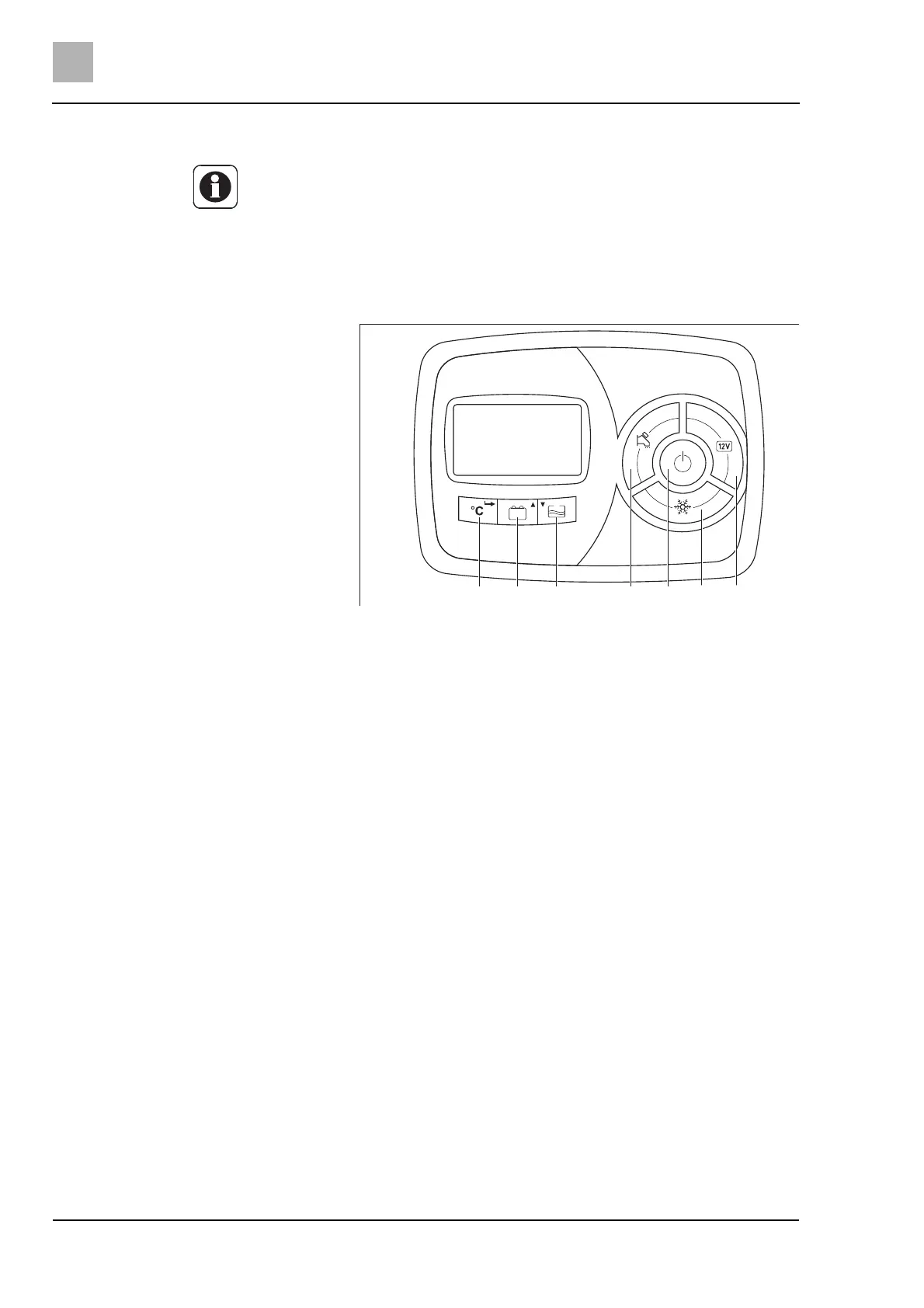

Fig. 52 Control panel main display
1 TEMP/PROG button for monitoring the indoor and outdoor temperature and for
programming the system
2 Button for monitoring the living area and vehicle battery voltage as well as the pro-
gramming
Guide values (not during the charging process):
12.9 Volt = fully charged
12.6 Volt = 75 % of the charge
12.3 Volt = 50 % of the charge
3 Button for monitoring the level of the fresh water tank as a "%" and the program-
ming
4 Button for activating the water pump
5 Main button On/Off
6 Compressor refrigerator
7 Button for activating the lighting
