4.7 Single Axis Gimbal Camera
4.7.1 Single Axis Gimbal

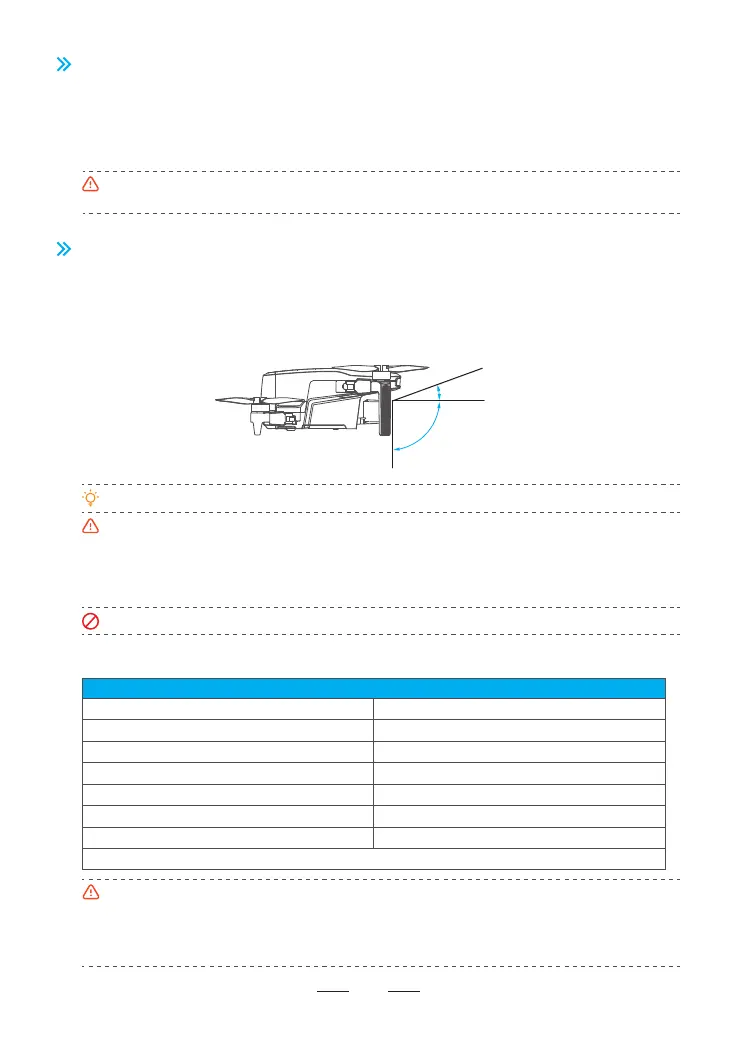

The Atom SE camera is mounted with a single-axis gimbal, to adjust pitch angle freely from +20°
to -90° (horizontal direction is 0°).
The angle of the gimbal can be adjusted by scrolling the left thumbwheel of the remote controller.
The gimbal will be recovered to -9° automatically after each startup.
Avoid collision and moving the lens by force, for the gimbal contains precise parts.
Make sure the gimbal has no foreign matters and lens is free from dirt before takeoff.
The gimbal is connected to the drone through elastic and shock absorption support, to eliminate
camera vibration. Do not pull the gimbal by force. For any damage of shock absorption support,
please timely contact the after-sales department for repairing.
Do not bind or paste any object on the gimbal. Otherwise, it may damage the drone.
4.7.2 Camera
Sensor brand: SONY
Effective pixel: 12MP
FOV: 118°
ISO range: 100~6400
Memory: Micro SD card
Picture size: 12MP
Video specification: 4K@30fps; 2.7K@30fps; 1080P@60/30fps
Video format: MP4
Sensor size: 1/3"
Aperture: F2.2
Focus range: 3m ~ ∞
Shutter range: 1/30~1/25,000s
Shooting distortion: < 1% (after calibration)
Picture format: JPG/JPG+RAW(DNG)
Code: H.264
Basic Parameters
Do not touch the lens after recording for a long period of time to avoid scald.
Do not record video when the drone is not flying; otherwise the drone will trigger overheat
protection.
The sensor will crop out the edges at 1080P/60fps, it's simply capturing a central section of what the
full-frame sensor would capture, and FOV is about 66°.
0°
20°
-90°
4.6 Flight Data
Atom SE supports recording of flight data. User can view the data in App.
“Flight record” can display the basic data for each flight of user.
“Flight log” can record the detailed flight data of user. For any abnormal circumstance in flight,
user can report it in App and, if necessary, upload the flight log to seek for assistance.
All flight data are stored in user’s mobile device. No flight data will be acquired by the Company,
except for the data uploaded by user to the cloud platform.
