10.1.6 Unhooking the control panel
To make assembly e.g. installation of a charging pump easier, the control
panel can be unhooked.
1. Fold the control panel (KSF) down.
2. Unhook the straps on the left and right of the KSF.
Caution
Hold the KSF to make sure it does not flop forwards.
3. The KSF can be pulled out to the right.
4. Unhook the complete KSF to the right.
Important
Make sure that the KSF can be set down safely in an appropriate
place.
10.1.7
At the end of the maintenance work
Danger
Risk to life due to explosion, fire or escaping flue gas.
Before commissioning the boiler, the parts of the system
through which fuel and flue gas flow must be checked for leaks.
If there are any leaks in the pipelines, the seals must be
replaced. If there are any leaks due to defective components,
the components in question must be replaced.
After finishing the cleaning work, re-install the heat exchanger and
burner.
Check the nominal heat load and exhaust gas values.
10.2 Maintenance messages
10.2.1
Maintenance code table
Servicing code Maintenance description
1:Burner hours run Burner operating hours exceeded
2:Number of burner
starts
Burner starts exceeded
3:Maintenance interval Maintenance interval exceeded
10.2.2 Operating phases of the Control Centre LMS
The operating phases are displayed after the information key has been
pressed.
Phase number
Display Operating state Description of function
STY Standby (no heat demands) Burner on stand-by
THL1 Fan start-up Self-test for burner start and fan start-up
THL1A
TV Pre-purging time Pre-purging, fan deceleration time to starting load speed
TBRE Waiting time Internal safety tests
TW1
TW2
VDE Ignition phase Ignition and start of safety time for flame formation, ionisation
current build-up

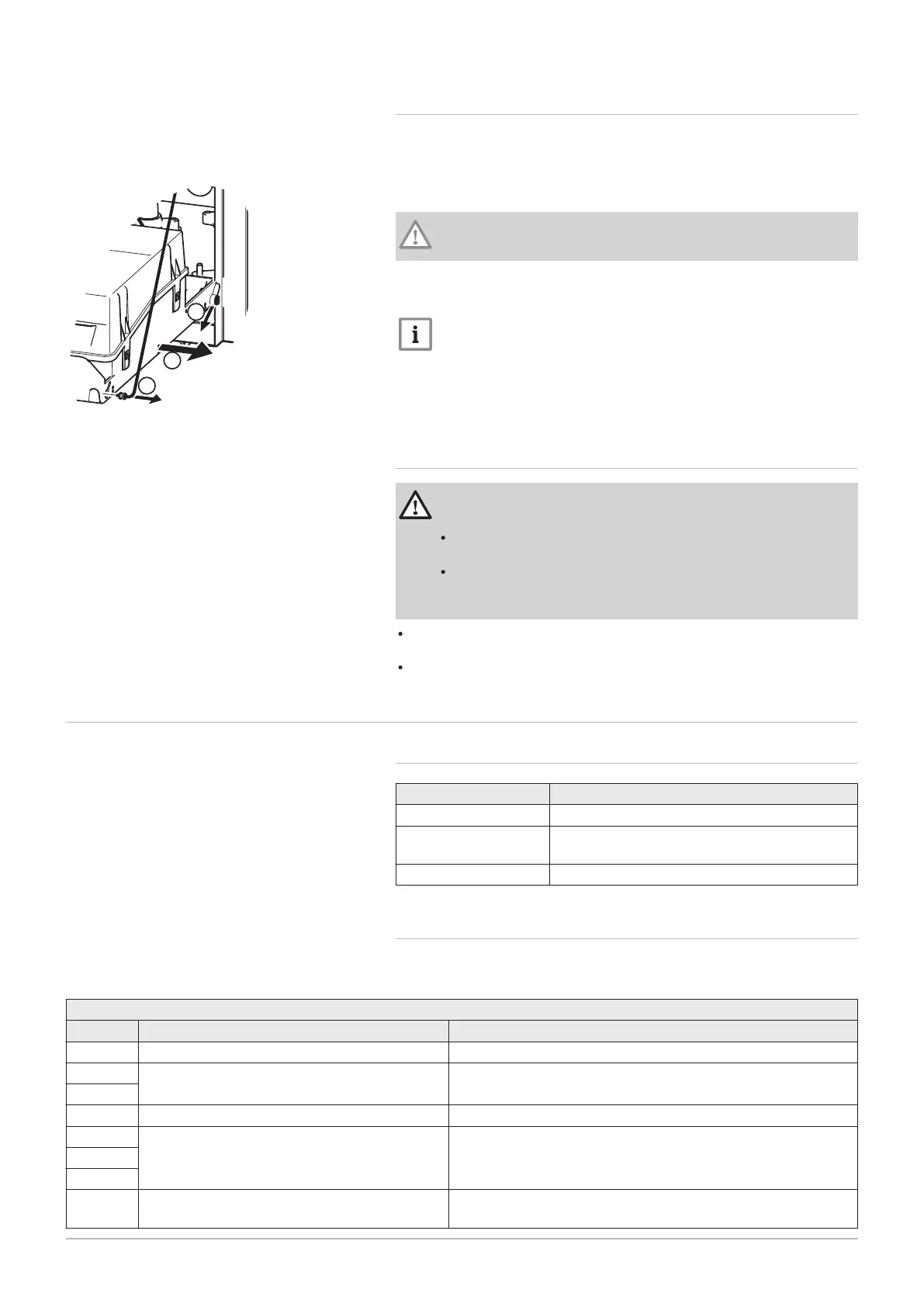

Fig.35 Unhooking the control panel
10 Maintenance
7703046 - 01 - 23072018 Paramount five 30 – 115 141
