Potterton Paramount five 80 - Total Dynamic Head Paramount

Temperature [°C] Resistance [Ω]
15 15699
20 12488
25 10000
30 8059
35 6535
40 5330
45 4372
50 3605
55 2989
60 2490
65 2084
70 1753
75 1481
80 1256
85 1070
90 915
95 786
100 677

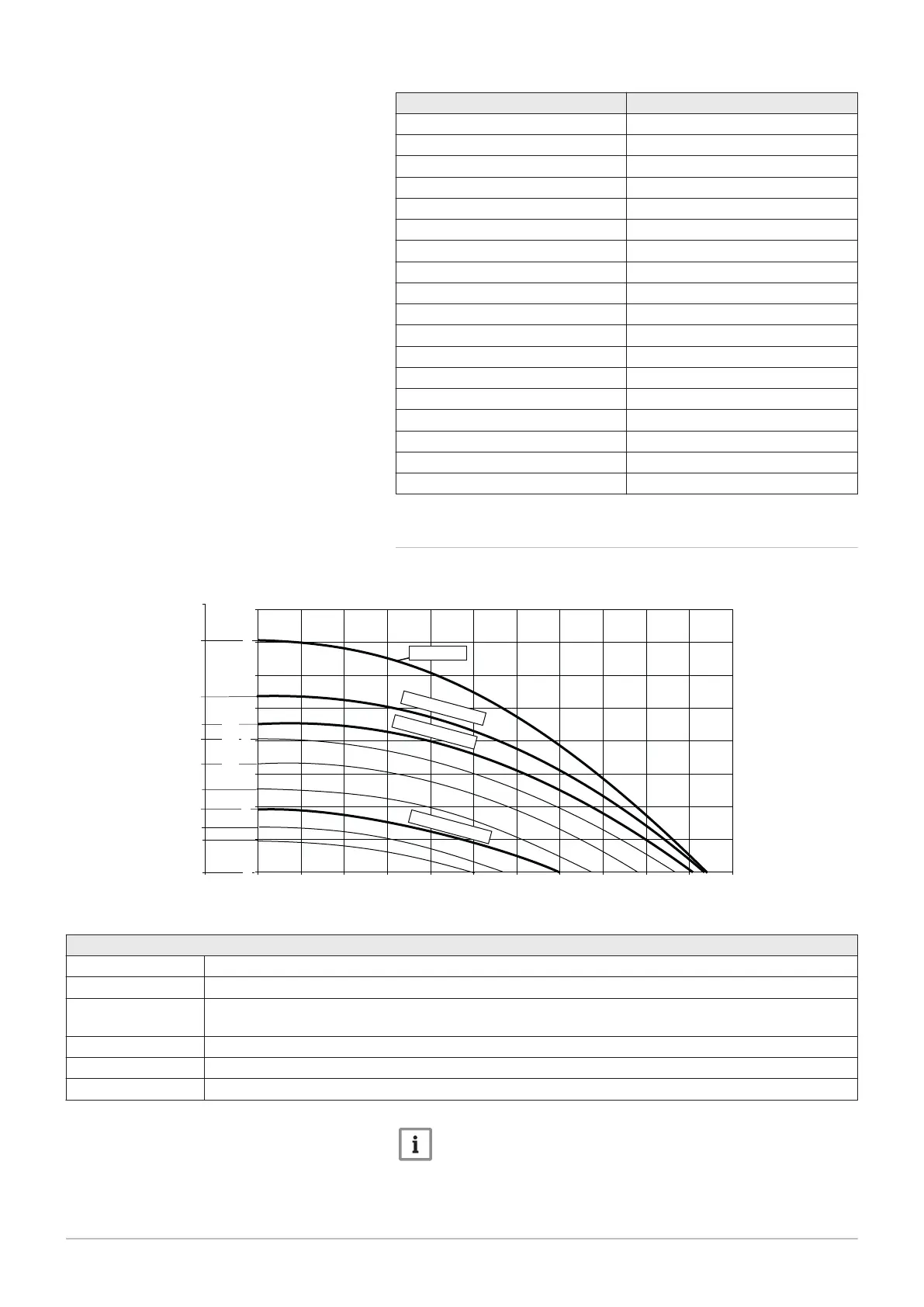

3.2.5 Total dynamic head Paramount
Fig.1
Total dynamic head Paramount 30 - Paramount 40
Wms [kg/h]
0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200
100%
80%
67%
60%
0
1
2
3
4
5
6
7
8
50%
40%
30%
20%
Rfh [mWS]
Dmax 1
Rfh (100%)
Dmin 1/2
Dmax 2
10%
Pst
RA-0000195
Key:
Dmax 1 Paramount 30 (max.)
Dmax 2 Paramount 40 (max.)
Dmin 1/2 Paramount 30 (min.)
Paramount 40 (min.)
Pst Pumping stage
Rfh Total dynamic head
Wms Water mass flow
Important
The select min. and max. values are controlled via the program
numbers for minimum pump speed and maximum pump speed.
