Potterton Paramount five 80 - Control Panel and Operation

Paramount 30/40 Paramount 50 - 115
1 Ionisation electrode 1 Air vent
2 Ignition electrodes 2 Mixing tube
3 Flame inspection window 3 Ignition and ionization electrode
4 Flow sensor 4 Flame inspection window
5 Air vent 5 Water pressure sensor
6 Mixing tube 6 Siphon
7 Air intake silencer 7 Flue gas adapter with inspection apertures
8 Gas injector 8 Ignition transformer (under the lid)
9 Fan 9 Air intake silencer
10 Water pressure sensor 10 Gas jet
11 Siphon 11 Fan
12 Gas pressure monitor 12 Gas valve
13
Extension module EWM
1)
13
Pump replacement pipe
1)
14 Flue gas adapter 14 Control LMS
15 Inspection openings 15
Extension module EWM
1)
16 Flue gas pipe 16 Cleaning opening
17 Gas valve 17 Gas pressure monitor
18 Gravity lock 1) Accessories
19
Connection 2. heating circuit
1)
20 Control LMS
1) Accessories

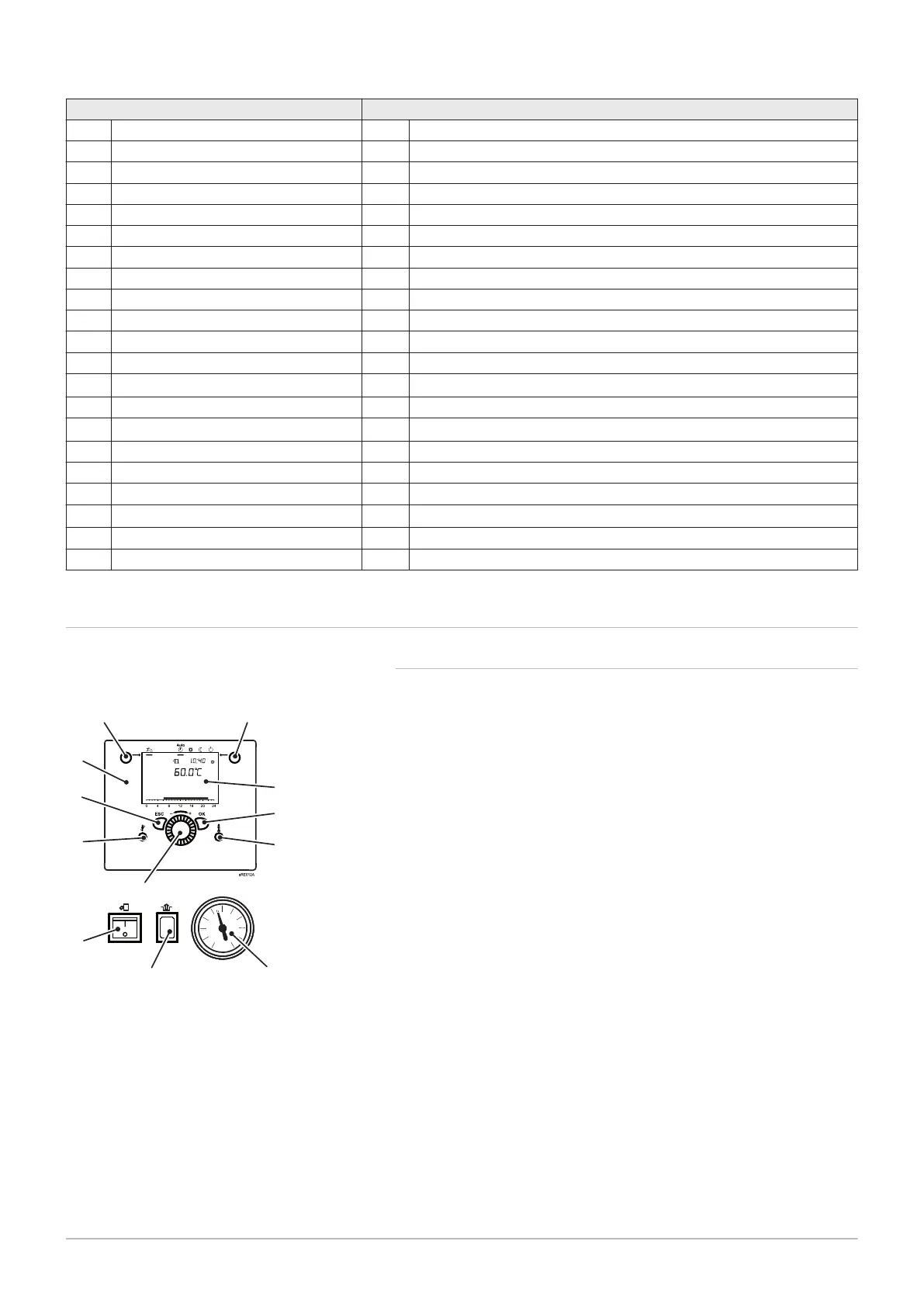

4.2 Control panel description
4.2.1 Operating elements
1 Regulator operating unit
2 Operating mode key, heating mode
3 Operating mode key domestic water mode
4 Screen
5 OK key (acknowledgement)
6 Information key
7 Control knob
8 ESC key (cancel)
9 Chimney sweep key
10 ON/OFF switch
11 Release key burner control
12 Pressure gauge
Fig.8 Operating elements
1
2
3
4
5
6
7
8
9
10
11
12
XXXXXXXXXXXXX
4 Description of the product
7703046 - 01 - 23072018 Paramount five 30 – 115 25
