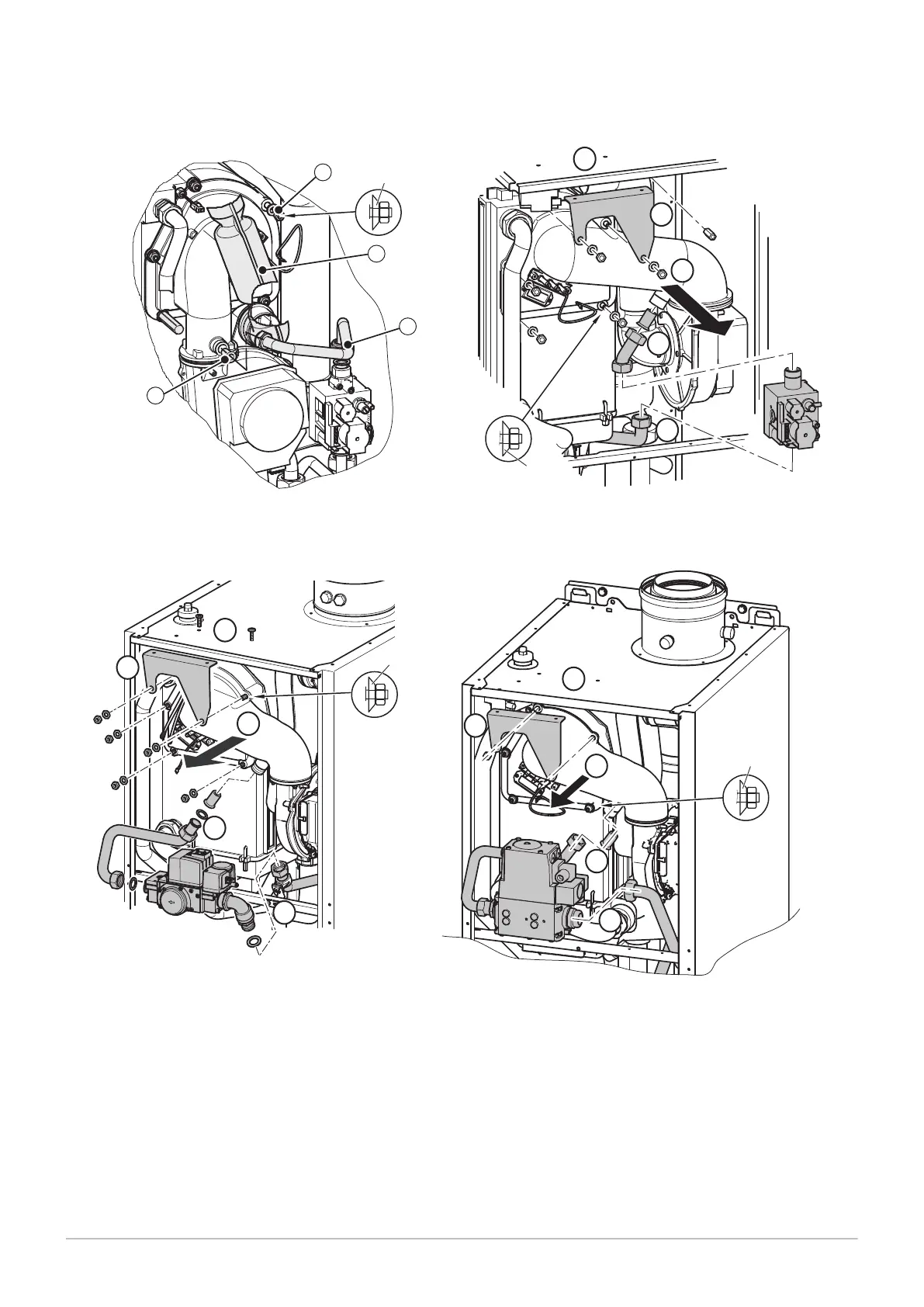

Fig.37 Removing the gas burner
4
6
5
8
4
6
5
8
9
9
4
6
5
8
9
Paramount 50/60
Paramount 80 Paramount 95/115
RA-0000480
7
5
6
8
Paramount 30/40
A
A
A
A
A Elastic washer
1. Disconnect the electrical connection cables to the fan at the coupler.
2. Pull the air hose off the fan.
3. Pull the connector off the electrodes.
4. Undo the attachment screw for the air intake silencer at the top of the
Paramount.
5. Remove the air intake silencer.
6. Loosen the screw connections of the gas connection pipe at the
mixing tube and the gas valve.
7. Remove the gas connection pipe and the gas nozzle.
8. Loosen the 5 fastening screws at the mixing tube/heat exchanger.
9. Remove the bracket.
10. Pull the burner together with mixing tube and fan forwards and out.
10 Maintenance
144 Paramount five 30 – 115 7703046 - 01 - 23072018
