(983) 0000-GB AUSLEGER
GB
- 28 -
PLOUgH-TraiLing iMPLEMEnTs
Optional equipment

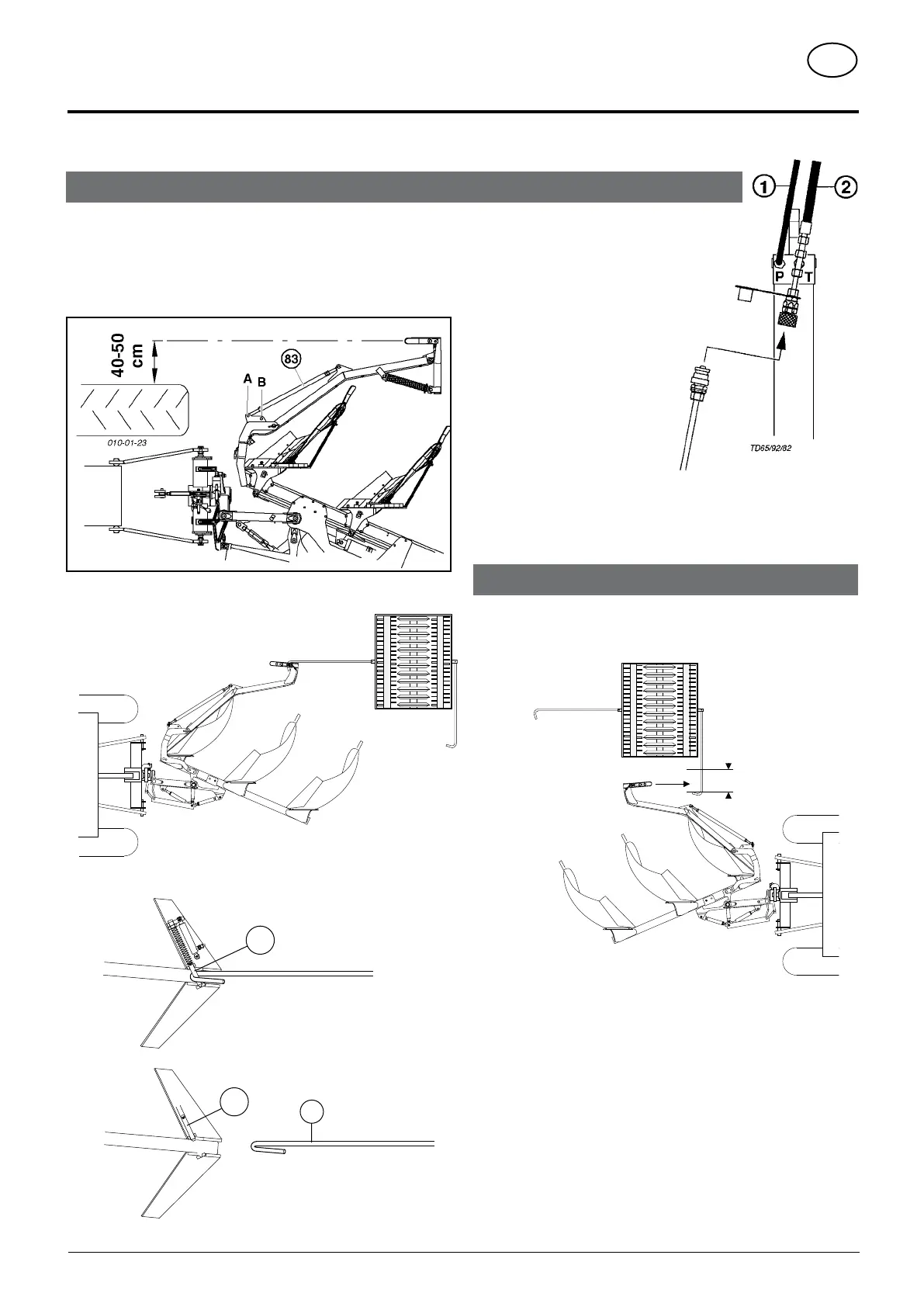

Extension arm with hydraulic releasing device for packer and trailing implements
• A double-action control unit is necessary on the tractor.
• The extension arm is fitted to the main frame.
• A T screw fitting with a plug-in coupling sleeve is fitted to the return line (T) on the plough turning cylinder.
TD65/92/85�
82�
81v�
81e�
TD65/92/83�
TD65/92/84�
30cm�
Working position
• Pin strut (83) in the front boring
(A).
• The distance (40 - 50 cm) to the
tractor wheel is also set with the
strut (83).
Transport position
• Pin strut (83) in the rear boring
(B).
With this the extension arm is swivelled in to the plough frame.
Working with a trailing implement
For attachment a latching device is fitted to the trailing implement
which lies at right angles to the direction of travel.
Engaging the trailing implement
• Bolts in the locking position (81v).
Switch the servo-valve briefly to „lift“ to lock the bolts.
• With the extension in the outer range (30 cm) hook on to the trailing
implement’s latching device.
Releasing the trailing implement
• Unlock the bolts hydraulically (81e).
Switch the servo-valve briefly to „lower“ to unlock the bolts.
