Pottinger SERVO 45 - Presetting the Plough; Before Driving to the Field

0700-GB VoREINstELLuNG (983)
- 9 -
GB

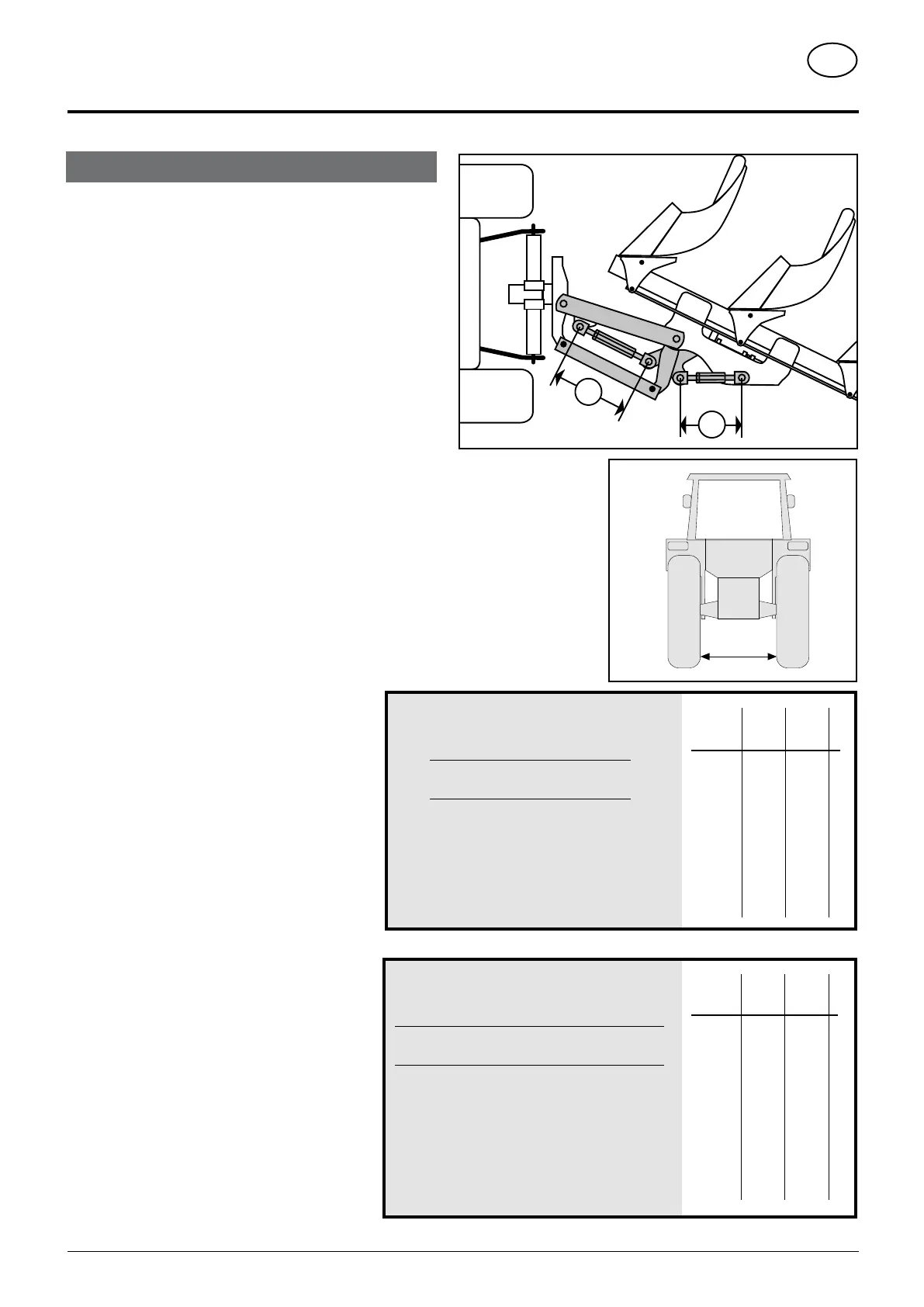

PrEsETTing THE PLOUgH
Before driving to the field
SERVO
SERVO NOVA
see next page
SERVO PLUS
SERVO NOVA PLUS
1. Carry out basic setting according to table B, with average
cutting width position.
2. Carry out a more accurate setting when in use.
Setting both the spindles (ZP, VF)
Drawing point (ZP)
Backfurrow (VF)
• Setting depends upon the inside distance between the tractor
wheels (RA) and the set furrow width.
- Further Information on the drawing point and backfurrow in
chapter "OPERATION".
Table-B
for
SERVO PLUS
RA ZP VF
(mm) (mm) (mm)
800 535 496
900 519 487
1000 501 479
1100 484 472
1200 466 465
1300 448 459
1400 429 453
1500 411 448
1600 - -
1700 - -
RA
TD65/92/35
Table-B
for
SERVO NOVA PLUS
RA ZP VF
(mm) (mm) (mm)
800 - -
900 - -
1000 526 491
1100 510 483
1200 493 476
1300 475 469
1400 457 462
1500 439 456
1600 420 451
1700 401 445
1800 - -
TD126/98/07
VF
ZP
