Pottinger SERVO 45 - Hydraulic Connection; Preparations on the Plough

(983) ANBAu 0600-GB
GB
aTTaCHing TO THE TraCTOr
- 7 -

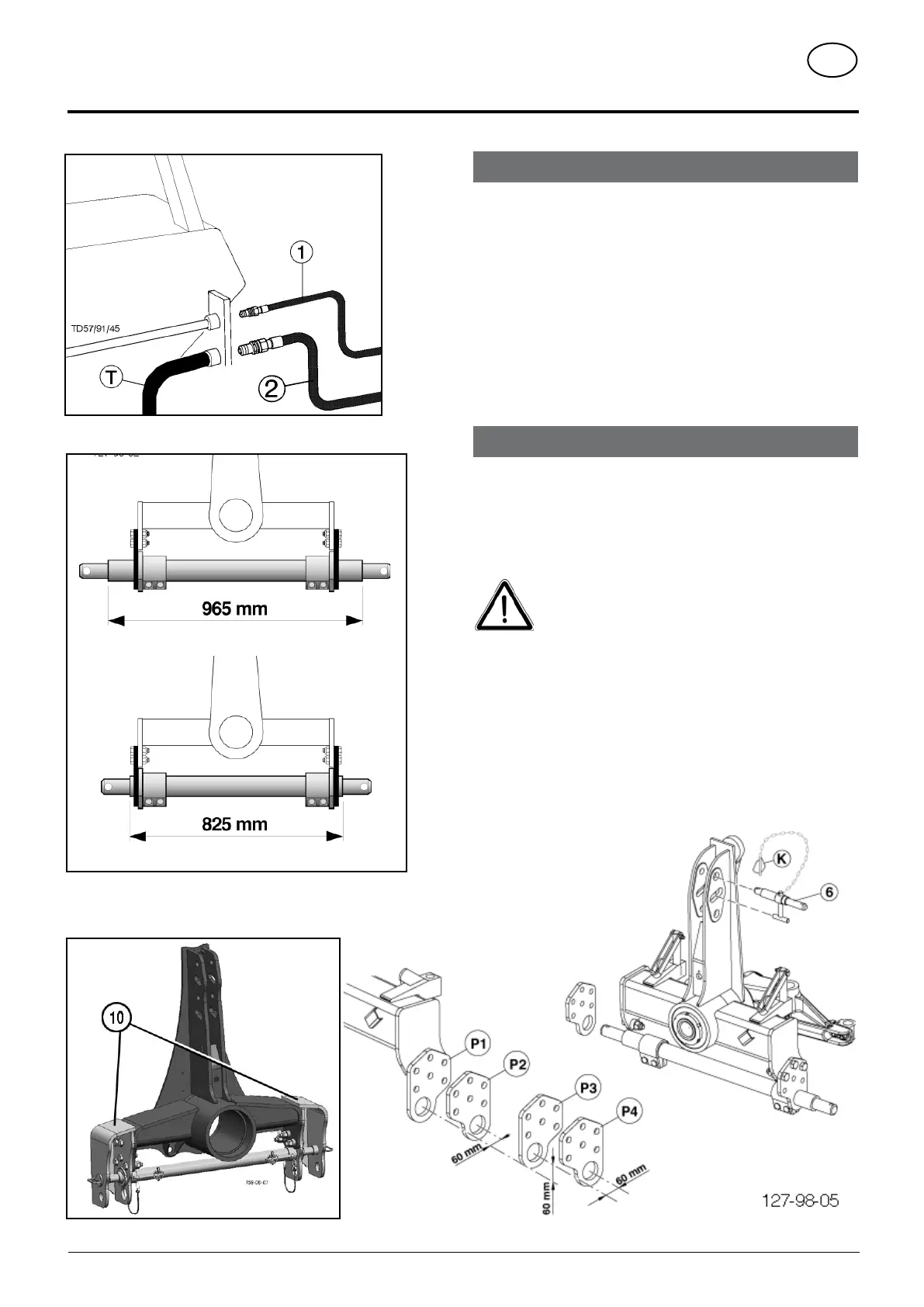

Hydraulic connection
• If the tractor has a single-action servo-valve only, it is absolutely
necessary to have an oil return line (T) professionally installed.
- Connecting pressure line (1) and oil return line (2).
1 Single-action control unit
or
1 Double-action control unit
+ 1 Double-action control unit
Preparations on the plough
Mounting axle (965 mm / 825 mm)
• Use the correct mounting axle
- see also spare parts list.
Safety hint:
For ploughs with 6 shears the reinforced mounting axle
(10) must be used otherwise risk of breaking exists
• Carry out adaption to the tractor´s lifting gear
- both helical plates can be fitted in 4 different positions (P1, P2,
P3, P4)
Upper link pins
Position upper link pins (6) as per diagram
- secure with linch pin (K).
