Equipment Description

Circuit Breaker Monitor

01.4IB.48070A

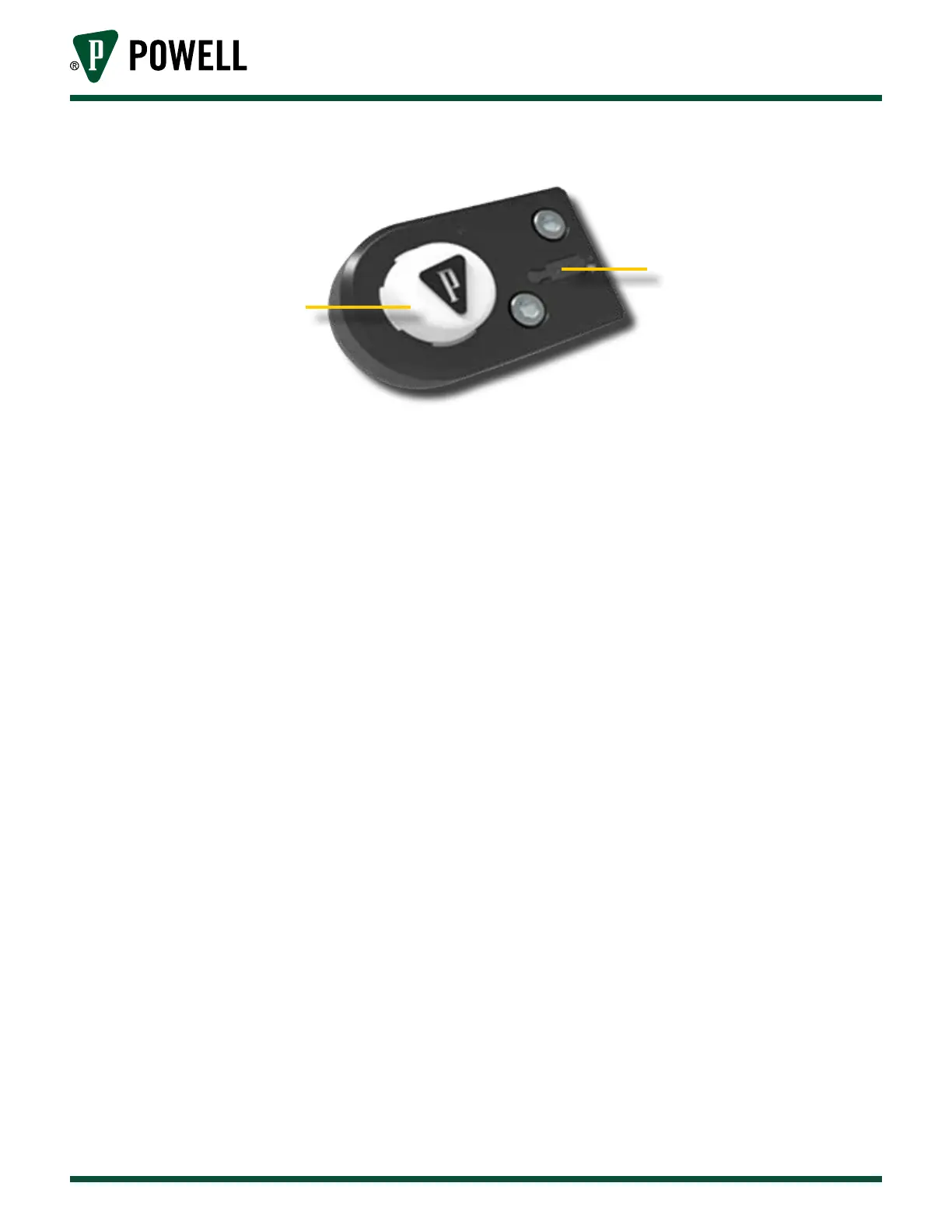

Figure 11 Breaker Status Indicator

a. Mini-USB Port

b. Embedded LEDs

External Indication Module LED Indications

• Slow pulse "green" means the breaker is "healthy" and fully operational.

• Slow pulse "amber" means a low priority warning has occurred that is just outside of normal

operation.

• Slow pulsing "red" means a high priority alarm and may directly affect circuit breaker operation.

• Fast "amber" strobing indicates the IR channel is not detected.

This fast "amber" strobing may occur when opening a breaker door or if something is in the way

of the IR path.
