Installation
Powered by Safety
®
01.4IB.48070A

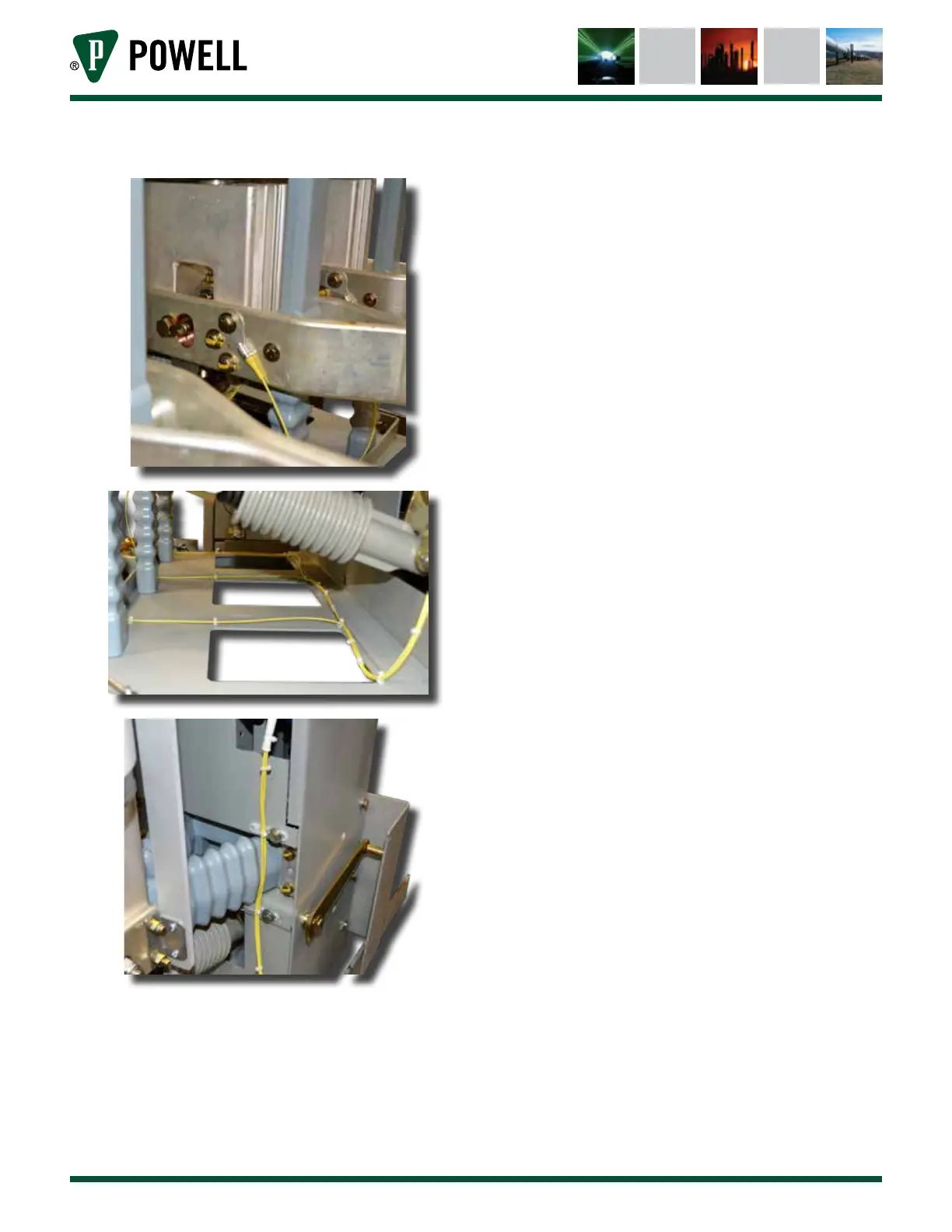

Figure 14 Fiber Routing f. cIrcuIt BreAker MonItor WIrInG
Figure 15 shows a typical wiring diagram
for Circuit Breaker Monitor connection to
a circuit breaker. Upon wiring the Circuit
Breaker Monitor into the circuit breaker, the
hall effect sensor shall be plugged in with the
motor, trip coil, and close coil wires running
through the sensor. The device requires
control power from the circuit breaker it
is installed into in order to operate. The
battery only provides power to maintain
memory. User interface software, BreakerView,
provides dashboards and performance data
displays for ease of performance trending,
diagnostics and history of a circuit breaker.
For networked CBMs, BreakerView provides
status of each networked CBM. If so desired,
BreakerView can be launched within a SCADA
system. Alternatively, an individual CBM
can be connected to by use of a laptop with
BreakerView application connected via USB
cable to the EIM.
