POWER ELECTRONICS
SD700 – TOUCH-GRAPHIC DISPLAY
APPLICATION MANAGEMENT
17
E
NGLISH
 Custom Visualization Floating menu: It is accessed doing a tap-and-hold on the Custom
Visualization screen. It manages the variable configuration on the screen. The user can add,
edit or delete variables on the Custom Visualization screen.

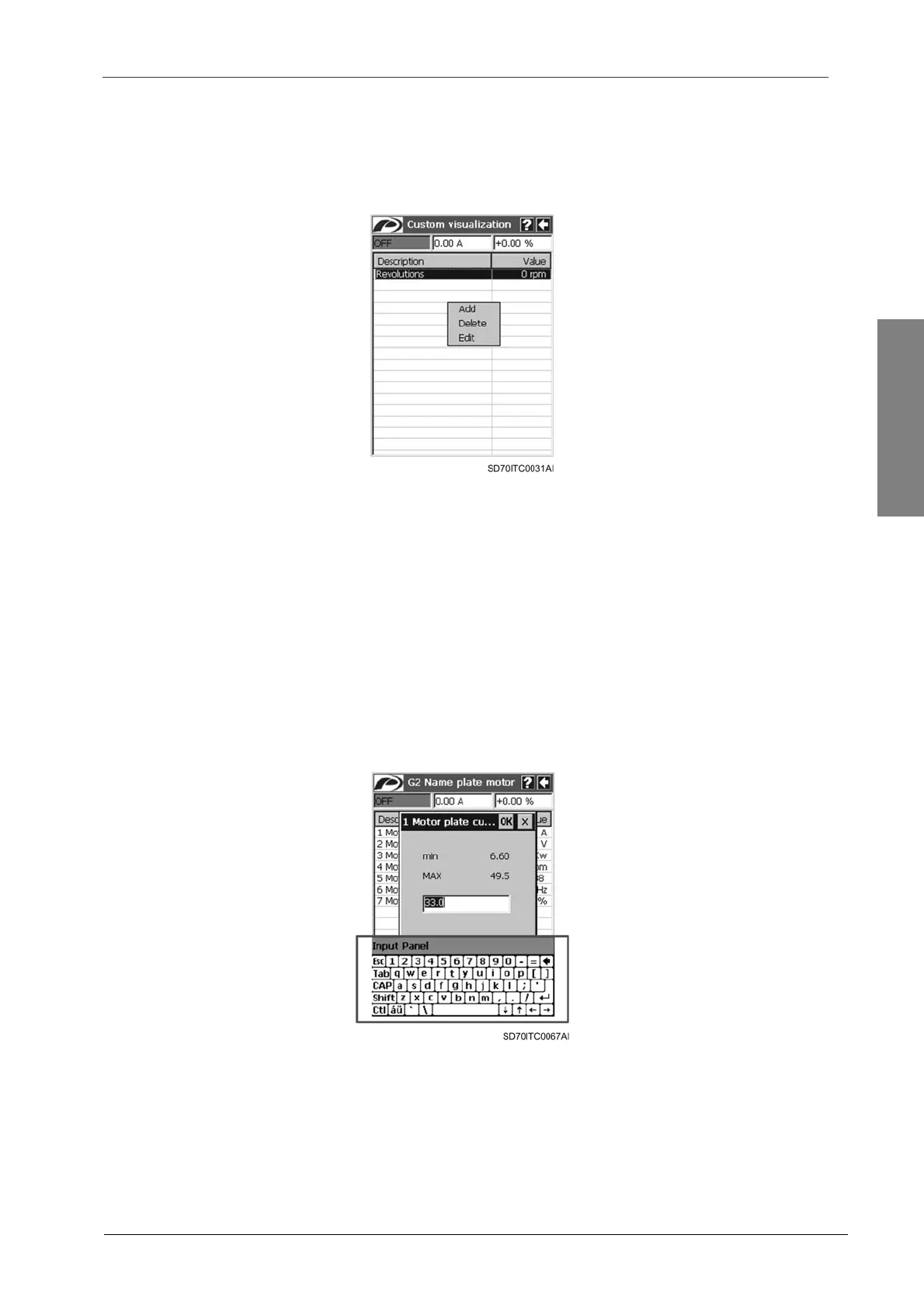

Figure 2.3 Custom visualization floating menu
2.1.3. Virtual Keyboard
The virtual keyboard appears automatically whenever the user taps on an edit box. This keyboard
hides itself when the user closes the configuration dialogue window or taps into another non-edit-
box control.
Whenever the user has to write any text or value in any field of any configuration dialogue
window, he will use the virtual keyboard.
The default virtual keyboard which always appears when tapping on an edit box is shown in the
next figure:
Figure 2.4 Default virtual keyboard
