Power Flame C2-OA - Control Panel Information

C7
Rev.304
J. The standard pump normally supplied is 19 GPH for On-Off or Modulating
and 40 GPH for Fixed Air Low Fire Start, Low-High-Off and Low-High-Low
operation. Optional pumps are available which, depending on model specified,
could be as high as 70 GPH. Refer to information shipped with the burner
and/or consult the factory for specifics.
K. The standard pump normally supplied is 40 GPH for Low-High-Off and
Low-High-Low, 70 GPH for On-Off and modulating operation. Optional
pumps are available for Low-High-Off and Low-High-Low which could
be as high as 70 GPH. Refer to information shipped with the burner
and/or consult the factory for specifics.
Control Panel Information

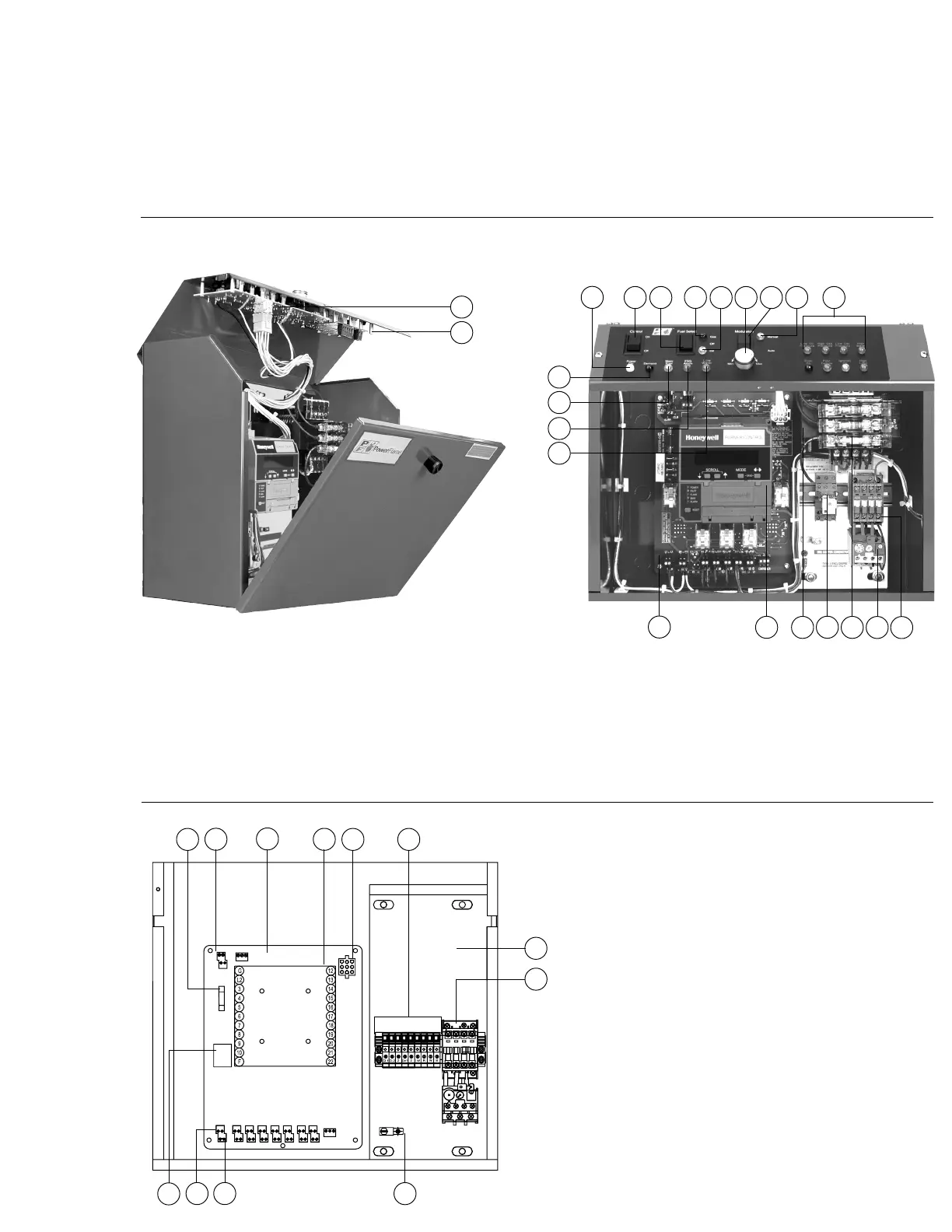

Figure 6
Total Access Control Panel (Patented) Featuring Alpha System™ Circuit Board with Light & Switch Board for a Combination
Gas/Oil Modulating Burner
21
20
1. Replaceable Fuses
2. (L1 Main) Hot 115 Volt Main Power Connection*
3. Main Circuit Board
4. Flame Safeguard Base On Circuit Board
5. Light & Switch Board Connection
6. Terminal Strip for Field Connection
7. Chassis Plate
8. Motor Starter
9. Replaceable Relays- MY2-AC10/120S Only
10. (L1 Fused) Auxiliary Power Connection
(Factory Use Only)
11. (L2) Neutral 115 Volt*
12. Grounding Lug
1. Power On Indicator
2. Control Switch
3. Fuel Changeover Switch
4. Gas On Indicator
5. Oil On Indicator
6. Manual Potentiometer
7. Manual-Auto Select Switch
8. Automatic Mode Indicator
9. Auxilary Light Circuit Board
Indicators
10. Demand Indicator
11. Main Fuel Indicator
12. FSG Alarm Indicator
13. Customer Selected Indicator
14. Main Circuit Board
15. Flame Safeguard Control
16. Stepdown Control Voltage
Transformer
17. DIN Rail Mounted Terminal
Strips
18. Primary & Secondary Fuses
19. Motor Starter
20. Light & Switch Circuit
Board
21. Auxiliary Light Board
Indicators
22. Motor Overloads
2 3 91
11
6
15
16
17
18
7
10
12
13
4
5
14
8
1922
Figure 6A
Alpha System™ Typical Layout Drawing
4
2
1
11
12
5
8
7
6
10
9
3
* L1 Main 115 volt hot incoming power terminal is located
at the top of the circuit board. L2 Neutral 115 volt power
terminal is located on the lower set of terminals at the
bottom of the main circuit board. The L1 Fused terminal
located on the lower set of terminals is for factory use only
and should not be used for incoming power connections.
