-14-
This completes the Setup Assistant procedure. In the following stage all
the remaining functions, such as retract system, brakes and lighting, are
assigned and adjusted where necessary using the servo-matching
function.
5. Output mapping
Since the Setup Assistant does not cover all the functions, Output Mapping
is employed to assign additional functions to the outputs; it is also possible
to shift existing functions to other outputs.

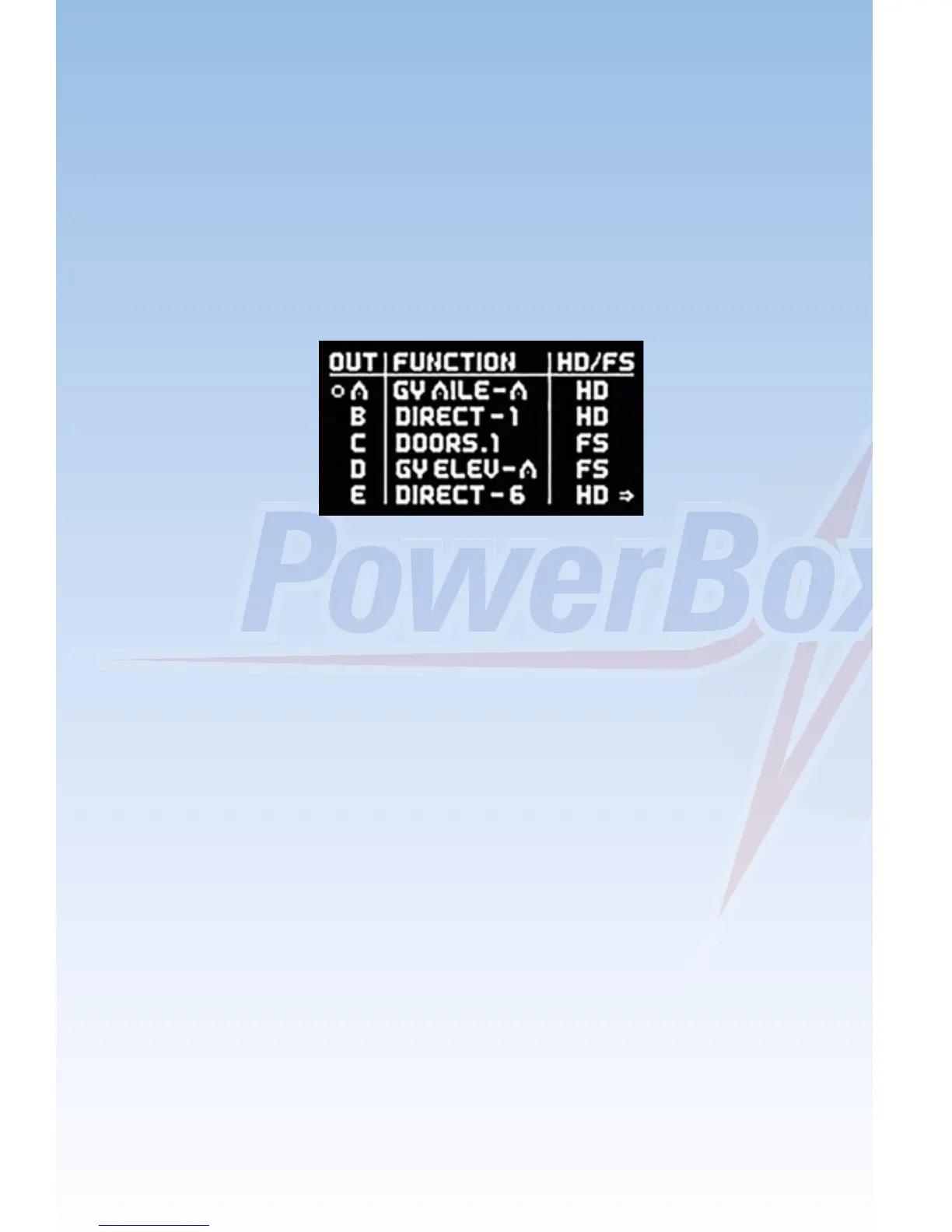

As can be seen in the screen-shot above, the left-hand column shows the
output letter; the centre lists the assigned function or the transmitter
channel; and the right-hand column is used to set each output to Hold or
Failsafe if the radio link should fail.
The following set-up facilities are provided for FUNCTION:
- DIRECT 1 to 18:
Depending on your radio control system, channels 1 to 18 can be output
directly, as they arrive from the transmitter.
Example: at your transmitter the wheel brakes are assigned to channel 9,
and you wish to connect the brakes to output E. Move the cursor to E and
confirm your choice by pressing the SET button. Set the following at E:
DIRECT 9. The servo connected to output E now follows commands from
channel 9 at your transmitter 1:1 - unless, that is, you have made
adjustments using the servo-matching facility.
- GY AILERON, ELEVATOR, RUDDER:
If you select one of these functions, the output is linked internally with the
iGyro output. Two outputs are available for each axis: GY AILE-R, GY
AILE-L, GY ELEV-R, GY ELEV-L, GY RUDD-A, GY RUDD-B.
Each of these axes is individually variable for gain, direction of effect and
gyro function.
To Next Page
