-19-
7. Setting up the door sequencer

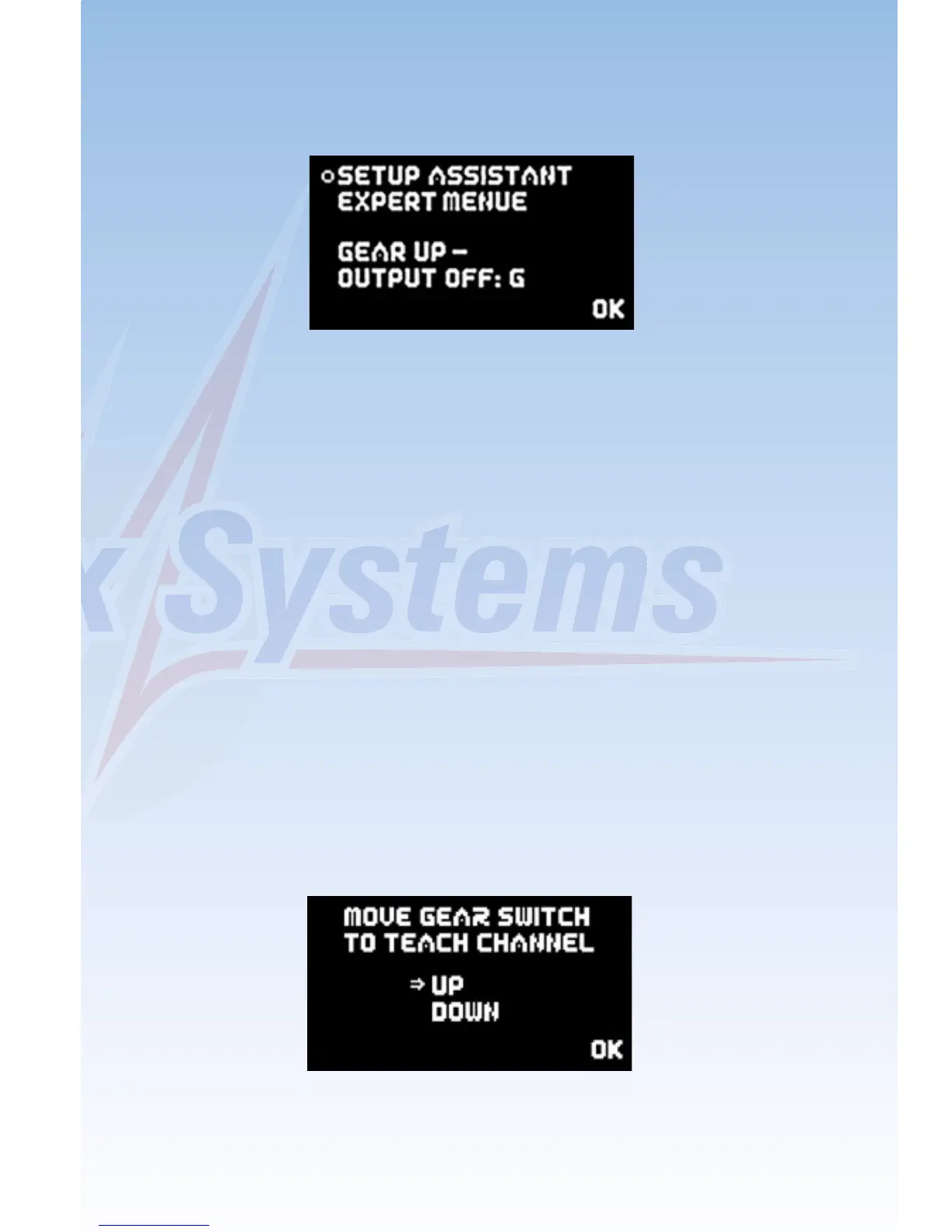

Select the SEQUENCER point at the main menu; this takes you to the
following screen display:
The SETUP ASSISTANT assists you to adjust the sequence of the
undercarriage and the wheel doors in just a few minutes.
The EXPERT MENU provides a very powerful programming interface, with
which you can program highly individual sequences, or alternatively
expand the settings previously entered using the SETUP ASSISTANT.
More on this later.
The Setup Assistant guides you through the settings: on-screen instruc-
tions describe everything that you have to do. These instructions simply
provide supplementary information which cannot be supplied by the
PowerBox itself simply due to the size of the screen.
The recommended programming procedure is as follows: first enter the
basic settings using the SETUP ASSISTANT. At this point the system
setup will be complete for 90% of all models. If you wish to add more wheel
doors or adjust the sequence to cater for other details, this can be carried
out in the EXPERT MENUE.
Access the PowerBox’s Door Sequencer menu, and select the SETUP
ASSISTANT point. You will now see the following screen display:
