PARALLEL MODE OPERATION
Your generator can operate in a dual-generator parallel mode to use the power of two compatible POWERHOUSE
®
PH2400PRi/E generators to provide a combined maximum output of 4400W (4300W continual output). Both
generators must be connected to the correct, corresponding PH24 Parallel Kit (#67164) in order to use parallel mode.
See Identifying the Correct Parallel Kit.

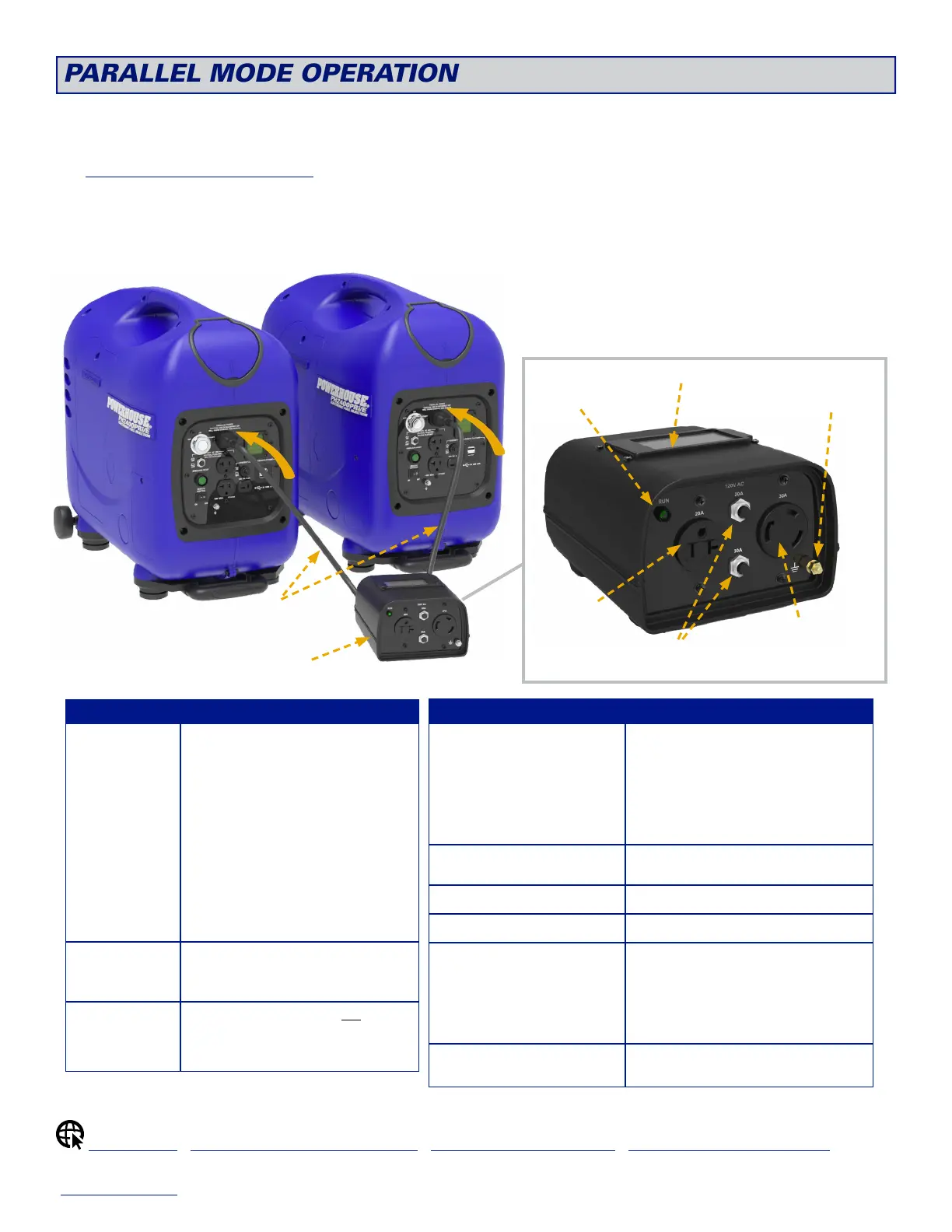

PH2400PRi/E Parallel Configuration
When two compatible PH2400PRi/E generators are operating in parallel, the AC receptacles on the Parallel Kit Box
supply the combined power output of both generators to your appliance(s).
Parallel Power
Cables
Parallel
Kit Box
Run Light
(green)
120V-20A
Receptacle
(5-20)
Circuit Breakers
20A & 30A
Grounding
Terminal
120V-30A Locking
Receptacle
(L5-30)
LCD Display
PH24 Parallel Kit Box
PH24 PARALLEL KIT
Parallel Power
Cables (2)
The cables that deliver power from
the generators to the parallel kit.
• Each power cable connects
the back of the parallel kit to
the parallel power port on the
control panel of each generator.
It doesn’t matter which PH24
power cable you plug into each
generator.
• Do not use any other power
cables, such as from an older PH
kit or dierent brand kit.
Control Panel The front panel of the parallel kit
box that provides the receptacles
and breakers.
Parallel Signal
Cable (1)
Disregard this cable; it is not used by
your PH2400PRi/E generator. It is
used for a dierent POWERHOUSE
®
model.
PARALLEL KIT BOX
LCD Display Displays parallel operating status
information:
• Volts
• Amps
• Frequency
• Watts
• Total Parallel Operating Hours
Run Light (green) Illuminates during normal parallel
operation.
120V-20A Receptacle (5-20) A 120V receptacle for a 20A appliance.
120V-30A Receptacle (L5-30) A 120V receptacle for a 30A appliance.
Grounding Terminal Enables grounding of the parallel kit
before operation.
NOTE. If both generators are
grounded, the parallel kit is already
grounded by a shared ground wire.
Circuit Breakers 20A & 30A Provides circuit protection for the
appliance receptacles.
