M Series User Guide
the Wire length spinbox respectively. The upper drop-down list
allows to choose between metric (international) and American
(Imperial) units. The range of American wire gauges is 6 AWG
to 23 AWG, and of metric wire gauges 0.25 mm
2
to 10 mm
2
.
Maximum cable lengths are correspondingly 3280 ft or 1000 m.
Resistance compensation: clicking Apply sets the cable resistance
value calculated as the correction factor. The fader and its spinbox
assume this value. However, the user can manually modify this
calculated nominal value to obtain, for example, an enhanced LF
response.
6.5.6 Locking
The locking mechanism allows the user to prevent changes to a
whole preset or a part of a preset. The locking interface is divided
in DSP module(s) and macro processing (refer to Section 5.12.4
on page 14 for further information on the logical data section).
Every module needs to be locked separately; the lock status is
preserved with the import/export from/to le and copy/paste
operations. In order to lock/unlock an entire module or parts of
a module:
▶
Access the locking interface

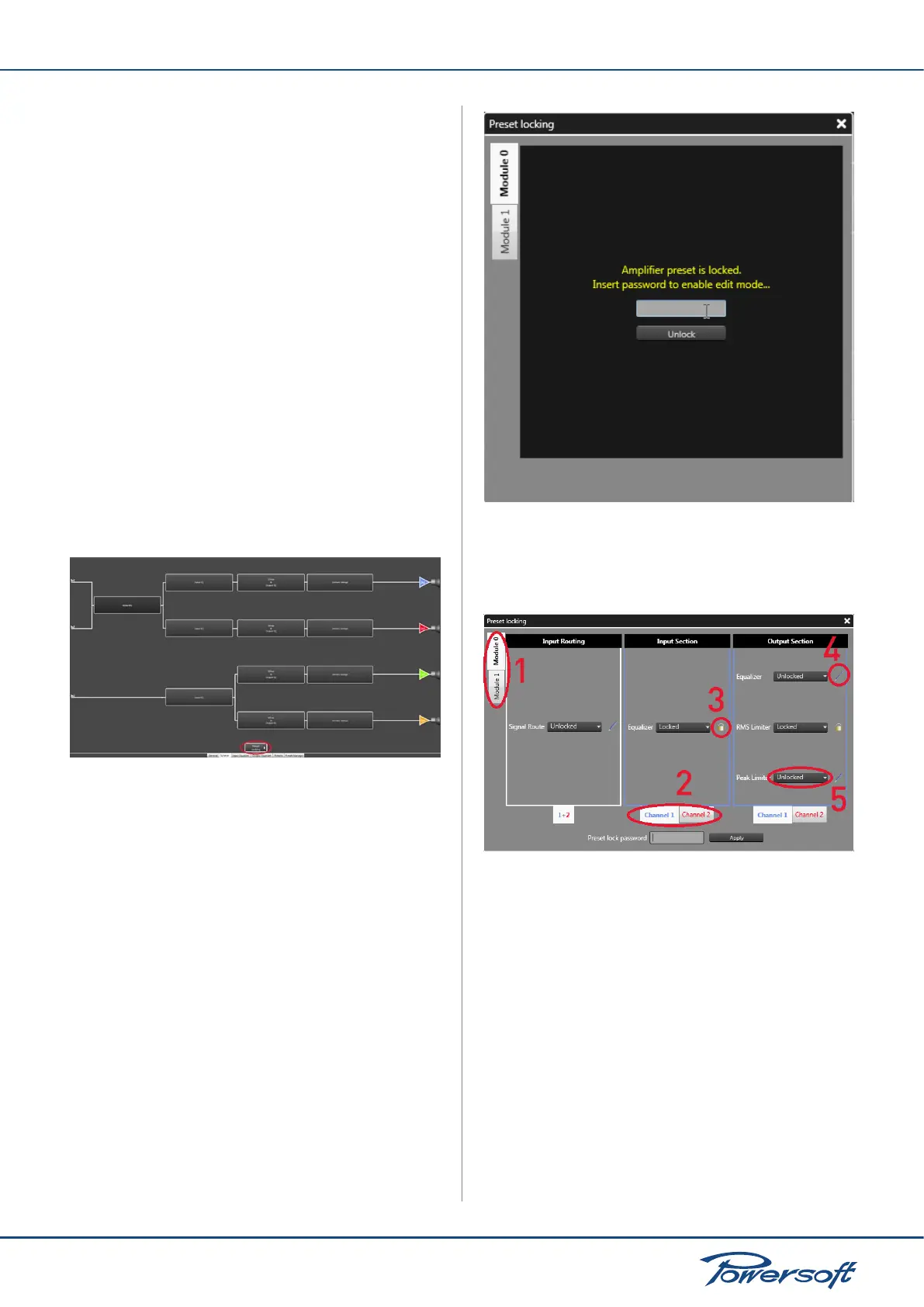

FIGURE 42:
Click on the preset locking button in the layout tab of the
device.
▶
If the module you want to modify is already locked, you need
to insert the unlocking password for that module.
FIGURE 43: Insert the unlock password.
▶
A number of operations are allowed here. Please refer to
FIGURE 44 for an explanation of the various functions and
symbols.
FIGURE 44: Explanation of functions and symbols
1. Select module
2. Select channel for the macro property.
3. A padlock indicates a locked property
4. A pencil indicates a writable property
5. The combo box allows to change the single macro property.
▶
In order to lock the module with the selected layout, insert
the locking password and press the button Apply.
6.5.7 On Board Preset Operations
The preset tab of all M Series devices allows handling of the internal
binary preset of an M Series DSP module.
