24
M Series User Guide

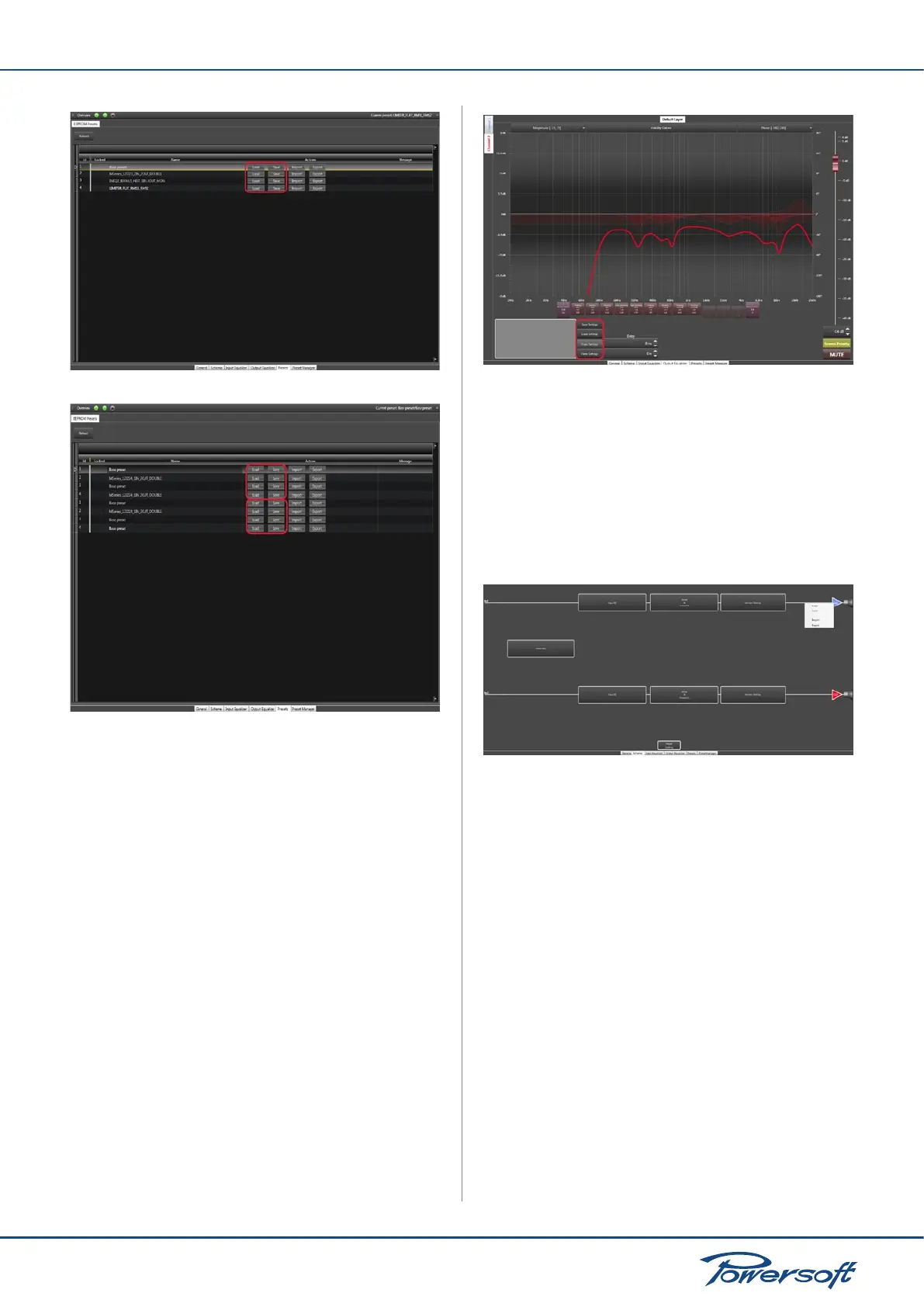

FIGURE 45: MxxD has a single DSP module.
FIGURE 46: MxxQ has two DSP modules; both slots must be recalled
in two separate operations.
▶
SAVE, allows saving of the current DSP processing on the
selected preset slot.
▶
LOAD, recalls the selected preset slot.
WARNING: (re)loading a preset causes a couple of seconds of
interruption of the audio stream.
6.5.8 Copy And Paste Operations
Any paste operation does not affect the DSP binary and its
corresponding structure; therefore, applying data with the paste
command does not lead to audio interruption.
WARNING: any data pasted into a device needs to be saved
in a preset slot, otherwise any turn off/on cycle leads to data
loss.
6.5.8.1 Input/output eq curves
In order to copy/paste an eq curve, copy the source curve with the
dedicated copy function and paste to the destination eq. with the
dedicated paste function.
FIGURE 47: The output eq, there are 4 possible alternatives to handle
the curve.
WARNING: all changes will be lost if the preset is NOT stored on
board before unplugging the unit from the mains.
6.5.8.2 Channels
Copy and paste of the current playing processing setup from/to
the clipboard is possible from the device layout.
FIGURE 48: All possible channel operations are available by right
clicking on the corresponding channel.
Data that can be copied and pasted:
▶
Input eq
▶
Output eq
▶
Limiters
▶
Damping factor control
WARNING: all changes will be lost if the preset is NOT stored
on board before unplugging the unit from the mains.
NOTE: pasting a channel preset le doesn’t modify the internal
structure of a device. For example, a channel copied from a 1 in
/ 2 out conguration doesn’t affect the internal structure when
pasted in a 2 in /2 out processing layout.
NOTE: in the 1 in / 2 out conguration the input eq is copied (or
applied) to both input eq’s. For example, copying the conguration
of both channels (1 in /2 out conguration) leads to pasting the
unique input eq to both channels.
