POWERVAR Security Plus UPS
42
240Vac
CHARGE
PFC AC/DC
BATTERY
DC/DC
DC/AC
LOAD
ISOLATION
TRANSFORMER

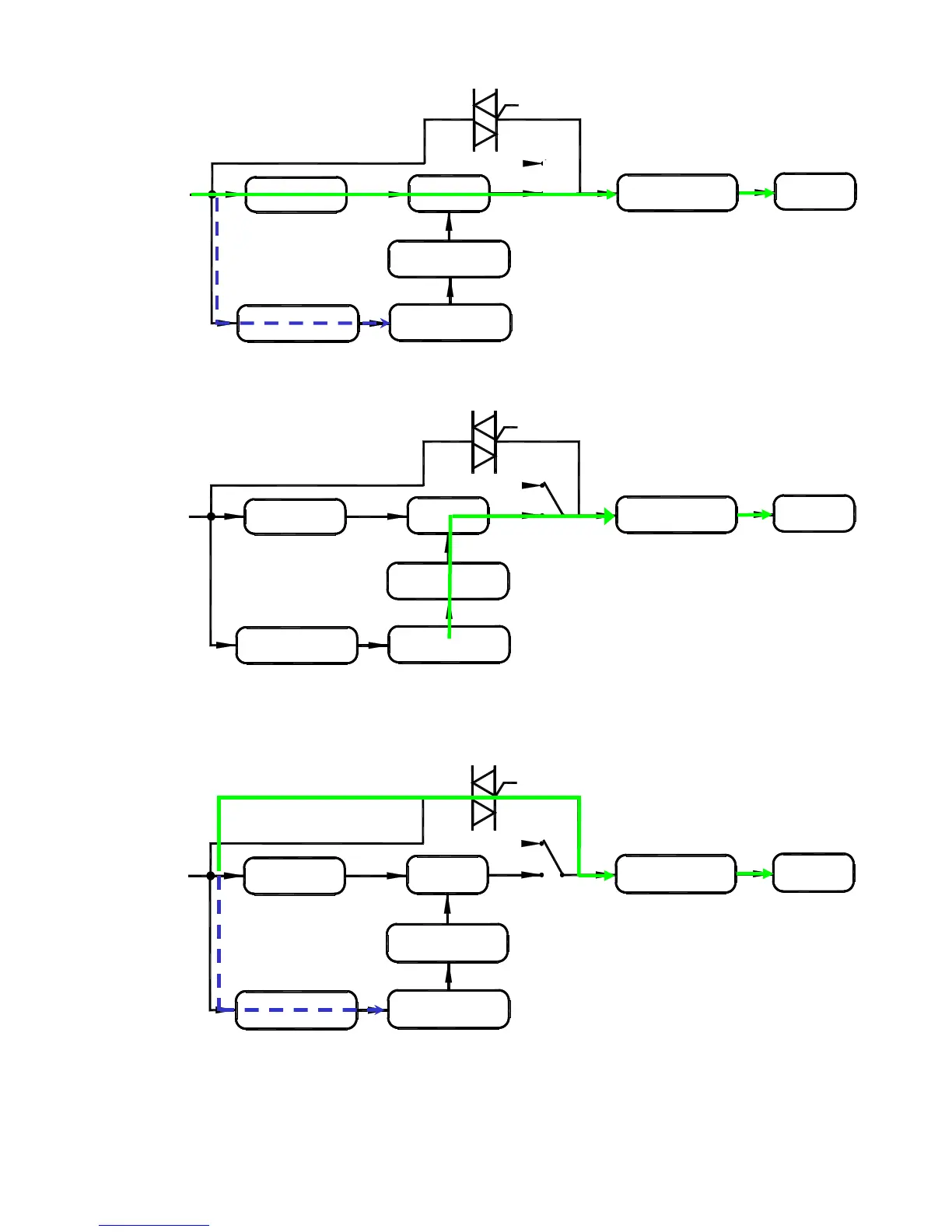

Figure 2-8—Normal Operation Mode
240Vac
CHARGE
PFC AC/DC
BATTERY
DC/DC
DC/AC
LOAD
ISOLATION
TRANSFORMER
Figure 2-9—Battery Operation Mode
240Vac
CHARGE
PFC AC/DC
BATTERY
DC/DC
DC/AC
LOAD
ISOLATION
TRANSFORMER
Figure 2-10—Bypass Operation Mode
