POWERVAR Security Plus UPS
35
2.1.3 Security Plus Terminal Connection Block Illustration (2-6kVA)
All models are factory configured for 50 or 60Hz operation. Figure 2-5A represents 2-6kVA
60Hz configuration. Figure 2-5B represents 2-6kVA 50Hz configuration. Refer to Table 2-3 or
Table 2-4 for the appropriate wiring configuration.

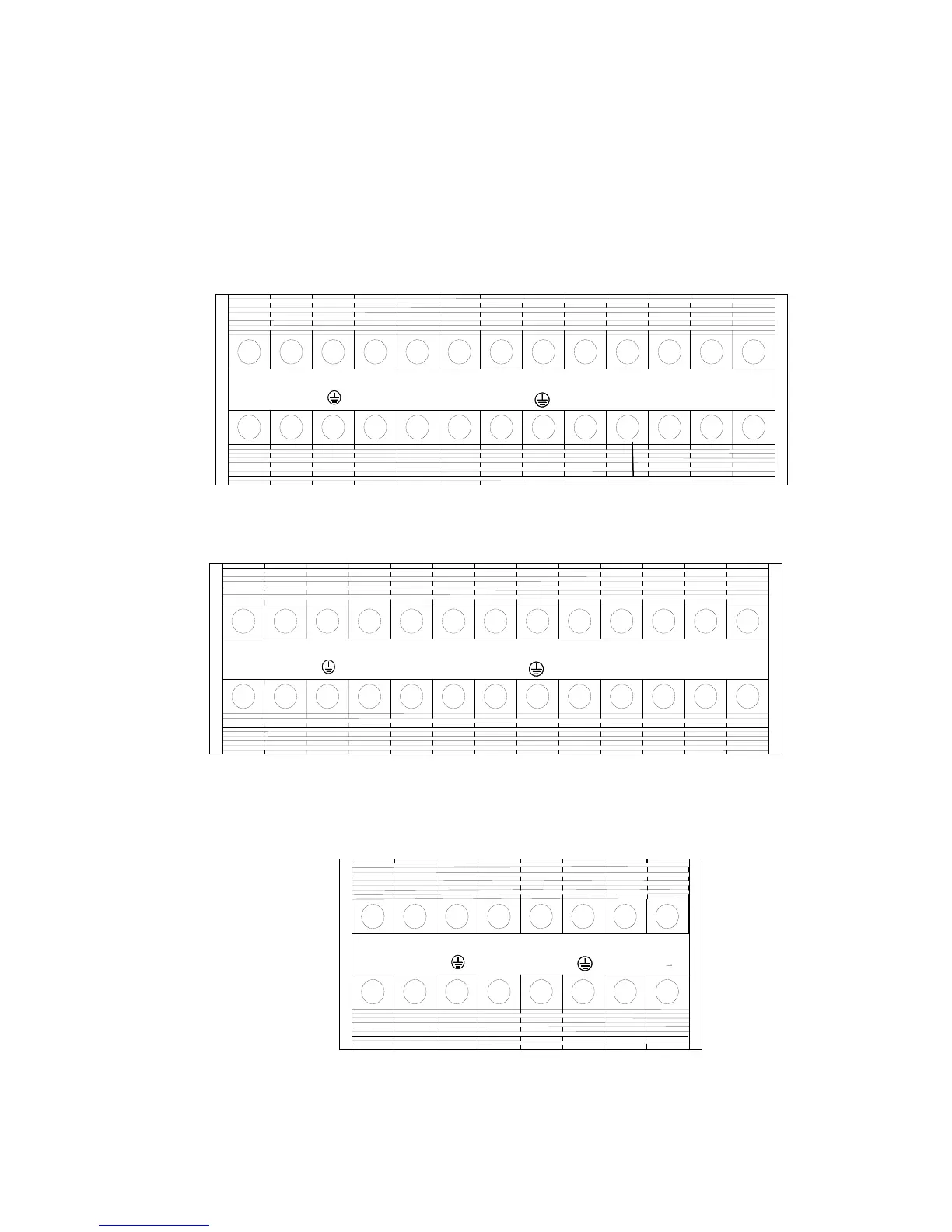

The wire connection (from left to right) of the terminal connection block on the rear is shown
below:
Figure 2-5A
Figure 2-5B
Figure 2-5C represents the low voltage (100-120V) configuration.
Figure 2-5C
L1
L2/N
X1 X2 N X4 208V
SSO
240V
EPO1
EPO2
INPUT
OUTPUT BYP SELECT
GND
GND
L1
L2/N
X1 X2 X3 N 208V
SSO
240V
EPO1
EPO2
INPUT
OUTPUT BYP SELECT
GND
GND
L1
L2/N
X1 X2
EPO1
EPO2
INPUT
OUTPUT
GND GND
