5.1.1 Battery Tray Replacement (2-6kVA)
Reference Fig. 5-1 for the following steps.
1. Flip the DC circuit breaker on the rear panel of the UPS to the OFF position.
2. Remove the front plastic panels of the UPS.
3. With a screwdriver, remove the metal front panel and the securing bars

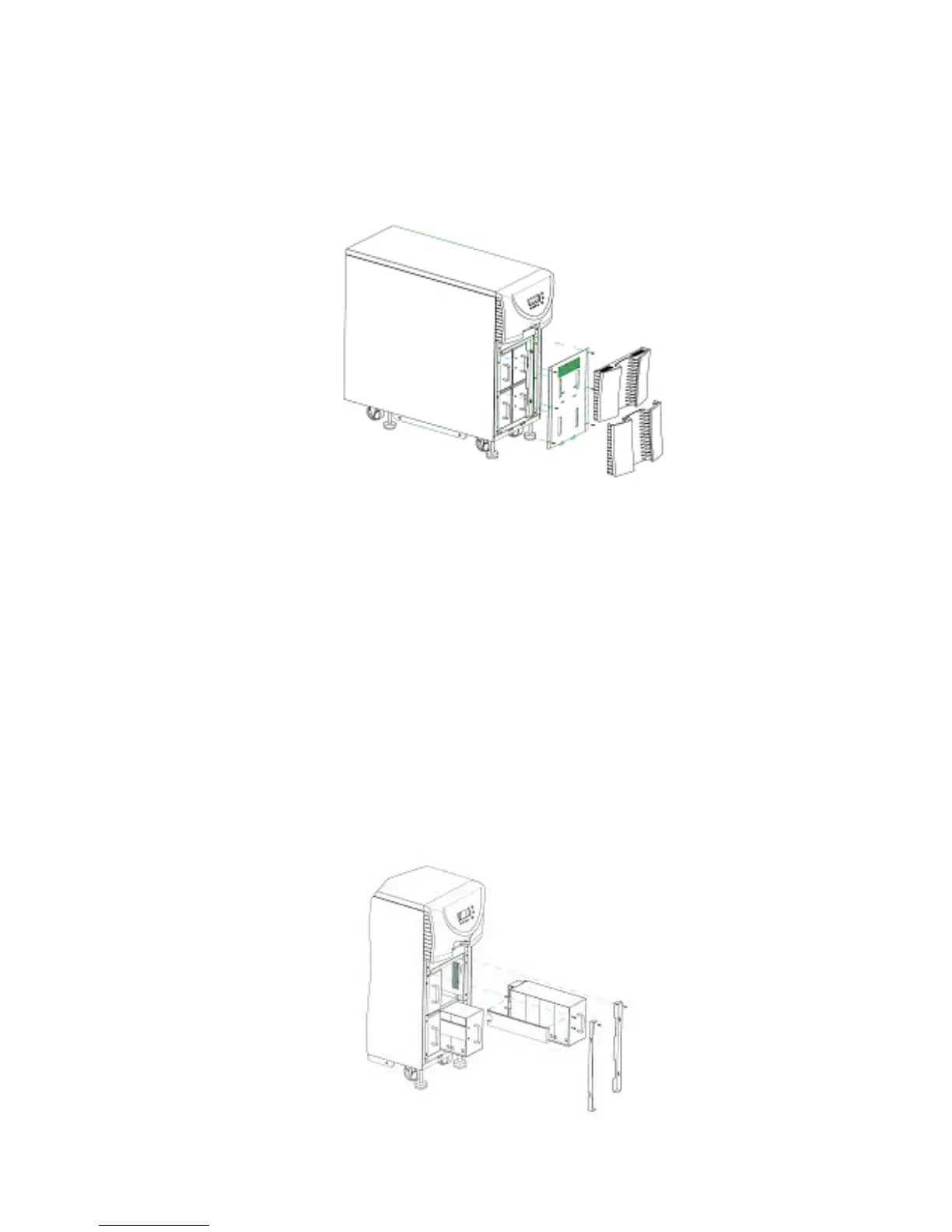

Fig. 5-1
Reference Fig. 5-2 for the following steps.
4. Pull out battery tray (1), then tray (2), then tray (3), then tray (4) out of the unit
5. Position detached battery trays away from one another when servicing
6. Slide the new POWERVAR battery trays into the empty slots
7. Battery cables are located in between the battery trays. Examine all battery connections
to ensure that there are no loose or damaged connections prior to connecting battery
trays.
8. Make sure the trays are secure and connected to the connection socket
9. Place the metal bars, panels, and plastic covers back on the unit
10. Battery connectors extend past the front of the battery trays. Examine all battery
connectors to ensure that there is clearance between the connections and the cover
plate before installing cover panels.
11. Secure these components back in place with appropriate hardware
12. Flip the DC circuit breaker on the rear panel of the UPS to the ON position
Fig. 5-2
