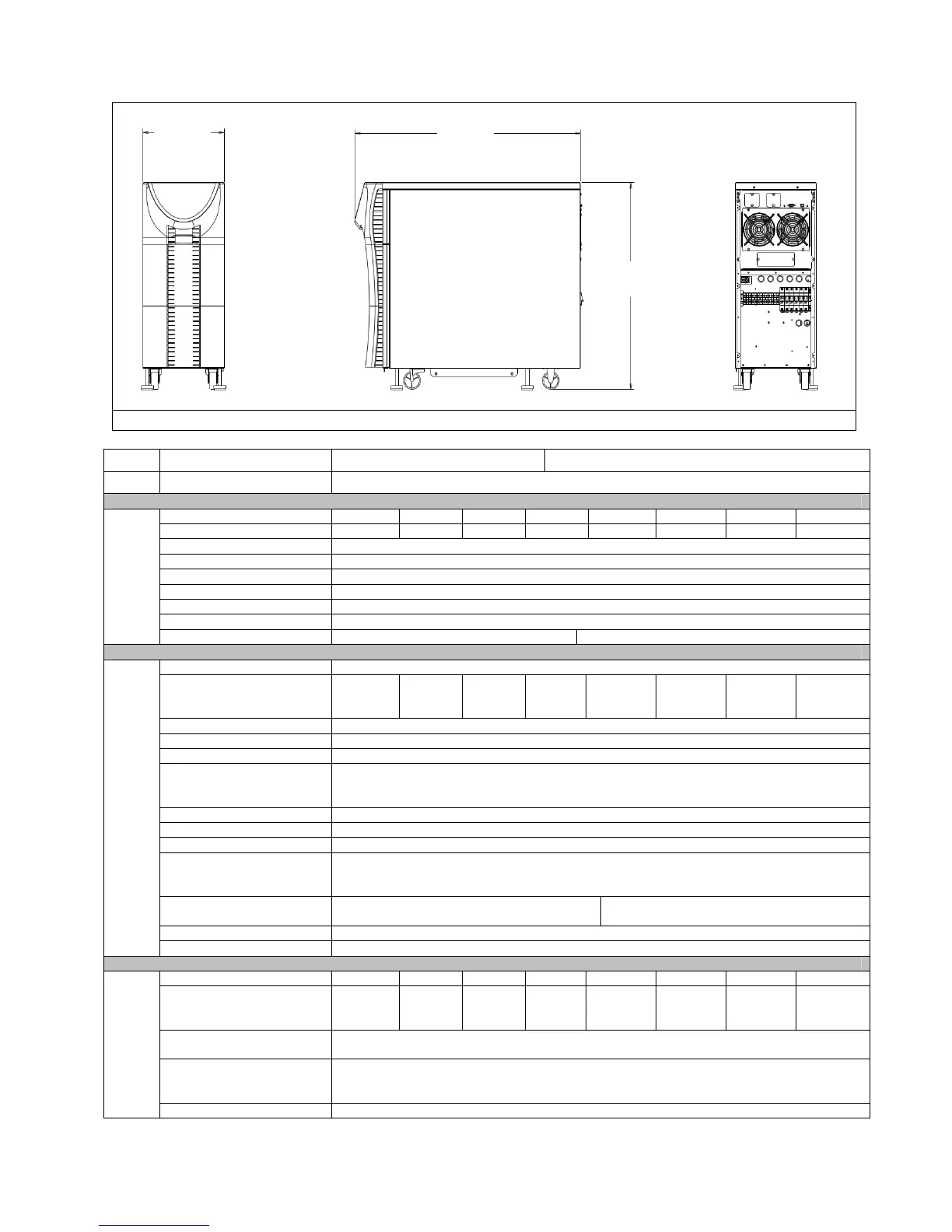

POWERVAR Security Plus UPS
9
FRONT SIDE REAR
Model
A
BCDEF2000-11
A
BCDEF2000-22
Topology True On line, Double-Conversion, IGBT Design, Internal Isolation Transformer
INPUT
Voltage (VAC) 100 115 120 200 208 220 230 240
Voltage Range (VAC) 70-115 81-132 84-138 140-230 146-239 154-253 161-264 168-276
Voltage Tolerance + 15% ~ -30% before switching to batteries
Frequency (Hz) 50/60
Frequency Tolerance 42 Hz to 69 Hz before switching to batteries
Input PF > 0.95
Input Current THD < 5.0%
Input Connection Hardwired Standard; Line Cord Optional (Consult factory)
Input Capacity 2160 VA 2160 VA
OUTPUT
Capacity 2000VA/ 1800W
Voltage (VAC) 100 115 120 200 120
208
240
220 230 120
208
240
Voltage Regulation ± 3.0% Max, ± 1.0% Normal
Output Voltage THD < 3.0%
Power Factor 0.9
Step Load Response ± 4.0% for 50% step load change
± 6.0% for 100% step load change
Return to ± 3.0% of nominal within 3 cycles
Crest Factor 3:1
Frequency (Hz) 50/60
Frequency Regulation ± 0.1Hz
Overload 125% for 2 minutes
150% for 30 seconds
300% for 500ms
Efficiency AC-AC >85.0%
DC-AC >71.0%
AC-AC >85.0%
DC-AC >70.0%
Common Mode Noise < 0.5 VRMS
Output Connection Hardwired Standard; Output Receptacles Optional (Consult factory)
BYPASS
Input Voltage (VAC) 100 115 120 200 208 220 230 240
Output Voltage (VAC) 100 115 120 200 120
208
240
220 230 120
208
240
Transformer Voltage
Regulation
± 3.0%
Overload 125% for 10 minutes
150% for 500ms
1000% for 1 cycle
Efficiency > 95.0%
11.80
(
299.72
)
32.65
(
829.4
)
28.70
(
729.0
)
