Installation
35
Powerware
®
PrestigeSeriesInstallationand Operator’s ManualforIBM Applications (6000 VA)Uncontrolled Copy
Utility Input
(L6-30R) To
PowerPass
(Cord Provided)
Input Breaker
Bypass Switch
5-15R
Receptacles
L6-30R Receptacles
5-15R
Circuit
Protectors
Power Cords To PPU
Circuit Protectors for
Locking Receptacles

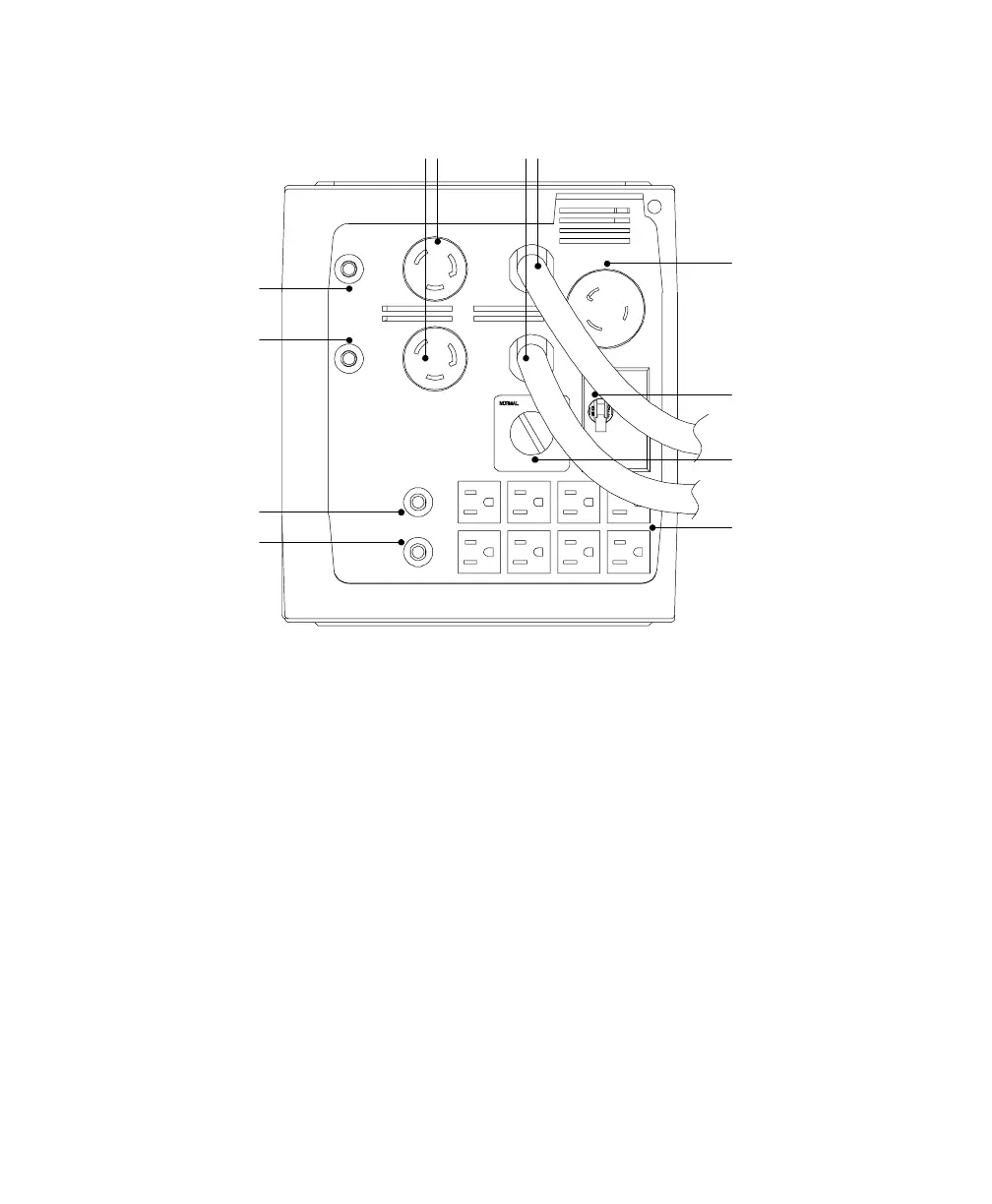

Figure 8. L6-30R/5-15R PPDM Rear Panel Connections
4. Verify the circuit breaker on all battery cabinets is in the
OFF (O) position (see Figure 9).
