Powtran PI500-W Series User Manual

Appendix I
70
Appendix I
RS232 cable 15m at the longest
T+
T-
485-
485+
485-
485+
485-
485+
1#
2#
N#
RS232 to RS485
converter
Frequency
inverter
Shielded twisted pair
PE
PE
PE
Frequency
inverter
Frequency
inverter

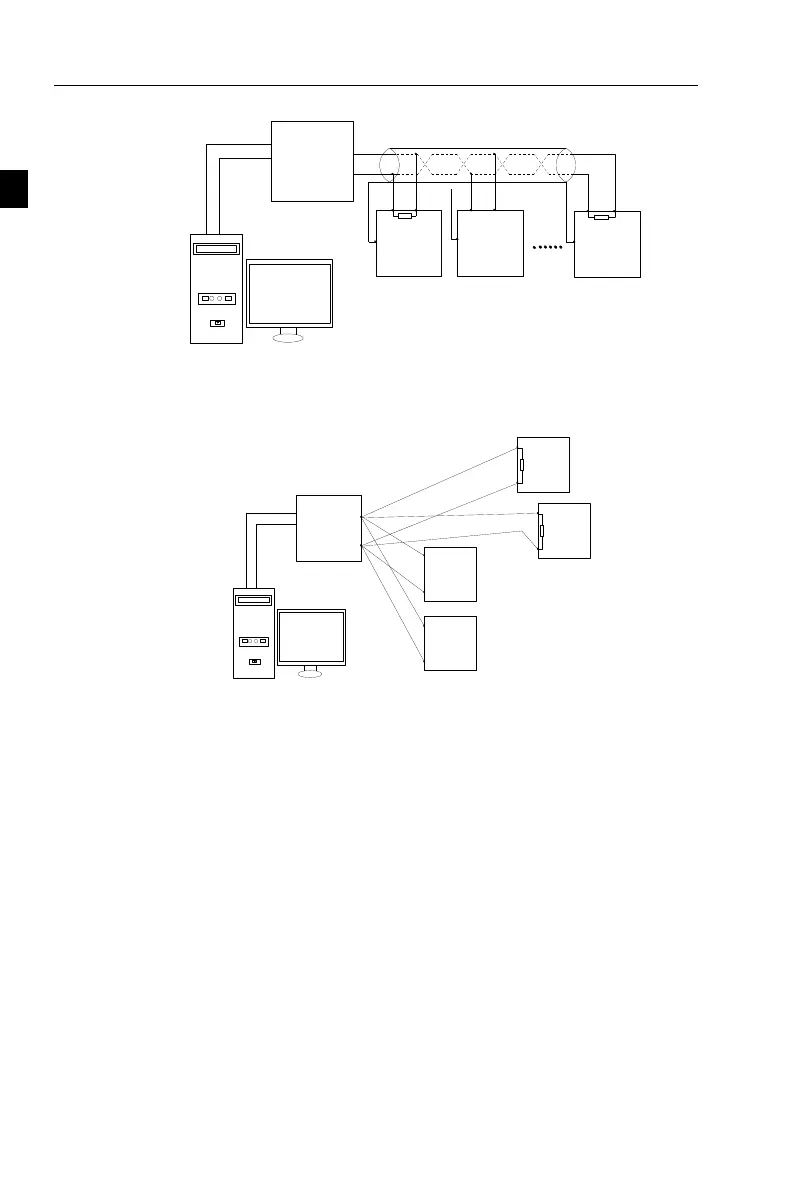

Figure I-4
The two longest distance inverter from the device shall short the terminal resistor on the
control board to be active. As shown in Figure I-5:
`
RS232 to RS485 converter
T+
T-
485-
485+
485-
485+
485-
485+
1#
2#
8#
RS232 cable 15m
at the longest
485-
485+
5#
Frequency
inverter
Frequency
inverter
Frequency
inverter
Frequency inverter
Figure I-5
Multi-machine connection should try to use a shielded cable. The basic parameters such as
baud rate and data bit of all of the devices on RS485 line must be the same, address must be
different.
NOTE: The terminal resistor of 485 decides valid or invalid through the control board (No.
485) jumper
I-1-3 Protocol description
PI500 series inverter communication protocol is a asynchronous serial master-slave
communication protocol, in the network, only one equipment(master) can build a protocol (known
as “Inquiry/Command”). Other equipment(slave) only can response the "Inquiry/Command"of
master by providing data or perform the corresponding action according to the
"Inquiry/Command"of master. Here, the master refers to a Personnel Computer(PC), an industrial
control device or a programmable logic controller (PLC), etc. and the slave refers to PI500 inverter.
Master can communicate with individUal slave, also send broadcasting information to all the lower
slaves. For the single "Inquiry/Command"of master, slave will return a signal(that is a response) to
master; for the broadcasting information sent by master, slave does not need to feedback a response
to master.
Communication data structure PI500 series inverter's Modbus protocol communication data
format is as follows: in RTU mode, messages are sent at a silent interval of at least 3.5 characters.
There are diverse character intervals under network baud rate,
which is easiest implemented. The first field transmitted is the device address.
The allowable characters for transmitting are hexadecimal 0 ... 9, A ... F. The networked

Powtran PI500-W Series Specifications

General

Output Voltage	0 to rated input voltage
Power Range	0.4kW to 400kW
Control Mode	V/F control
Frequency Range	0~400Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overload, Short circuit, Phase loss
Communication	RS485 (Modbus RTU protocol)
Cooling Method	Forced air cooling
Operating Temperature	-10℃~+40℃ (Derating if above 40℃)
Storage Temperature	-20℃~+60℃
Humidity	5% to 95% (non-condensing)
Altitude	Below 1000m (Derating if above 1000m)
