Appendix II
87

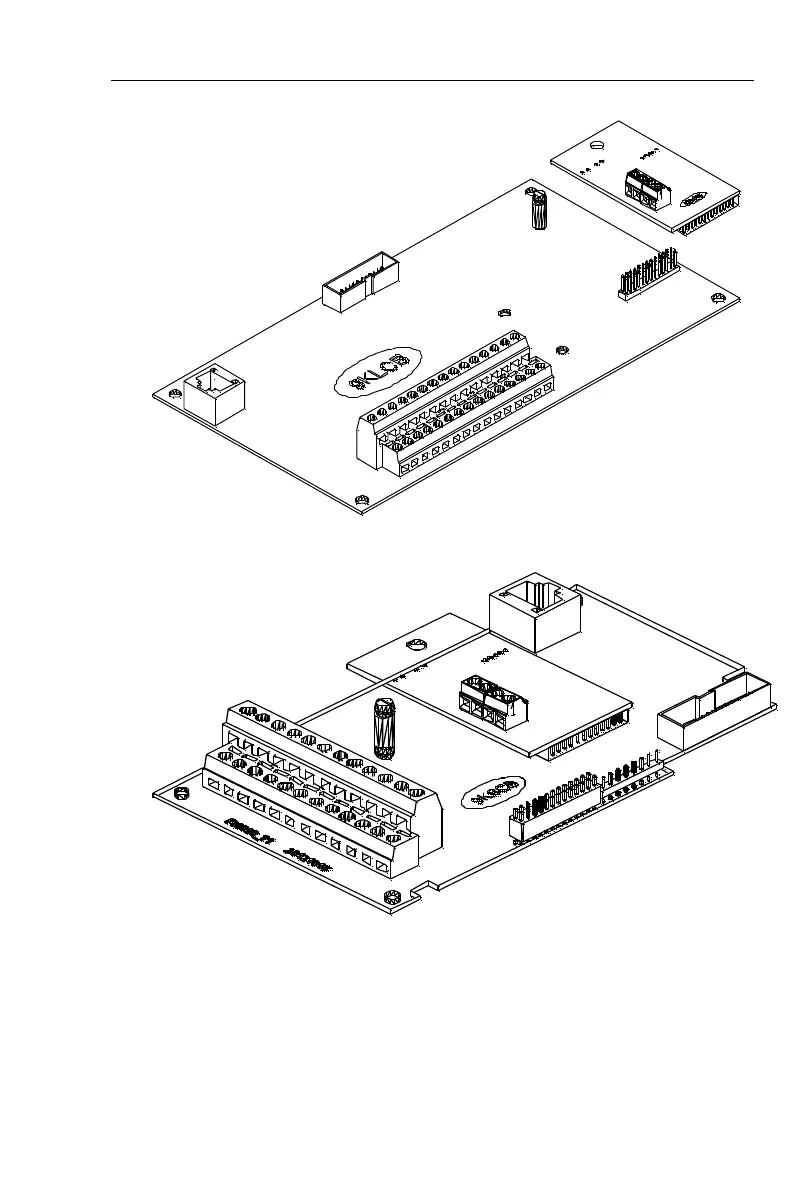

9K-RS485_S connect to 9KLCB control board
9K-RS485_S connect to 9KSCB control board
3-4-5.Link RS485 communication cables to inverter control terminals (SG+), (SG-).
3-4-6.When using RS485 transform, connect Inverter “SG+” to RS485 “T+”,
Inverter “SG-” to RS485 “T-”.
3-4-7.After Confirming connection again, turn on inverter power.
3-4-8.If connection is right, set communication parameters as following:
3-4-9.F9.00 baud rate 0：300, 1：600, 2：1200, 3：2400, 4：4800, 5：9600;6：
