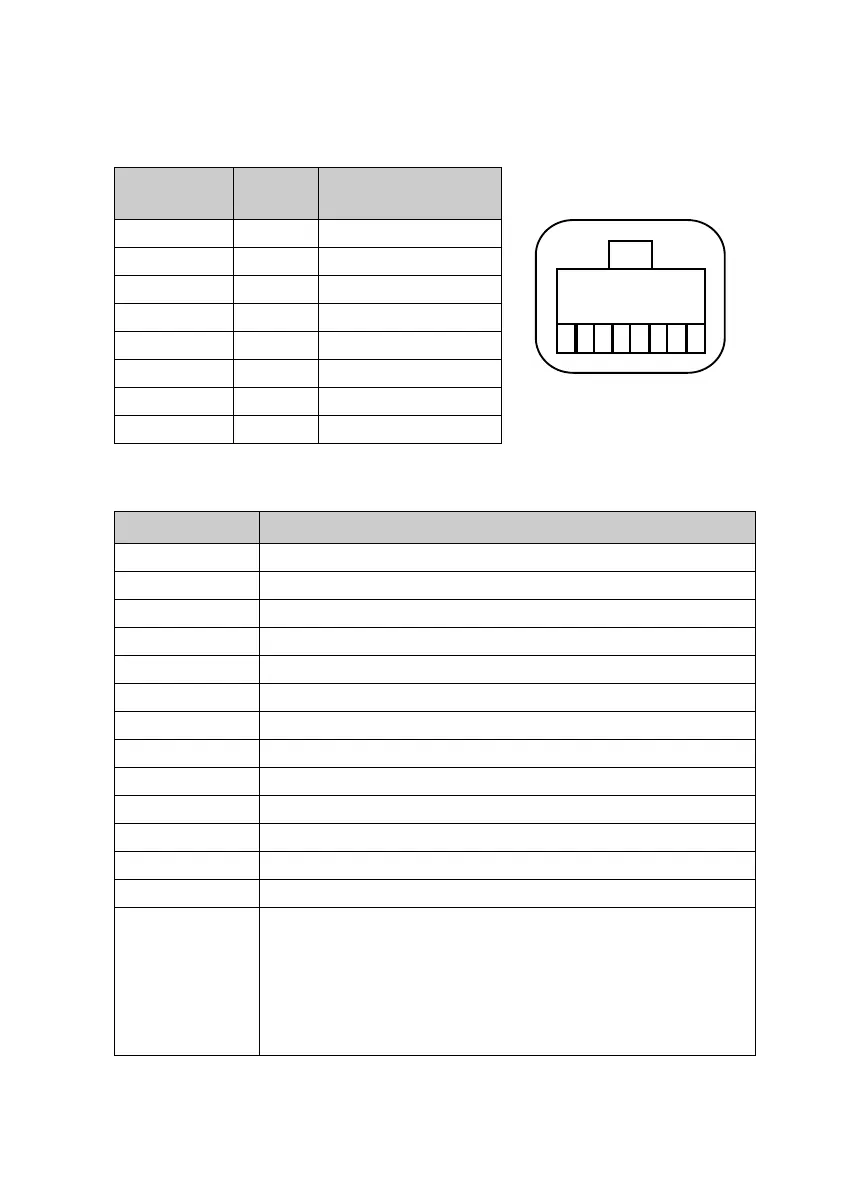

• Pin configuration of the RJ45 socket
7.2 Remote control commands
moisture
analyser
RJ 45 Remark
n.c. 1 Not connected
RS 232 out 2 Out (V24)
CTS 3 In (V24)
VDC 4 Out (9 ... 16V)
GND 5 0V
RS 232 in 6 In (V24)
DTR 7 Out (V24)
EXTBUS 8 In (5V, logic)
Command Function
ACKn Acknowledge n=0 off; n= 1 on
CAL Start calibration (only if EXT is selected)
DN Reset weight display
D.......... Describe weight display (right-aligned)
@N Reset info display
@......... Describe info display
N Reset instrument
OFF Switch off instrument
ON Switch on instrument
PCxxxx Enter anti-theft code
PDT Print date and time
PRT Start printing (Press «PRINT» key)
PST Start print status
Pn (ttt.t) Set print mode
n=0 Individually print each value (unstable)
n=1 Individually print a stable value (stable)
n=2 Print after change of load
n=3 Print after each integration period
n=4 Print with time basis in s (ttt.t)
