946i/932i Commercial Treadmill Assembly Guide 3
Assembly Steps
CAUTION: The location of the On/Off switch is beneath the
cutout on the base frame. Make sure the power switch is in
the Off position. Make sure the power cord is disconnected
from its power source.

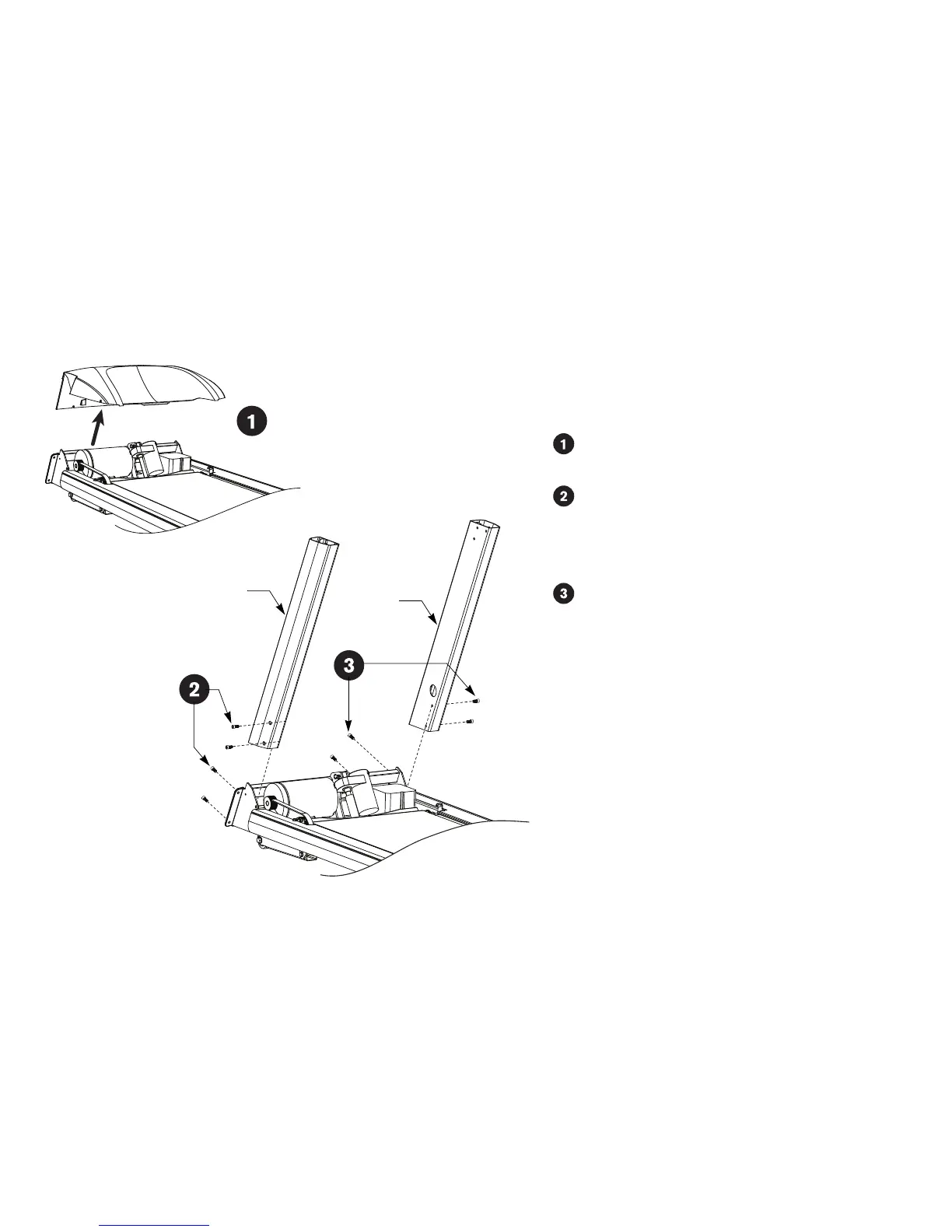

Loosen, but do not remove, the two front fasteners and two
side fasteners on the hood using the ³⁄₁₆-inch hex key.
Remove the hood and set it aside.
Slide the left upright support into the base frame bracket.
Ask your assistant to insert a socket head screw (A) into the
top mounting hole on the front of the bracket. Thread the
screw so the other mounting holes line up. Then, insert the
other three screws (A). To allow room for adjustments,
loosely tighten the screws with the ¹⁄₄-inch hex key.
Attach the right upright support by following the same
procedure as step 2 using four socket head screws (A). To
allow room for adjustments, loosely tighten the screws with
the ¹⁄₄-inch hex key.
Left Upright
Support
Right Upright
Support
To Next Page
