C546i Self Powered Elliptical Fitness Crosstrainer
Page 17
Procedure 5.2 - Inspecting and Adjusting Belt Tension
Procedure
1. Remove both screws at the rear of the rear cover. Grasp the right side of the rear cover and
rotate it counterclockwise to remove the cover. Grasp the left side of the rear cover and
rotate it clockwise to remove the cover. Refer to procedure 7.1.
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
.
WARNING
If the EFX has been in recent use, the load resistors and mounting bracket may be extremely
hot.
2. Remove the two screws that retain the black plastic shield on the left side of the EFX.
Remove the black plastic shield from the EFX.
3. Place a 20030-108 or equivalent belt gauge on the input belt as shown in Diagram 5.2.

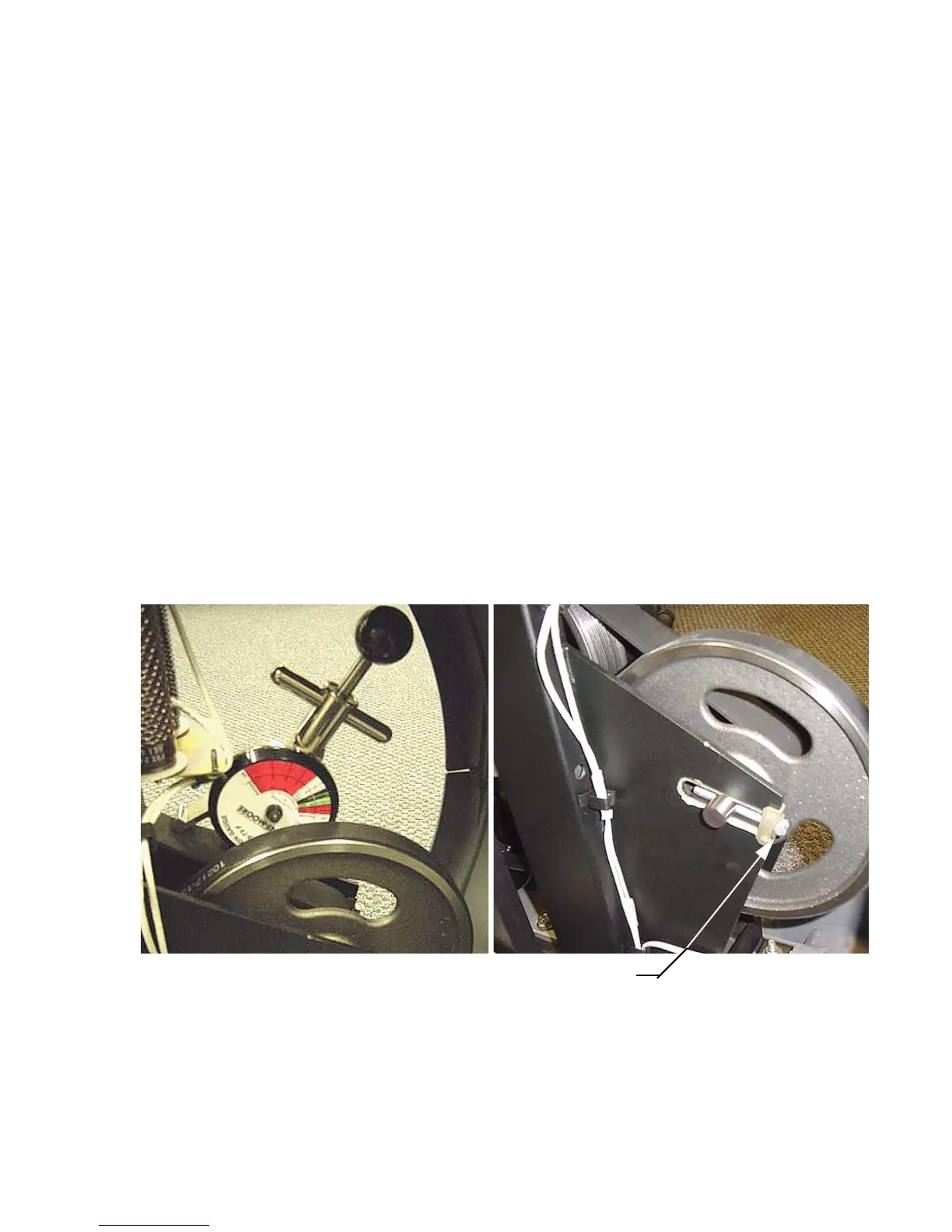

Diagram 5.2 - Input Belt Tension Measurement
Left Side Adjustment Bolt
To Next Page
