C546i Self Powered Elliptical Fitness Crosstrainer
Page 61
Procedure 7.15 - Replacing a Ramp Assembly
Procedure
1. Raise the incline to its highest position.
2. Remove both stairarms per Procedure 7.14.
3. Remove the four bolts that fasten the ramp pivot to the ramp. Refer to Diagram 7.15.

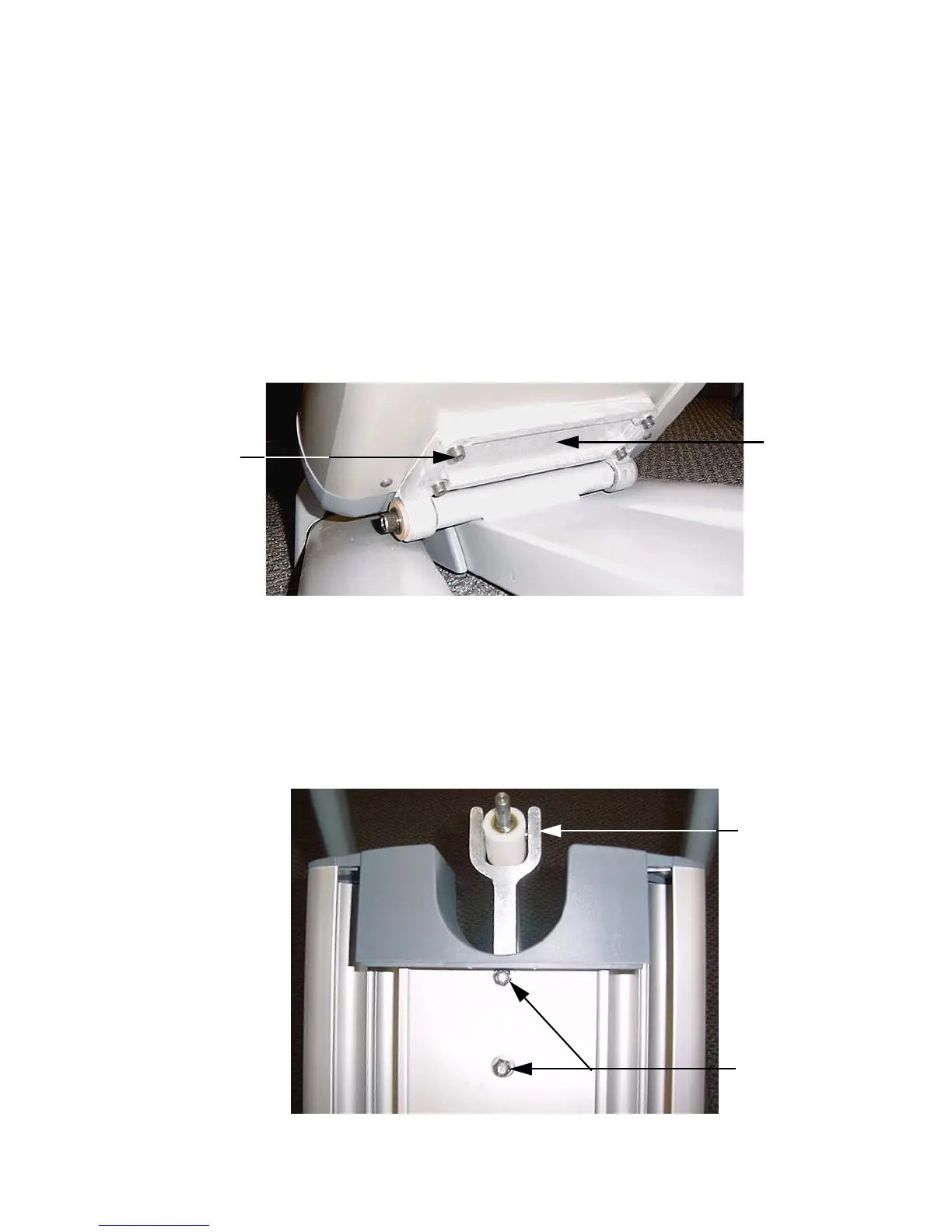

Diagram 7.15 - Rear Ramp Mounting
4. Remove the two bolts that fasten the incline yoke into the ramp. Refer to Diagram 7.16.
Carefully, slide the incline out of the ramp and lower the ramp to the frame. Take care to not
allow the incline yoke to rotate on the incline motor’s drive screw. If the yoke can not be
returned to the same position it was in before the incline yoke was removed, an incline
calibration (Procedure 5.3) must be performed before the incline motor is reinstalled in the
ramp.
Diagram 7.16 - Front Ramp Mounting
Ramp
Pivot
Mounting
Bolt
Incline Yoke
Incline Yoke
Mounting Bolts
To Next Page
