C546i Self Powered Elliptical Fitness Crosstrainer

Page 63

Procedure 7.16 - Replacing a Handlebar

1. Remove the screw in the handlebar clamp that fastens the handlebar being replaced. Refer

to Diagram 7.17

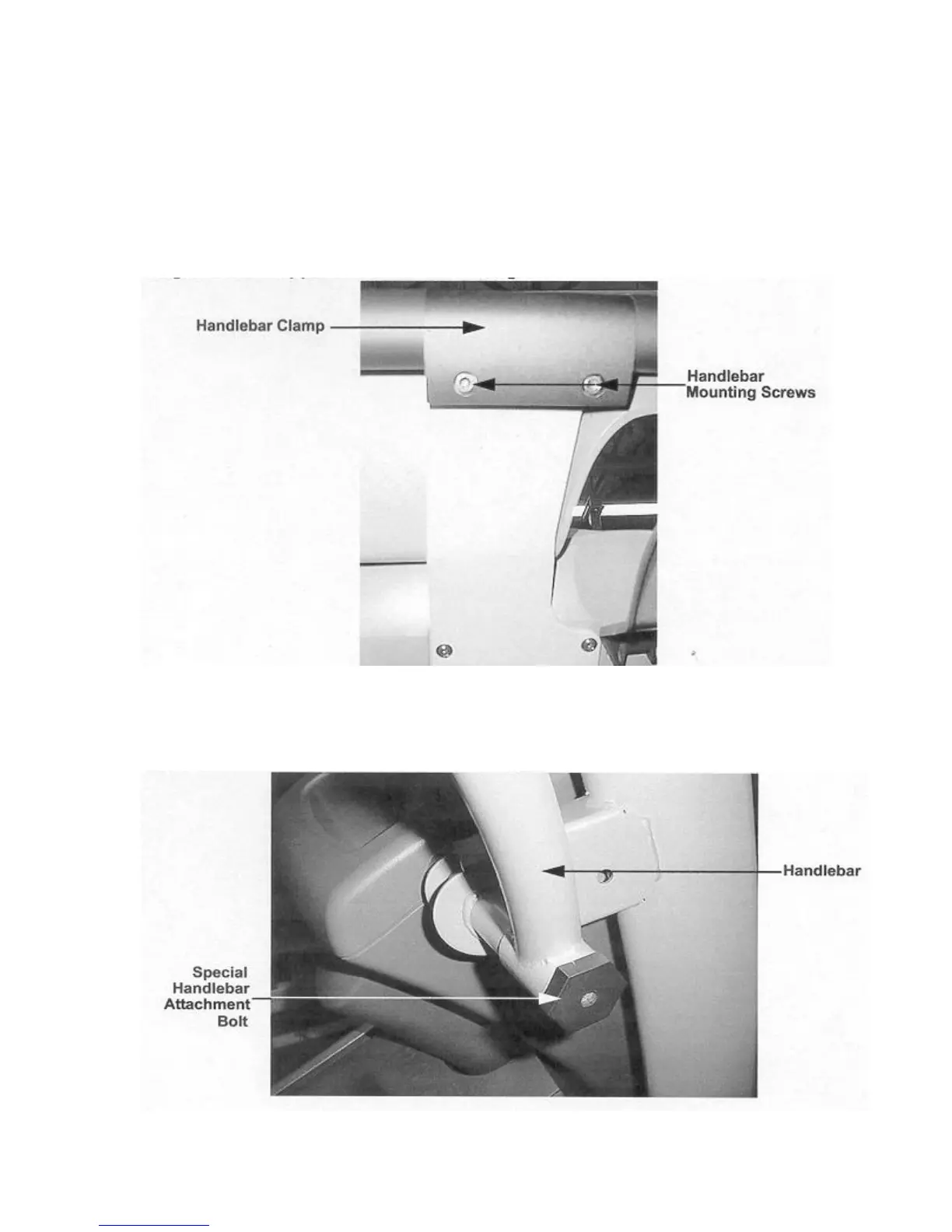

Diagram 7.17 - Upper Handlebar Mounting

2. Using a large adjustable wrench, remove the special handlebar attachment bolt from the

lower end of the handlebar(s) being removed. Refer to Diagram 7.18.

Diagram 7.18 - Lower Handlebar Mounting

Section One - Things You Should Know3
General Information4
Tools Required4
Section Two - Preventive Maintenance5
Daily Maintenance5
Weekly Maintenance5
Quarterly Maintenance6
Procedure 3.1 - Software Access Codes7
Procedure 3.2 - Accessing the Diagnostic Program8
Procedure 3.3 - Displaying the Odometer10
Procedure 3.4 - Club Settings11
Procedure 3.5 - Documenting Software Problems12
Procedure 3.6 - Software Uploading Procedure13
Upload Procedure13
Procedure 5.1 - Measuring the Resistance of a Generator15
Procedure 5.2 - Inspecting and Adjusting Belt Tension17
Procedure 5.3 - Calibrating the Incline Motor20
Procedure 6.1 - Troubleshooting the Lower and Upper Interconnect Cables22
Procedure 6.2 - Troubleshooting the Keypad and Upper PCA24
Procedure 6.3 - Upper Display Does Not Illuminate26
Procedure 6.4 - Troubleshooting the Generator28
Procedure 6.5 - Troubleshooting Hand Held Heart Rate29
Procedure 6.6 - Troubleshooting the Incline System32
Procedure 7.1 - Replacing the Rear Covers34
Procedure 7.2 - Replacing the Lift Covers37
Procedure 7.3 - Replacing the Display Enclosure or Upper PCA40
Procedure 7.4 - Replacing the Lower PCA42
Procedure 7.5 - Replacing the Upper or Lower Interconnect Cables44
Procedure 7.6 - Replacing a Crankarm Assembly46
Procedure 7.7 - Replacing a Incline Motor48
Procedure 7.8 - Replacing the Input Pulley Belt50
Procedure 7.9 - Replacing the Generator Pulley Belt51
Procedure 7.10 - Replacing the Input Pulley Assembly53
Procedure 7.11 - Replacing the Step-Up Pulley Assembly55
Procedure 7.12 - Replacing a Stairarm Wheel56
Procedure 7.13 - Replacing a Stairarm Pedal58
Procedure 7.14 - Replacing a Stairarm59
Procedure 7.15 - Replacing a Ramp Assembly61
Procedure 7.16 - Replacing a Handlebar63
Procedure 7.17 - Replacing a Generator65
Procedure 7.19 - Replacing a Battery67
Procedure 7.20 - Replacing an External Power Input Jack69
Procedure 7.21 - Replacing the PROM70
Wiring Diagram 8.1 - C546I Self Powered71
Block Diagram 8.2 - C546I Self Powered72
