C546i Self Powered Elliptical Fitness Crosstrainer
Page 34
Procedure 7.1 - Replacing the Rear Covers
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
Replacing the Left and/or Right Side Rear Cover
1. Remove the two screws at the rear of the rear cover.
2. Grasp the left side cover and rotate it clockwise to remove it.
3. Grasp the right side cover rotate it counterclockwise to remove it.
4. Reverse steps 2 and three to replace the left and ride side covers. Replace the screws
removed in step 1 to fasten the left and right side covers.
Replacing the Top Section of the Rear Cover
5. Remove the left and right side covers as described above.
6. Loosen, do not remove, the two screws that fasten the top cover to the frame upright.
7. Remove the two screws the fasten the top cover to the front cover and remove the top
cover.
8. Set the replacement top cover in its mounting position and fasten it with the four screws
removed in steps 2 and 3.
9. Replace the left and right side covers as described above.
Replacing the Rear Section of the Rear Cover
10. Remove the left and right side covers as described above.

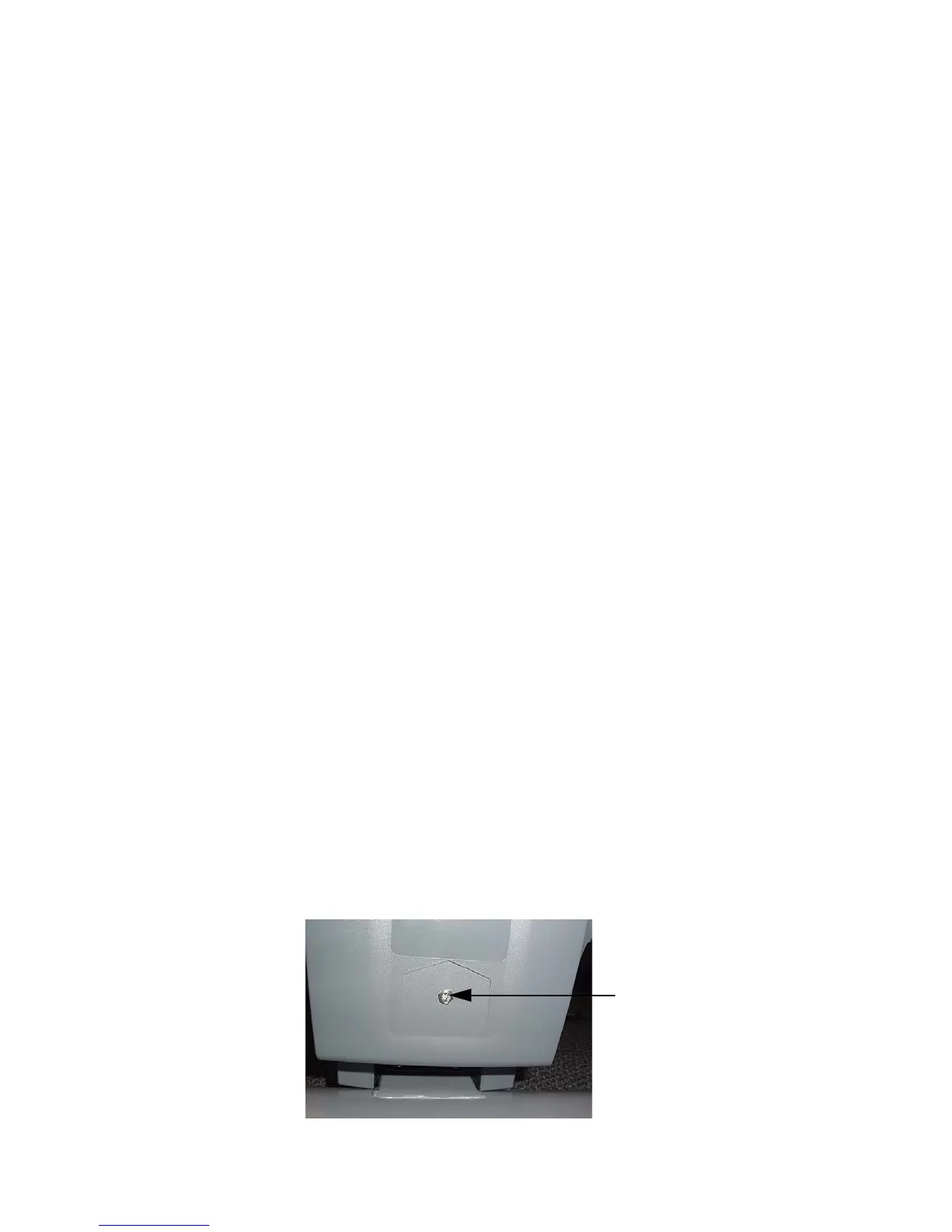

Diagram 7.1 - External Power Supply Input Jack
External Power
Supply
Input jack
