C546i Self Powered Elliptical Fitness Crosstrainer
Page 37
Procedure 7.2 - Replacing the Lift Covers
Replacing the Upper Lift Cover Section
1. The large upper section of the front cover is fastened to the lower cover sections. However,
there are two plastic clips, one on each side of the upper lift cover, that retain the upper
portion of the lift cover to the uprights. To remove the upper lift cover section, lower the
incline to its lowest position, to provide clearance.
2. The plastic cover clips must be carefully levered out of their mountings. Insert a narrow flat
bladed screw driver in the slot in the front of the cover clip. See Diagram 7.4.

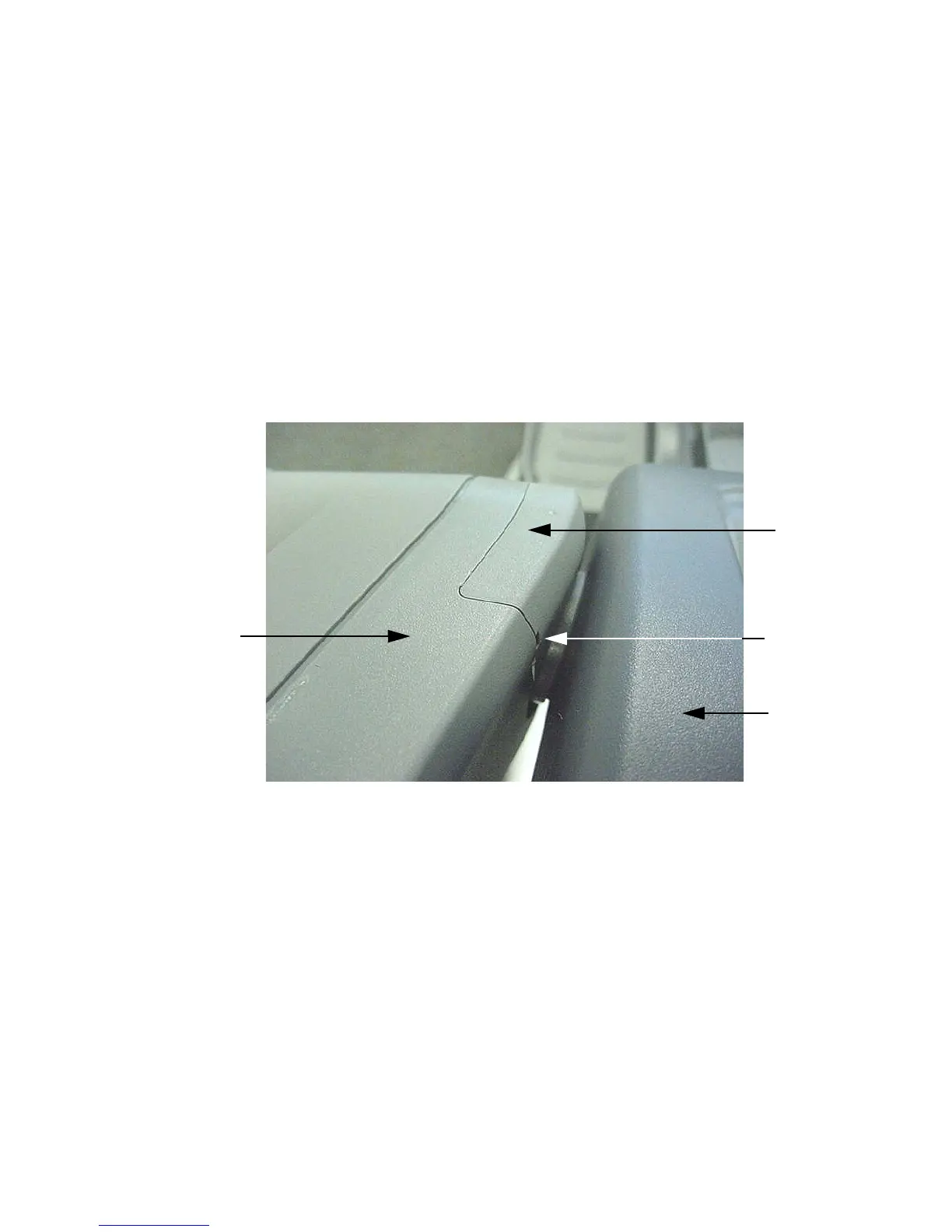

Diagram 7.4 - Lift Cover Clip
3. Carefully pry the cover clip away from the pivot cover. There are latching tabs in the front
and rear of the cover clip. All of the latching tabs must disengage from the pivot cover in
order to remove the cover clip.
4. Lift the upper lift cover section off of the lower cover sections.
5. Set the replacement upper lift cover section on in its mounting position on the lower cover
sections.
6. Replace the cover clips by setting them in their mounting position and pressing them into
place. Press the rear portion of the clip into place first then the front portion of the cover clip.
Cover Clip
Slot
Lift Cover
Pivot Cover
