C546i Self Powered Elliptical Fitness Crosstrainer
Page 38
Replacing the Lower Front Lift Cover Section
7. Remove the upper lift cover section as described above.
8. Remove the four screws that fasten the front cover section to the rear cover section.
Remove the front cover section from the EFX.
9. Set the replacement front cover section in its mounting position and fasten it with the four
screws removed in step 4.
Replacing the Lower Rear Lift Cover Section
10. Remove the upper and front cover sections as described above.
11. Remove the hitch pin from the clevis at the lower mount of the incline motor. Remove the
clevis pin from the lower incline motor mount. Lift the incline motor out of its mounting
position and set it on the floor in front of the EFX. Refer to Diagram 754.
12. Remove the two screws that fasten the battery bracket to the rear cover section and remove
the battery bracket.
13. Slide the battery out of the rear cover section and set it on the floor beside the incline motor.
14. Remove the two screws that fasten the rear cover section to the frame. Remove the rear
cover section from the EFX.
15. Set the replacement rear cover section in its mounting position and fasten it with the screws
removed in step 10.
16. Set the battery in its mounting position. Set the battery bracket in its mounting position and
fasten it with the screws removed in step 8.

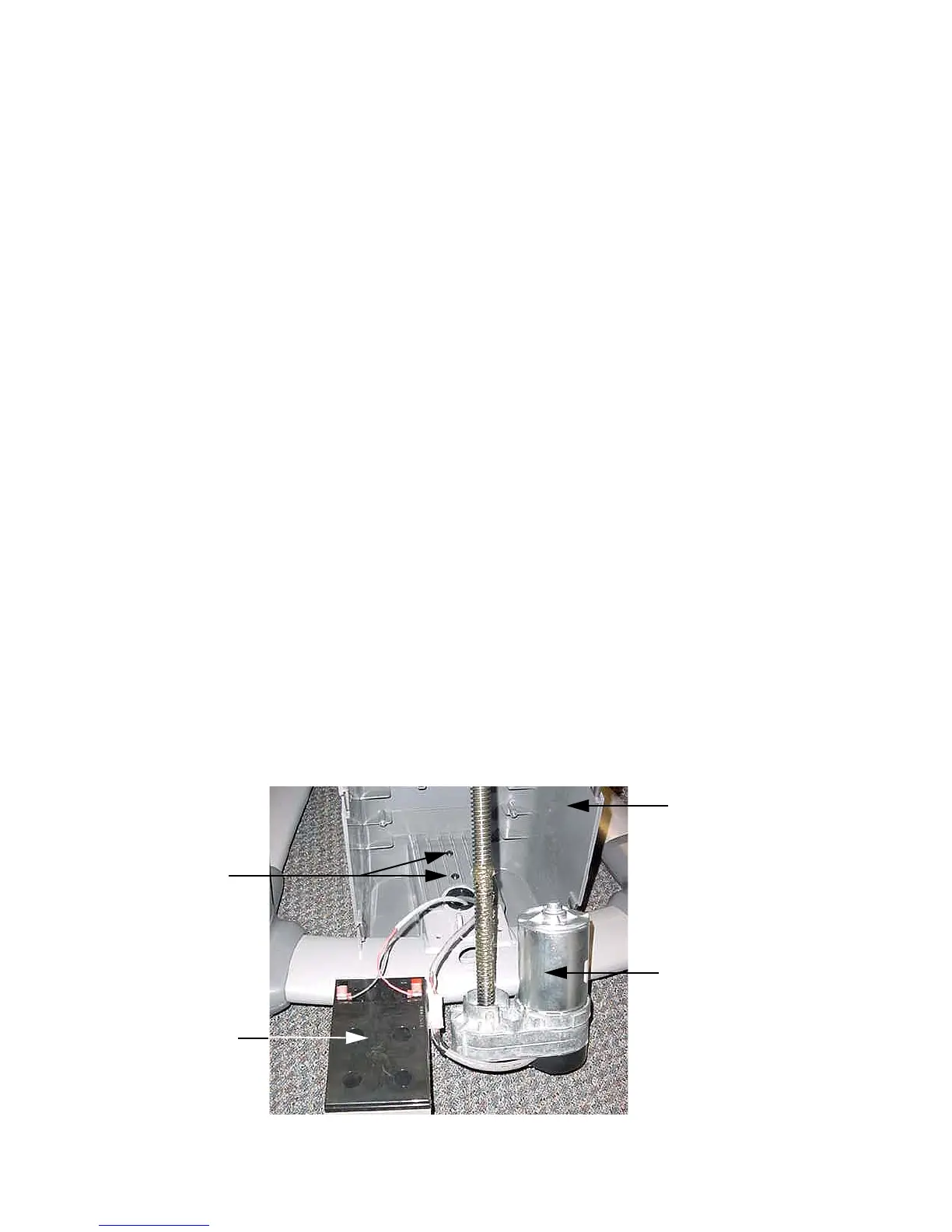

Diagram 7.5 - Rear Cover Section
Rear Cover
Section
Incline
Motor
Mounting
Screws
Battery
To Next Page
