C546i Self Powered Elliptical Fitness Crosstrainer
Page 7
Procedure 3.1 - Software Access Codes
The C546i uses the standard access codes to provide access to the various software features. In
using the standardized access codes the keys are hypothetically numbered left to right with key
#1 on the far left and key #7 on the far right. The standard access codes use all sequential key
presses. The allowable delay between key presses is short. If too much time is taken between
key presses the access procedure will be aborted. If the access is aborted, it will be necessary to

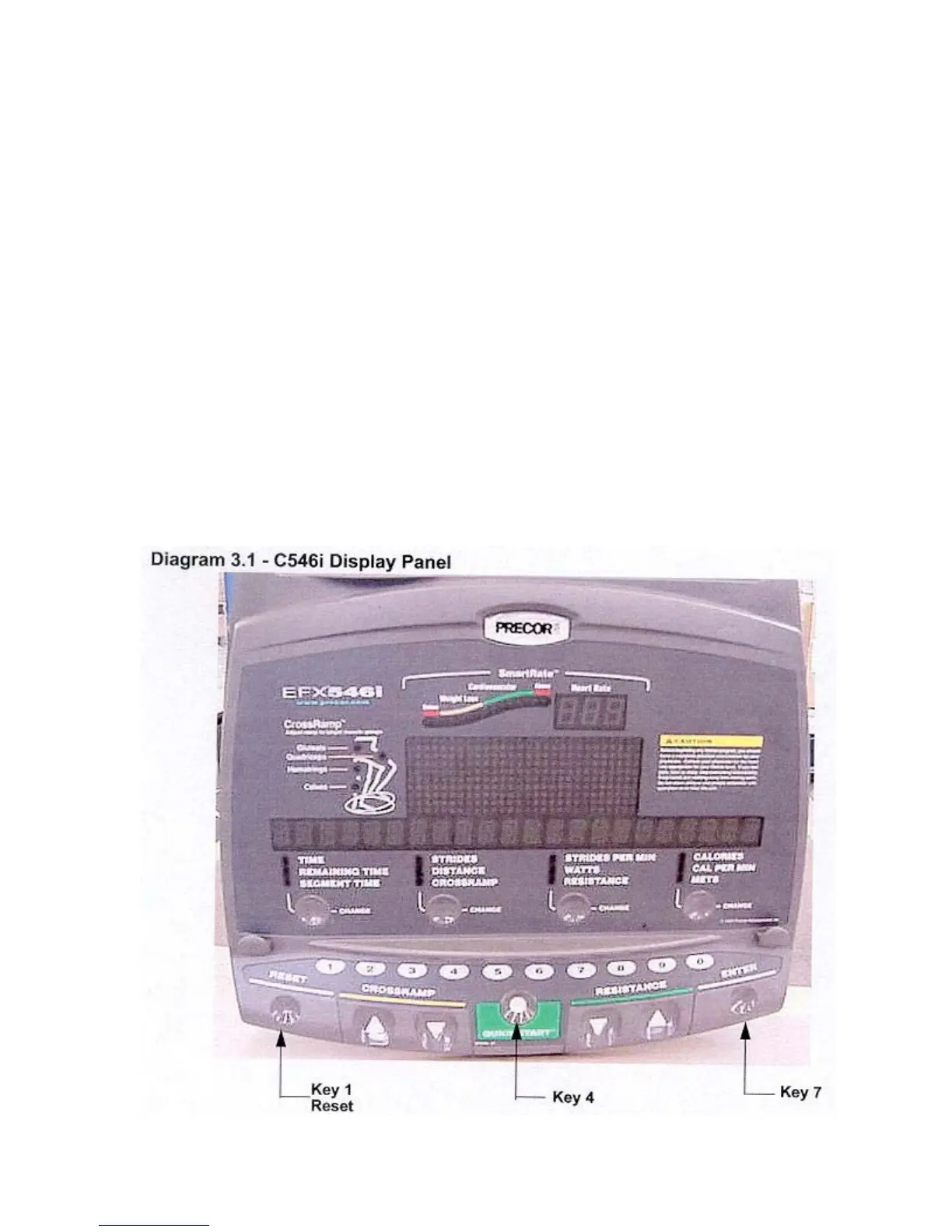

start over from the beginning. Refer to Diagram 3.1. The C546i display does not utilize key
positions #2 and #3, however, they must be counted to correctly locate keys #4 through #6. On
the C546i display key #1 is the RESET key and key #4 is the QUICK START key.
Standard Access Codes
Diagnostics Keys RESET,5,1,7,6,5,7,6,1
Odometer Keys RESET,6,5
Club Settings Keys RESET,5,6,5,1,5,6,5
