C546i Self Powered Elliptical Fitness Crosstrainer
Page 67
Procedure 7.19 - Replacing a Battery
1. Remove the lift cover per Procedure 7.2.
2. Remove the four screws that retain the lower front cover section, remove the lower front
cover section and set it aside.
3. Remove the hitch pin from the clevis at the lower mount of the incline motor. Remove the
clevis pin from the lower incline motor mount. Lift the incline motor out of its mounting
position and set it on the floor in front of the EFX. Refer to Diagram 7.22.

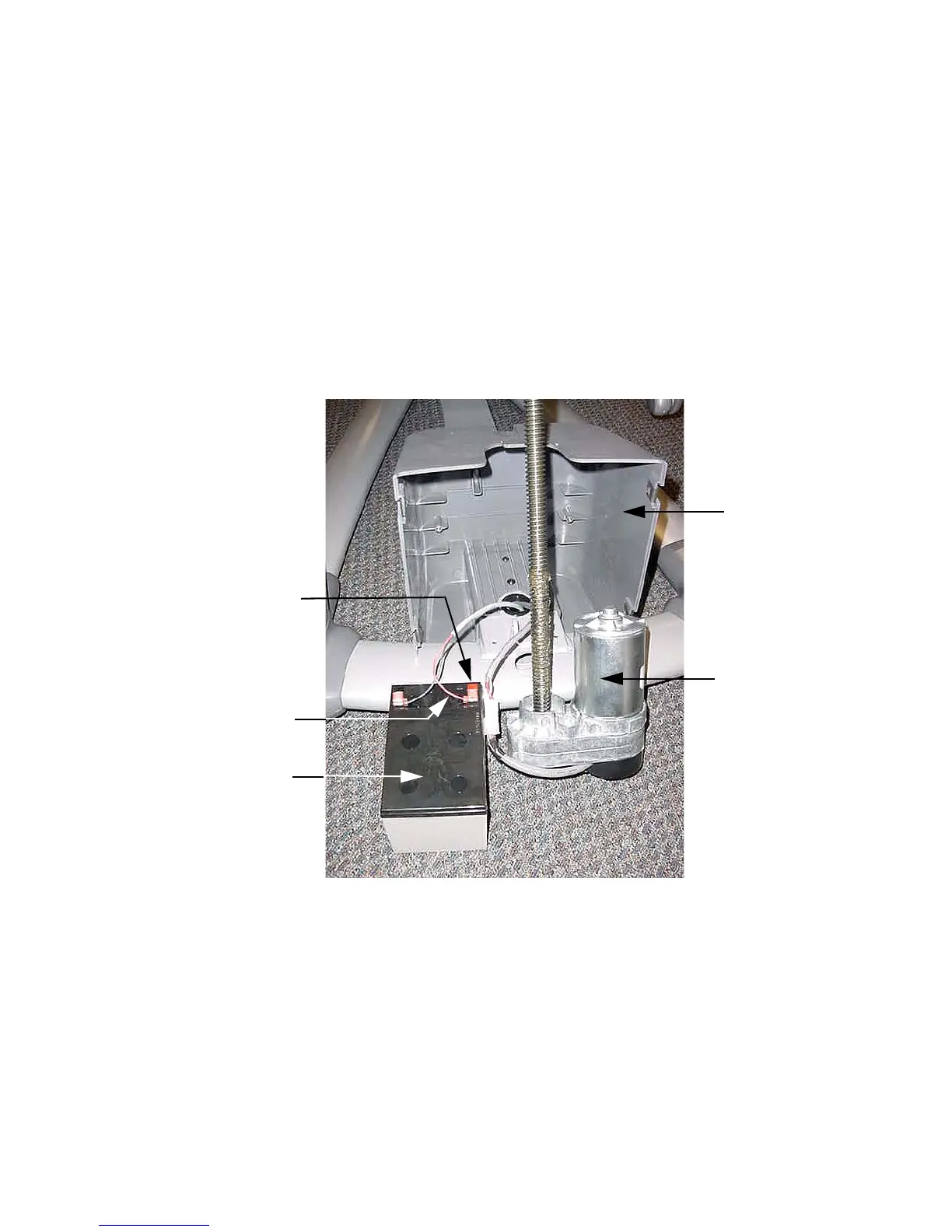

Diagram 7.22 - Replacing a Battery
4. Remove the two screws that fasten the battery bracket to the rear cover section and remove
the battery bracket.
5. Slide the battery out of the rear cover section and set it on the floor beside the incline motor.
6. Disconnect the red and black wires from the battery.
7. Connect the red and black wires disconnected in step 6 to the replacement battery. The red
wire must be connected to the terminal marked with the red dot.
Rear Cover
Section
Incline
Motor
Battery
Red Dot
Red Wire
To Next Page
