C546i Self Powered Elliptical Fitness Crosstrainer
Page 66

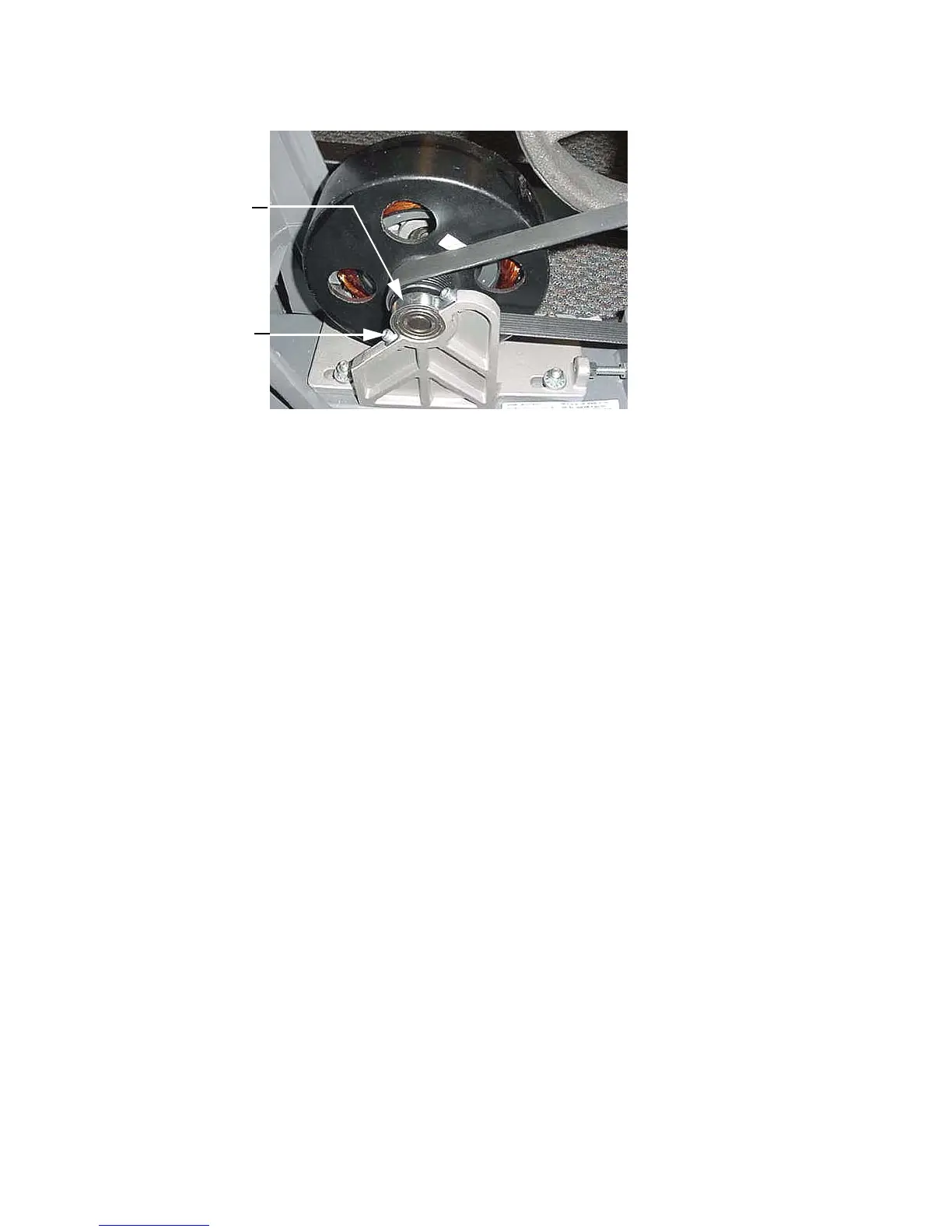

Diagram 7.20 - Generator Bearing Clamp
10. Replace and tighten the three generator mounting screws removed in step 9. Set the
bearing clamp in its mounting position, replace and tighten the two bearing clamp mounting
screws removed in step 9.
11. Hand start, but do not tighten the four mounting nuts removed in step 6. The generator must
be able to move in order to adjust the belt tension.
12. Adjust the generator drive belt tension per Procedure 5.3.
13. Reconnect the red battery lead removed in step 1 and replace the rear cover.
14. Check the operation of the EFX as described in Section Four.
Bearing Clamp
Bearing Clamp
Mounting Screw
