11. Remove the top section of the cover as described above.
12. Remove the nut retaining the external power supply input jack. Refer to Diagram 7.1
13. Remove the external power supply input jack from the cover.
14. Remove the four screws (2 each side) that fasten the cover to the frame. Slide the two wire
clips off of the cover’s left side. Remove the cover from the EFX.
15. Set the replacement cover in its mounting position and fasten it with the screws removed in
step 12. Slide the two wire clips into place on the covers left side.
16. Set the external power supply input jack at its mounting location and fasten it with the nut
removed in step 10.
17. Replace the left and right side covers as described above.
Replacing the Front Section of the Rear Cover
18. Remove the left and right side covers as described above.
19. Remove the top section of the cover as described above.
20. Remove the four screws that fasten the rear cover section to the frame. Carefully slide the
rear cover section rearwards a couple of inches. to clear the overlap between the front and
rear cover sections.
21. Remove the cables from the two lower cable clips on the inside of the front section of the
cover.
22. Remove the two screws that fasten the lower PCA mounting bracket to the front section of
the cover. Refer to Diagram 7.2.

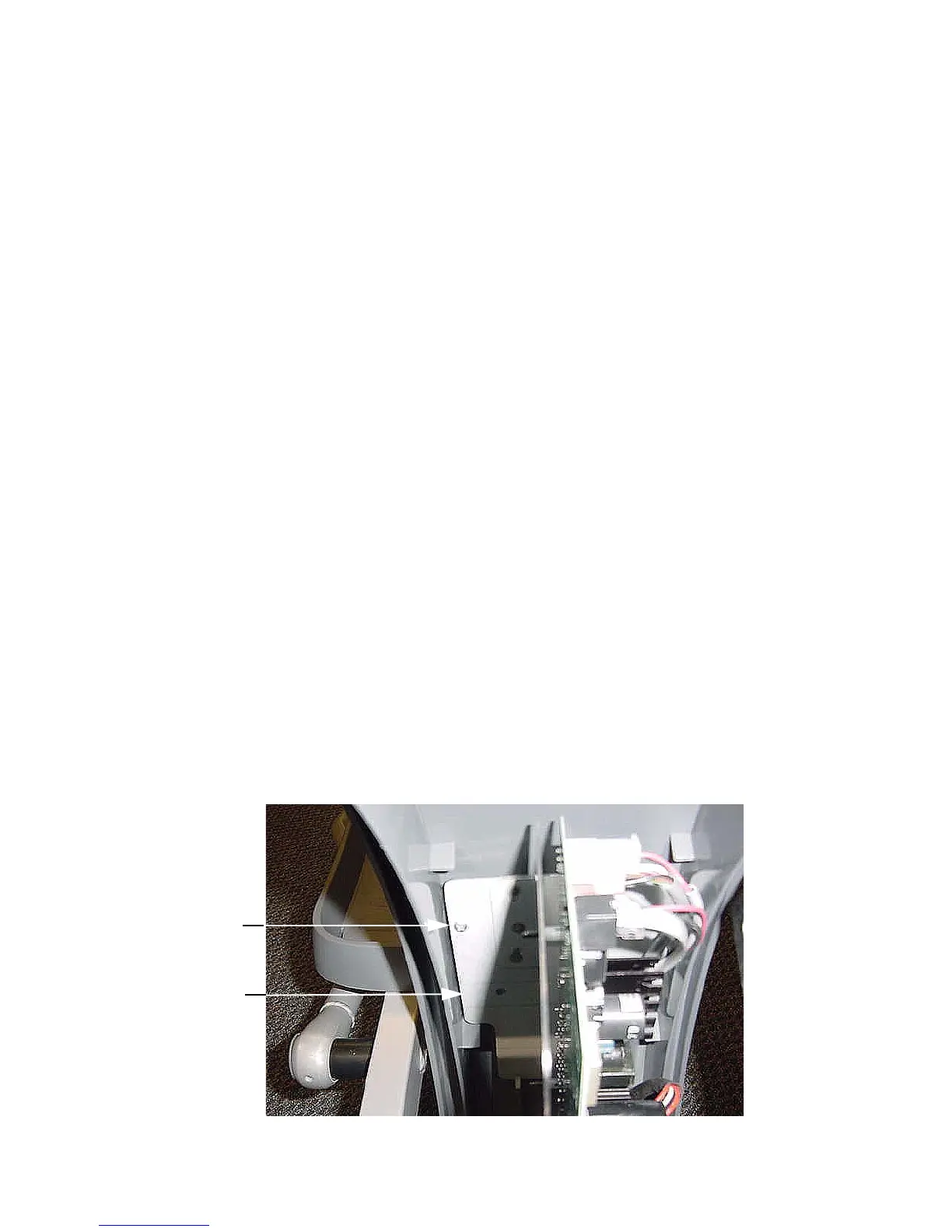

Diagram 7.2 - Lower PCA Mounting Bracket
Mounting
Screw
Mounting
Bracket
