Page #10 background image
page 10
COMMERCIAL PRODUCTS DIVISION
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the Hardware kit
and make sure that you have the following items as shown in Diagram 2:
(A) four socket head hex screws—upright support bracket
(B) four washers—upright support bracket screws
(C) four buttonhead screws—bracket covers
(D) 5/32-inch hex key—screws on the upright support covers
(E) 3/16-inch hex key—upper handrail clamp (Note: A hex torque wrench is
also required, although it isn’t supplied.)
(F) 1/4-inch hex key— upper column assembly (Note: A hex torque wrench
is also required, although it isn’t supplied.)
(G) Split rubber grommet and two bracket covers (not shown in Diagram 2)

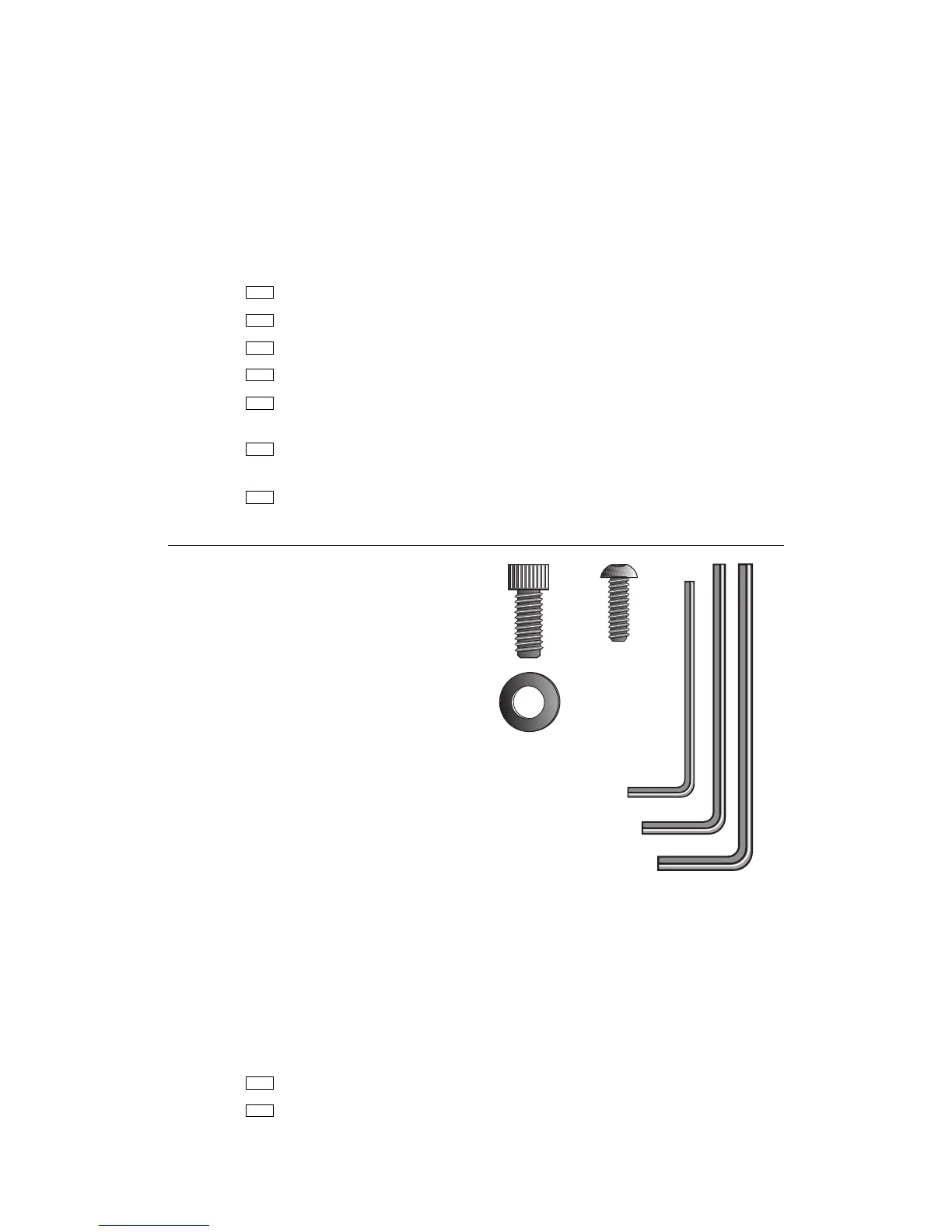

Diagram 2
EFX546
Hardware kit
D
E
If any items are missing, contact your dealer. If you need customer support, refer
to
Obtaining Service
on page 5.
Note: After assembling the EFX, be sure to store the hex keys in a secure place.
The tools are used for maintenance procedures that are described in this manual.
ACQUIRING THE APPROPRIATE TOOLS
Obtain the following tools
before
assembling the EFX.
Wire cutter
Hex torque wrench
A
B
C
F
