Precor EFX546 User Manual

page 14
COMMERCIAL PRODUCTS DIVISION

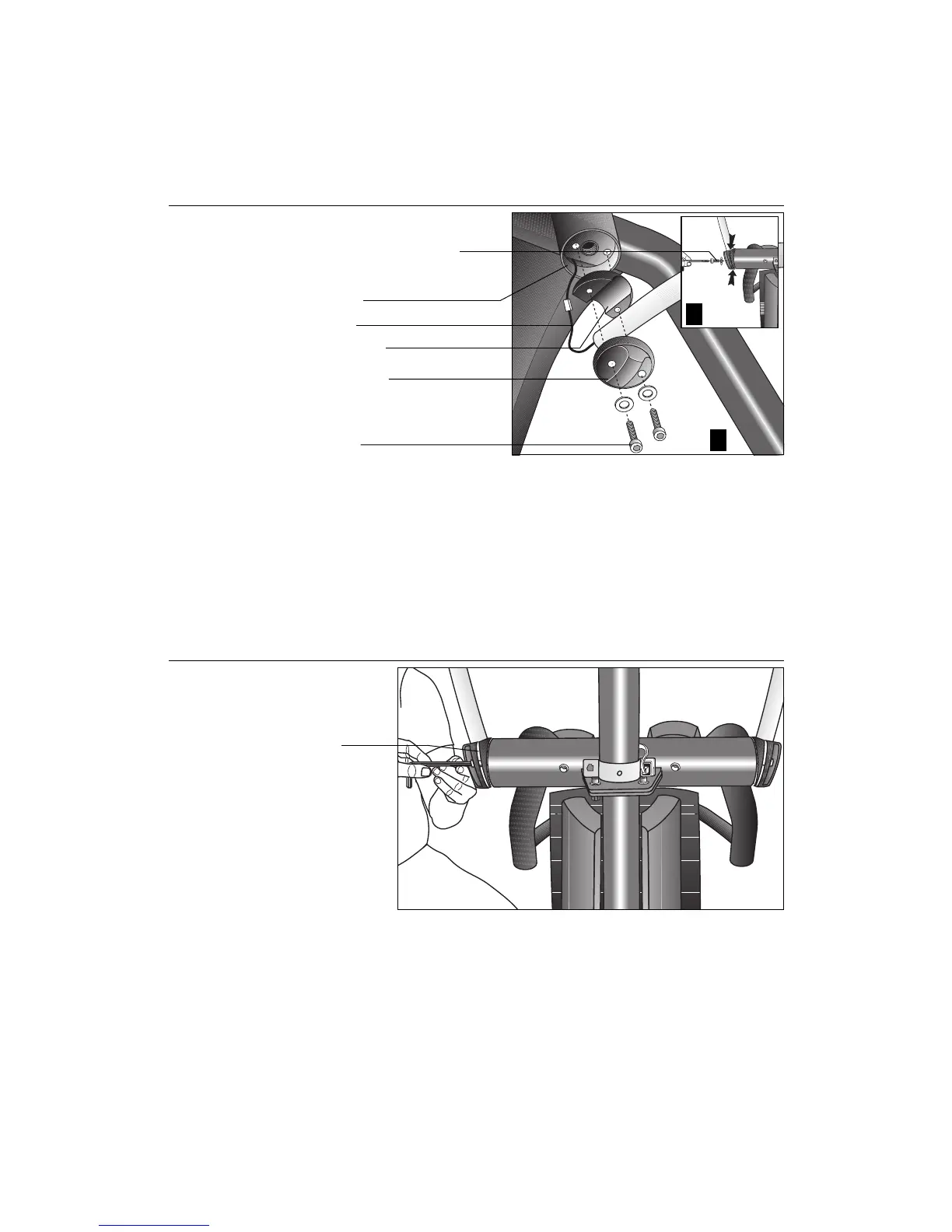

Diagram 6
Attach the lower handrail clamps.
Inner handrail clamp
Cross brace tube
c. Attach the lower end of the handrail by sliding the inner handrail clamp
along the backside of the handrail. See Diagram 6, #1. Fit the clamp into
the cross brace tube.
d. Place the outer handrail clamp over the bottom end of the handrail. See
Diagram 6, #2. The edge of the clamp fits inside the cross brace tube.
e. Place the split lock washers on the two socket head cap screws and
insert the screws as shown in Diagram 6, #2.
Diagram 7
Secure the lower
handrail clamps.
Gap between
edges of clamp
Socket head cap screw with split
lock washer
f. Alternately tighten the two screws with the supplied hex key (F) so that the
gap between the two edges of the clamp remains even. See Diagram 7. Do
not securely tighten the clamp until the EFX has been fully
assembled.
g. Perform steps a. through f. on the opposite handrail.
9. Secure the upper handrails. Diagram 7. With both handrails in place, tighten
the two screws in the upper handrail clamp using the hex key (E) provided.
Then, use a hex torque wrench set to 80 in-lbs (7 ft.-lbs) to fully tighten
the two screws. Refer to Diagram 8.
Outer handrail clamp
Socket head cap screws and
split lock washer
Heart rate cable
2
1

Precor EFX546 Specifications

Mechanical Specifications

cross ramp angle	13 - 40 degrees (adjustable)
stride length	18 inches (46 cm)
resistance levels	1 - 20

Materials and Construction

frame	Powder-coated steel

Weight and Dimensions

length	80 inches (203 cm)
width	30 inches (76 cm)
height	62 inches (156 cm)
weight	230 lbs (105 kg)
shipping weight	340 lbs (155 kg)
