5. Assemble Press Arm
Important: Obtain adult assistance to attach the Press
Arm Assembly.
A. Attach the Press Arm Assembly, with the label
facing out, to the Top Beam using
one threaded shaft
two 1-inch buttonhead bolts
two zinc flat washers
Wrench tighten.

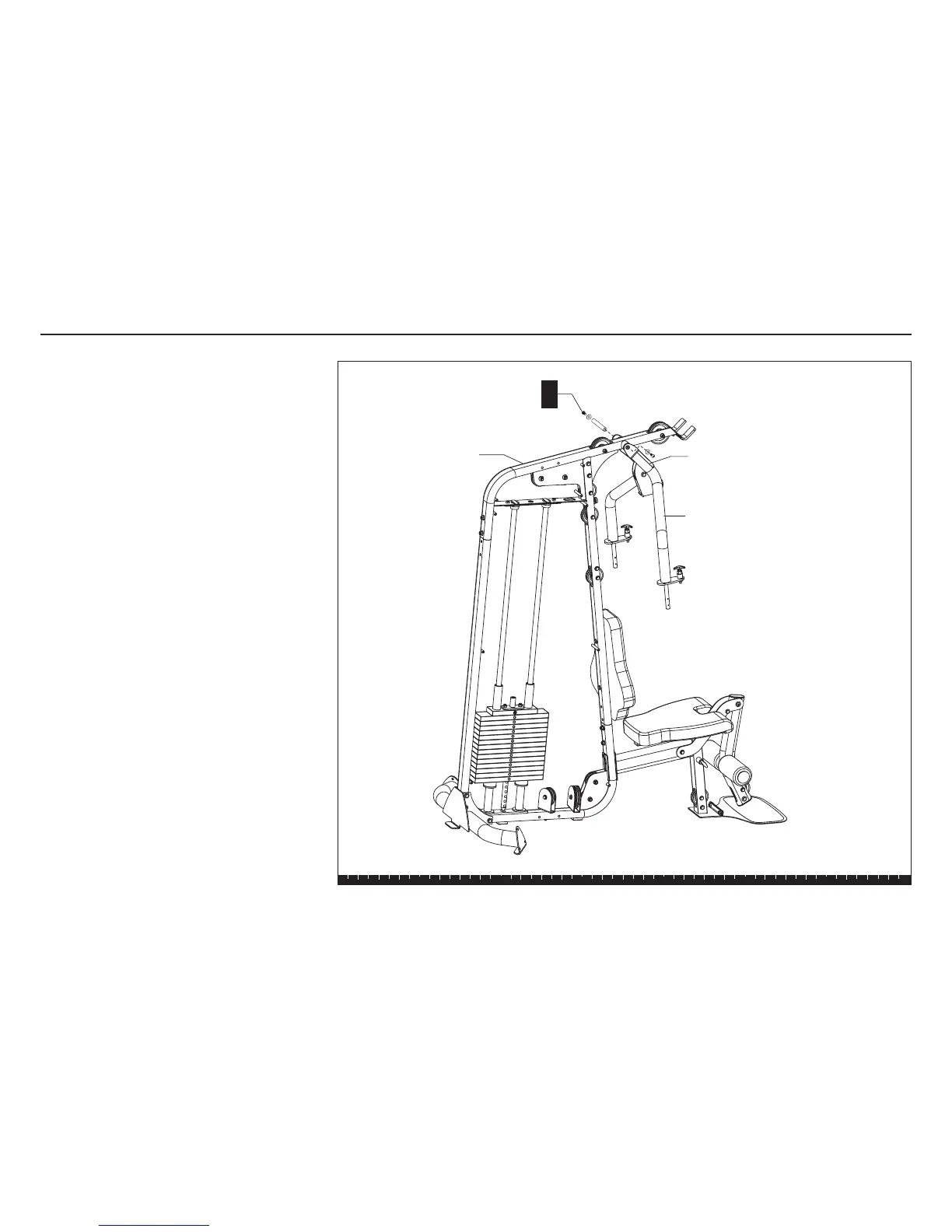

Step 5. Assemble Press Arm
A
1 - threaded shaft
2 - 1" buttonhead bolts
2 - zinc washers
Top Beam
Press Arm
Assembly
Label on Press Arm Assembly
