Precor move beyond S3.15 User Manual

S3.15 Assembly and Maintenance Guide
page 10
1 2 3 4 5 6
2. Assemble Leg Extension
A. Attach the Leg Extension to the Main Base using
two 2½-inch bolts
two spring washers
Wrench tighten.
B. Insert the 2-inch threaded shaft into the Leg
Extension Arm.
C. Attach the Leg Extension Arm to the Leg
Extension using
two ¹⁄₂-inch x ¾-inch buttonhead bolts
two flat washers
Wrench tighten using the 8mm hex keys.

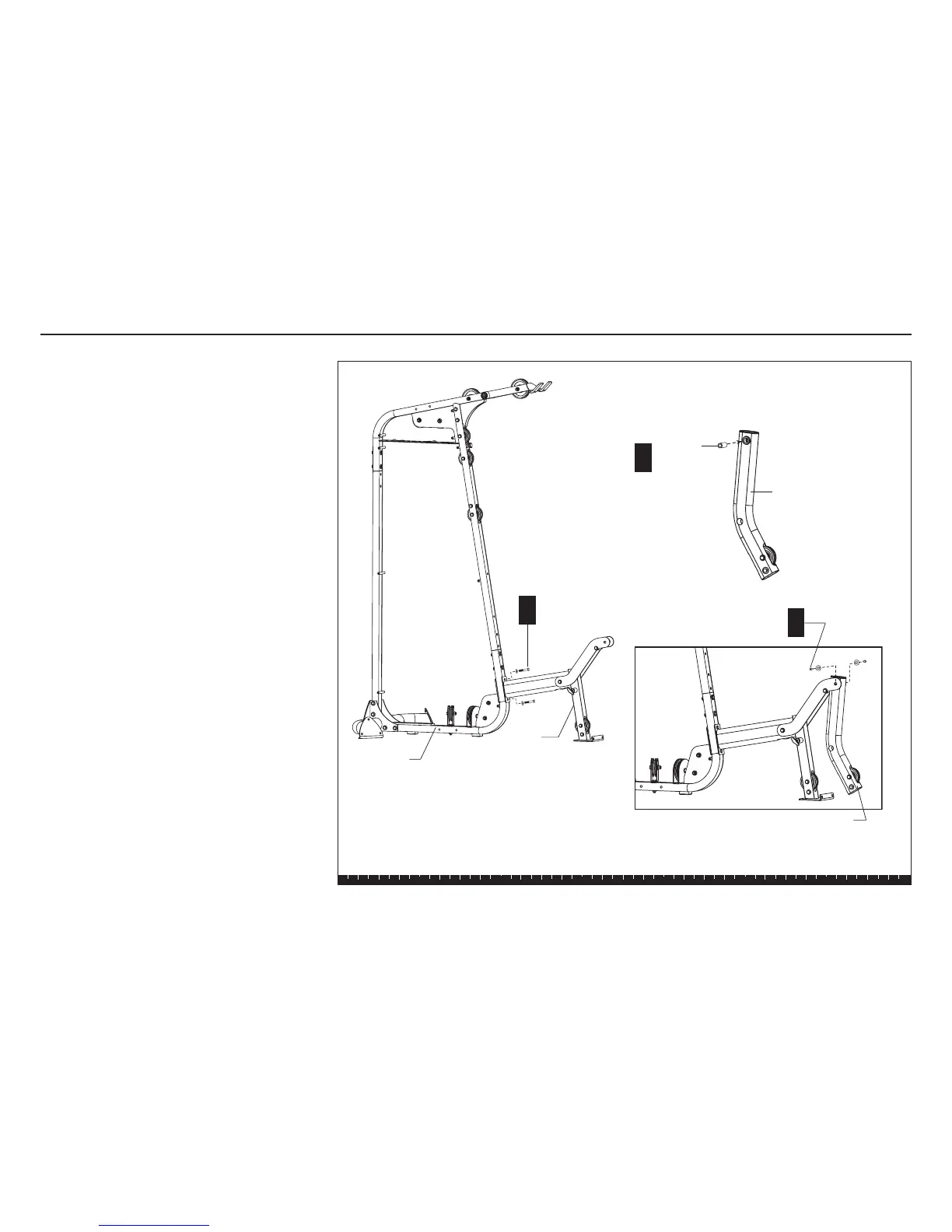

Step 2. Assemble Leg Extension
A
2 - 2½" bolts
2 - spring washers
B
C
2 - ¹⁄₂" x ¾-inch
buttonhead bolts
2 - washers
Threaded
Shaft
Main Base
Leg Extension Arm
Leg Extension Arm
Leg
Extension

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
