S3.15 Assembly and Maintenance Guide
page 9
1 2 3 4 5 6
D. For ease of assembly, disassemble and remove
the top pulley and its fasteners on the Main
Upright.
E. Install the Top Beam on the Rear and Main
Uprights and reinstall the top pulley and fastener
assembly.
Note: If necessary, use a rubber mallet to align the
mounting holes.
F. Secure the Top Beam to the Rear Upright using
two 2¹⁄₄-inch hex head bolts
four flat washers
two locknuts
G. Secure the Top Beam to the Main Upright using
two 4-inch hex head bolts
four radius washers
two locknuts
Note: Make sure the radius washers lie flat against
the Main Upright before wrench tightening.
H. Wrench tighten all bolts. Start with the fasteners
that secure the Top Beam and follow the order of
the assembled steps in reverse.
J. Replace the top pulley and finger tighten the
fasteners.

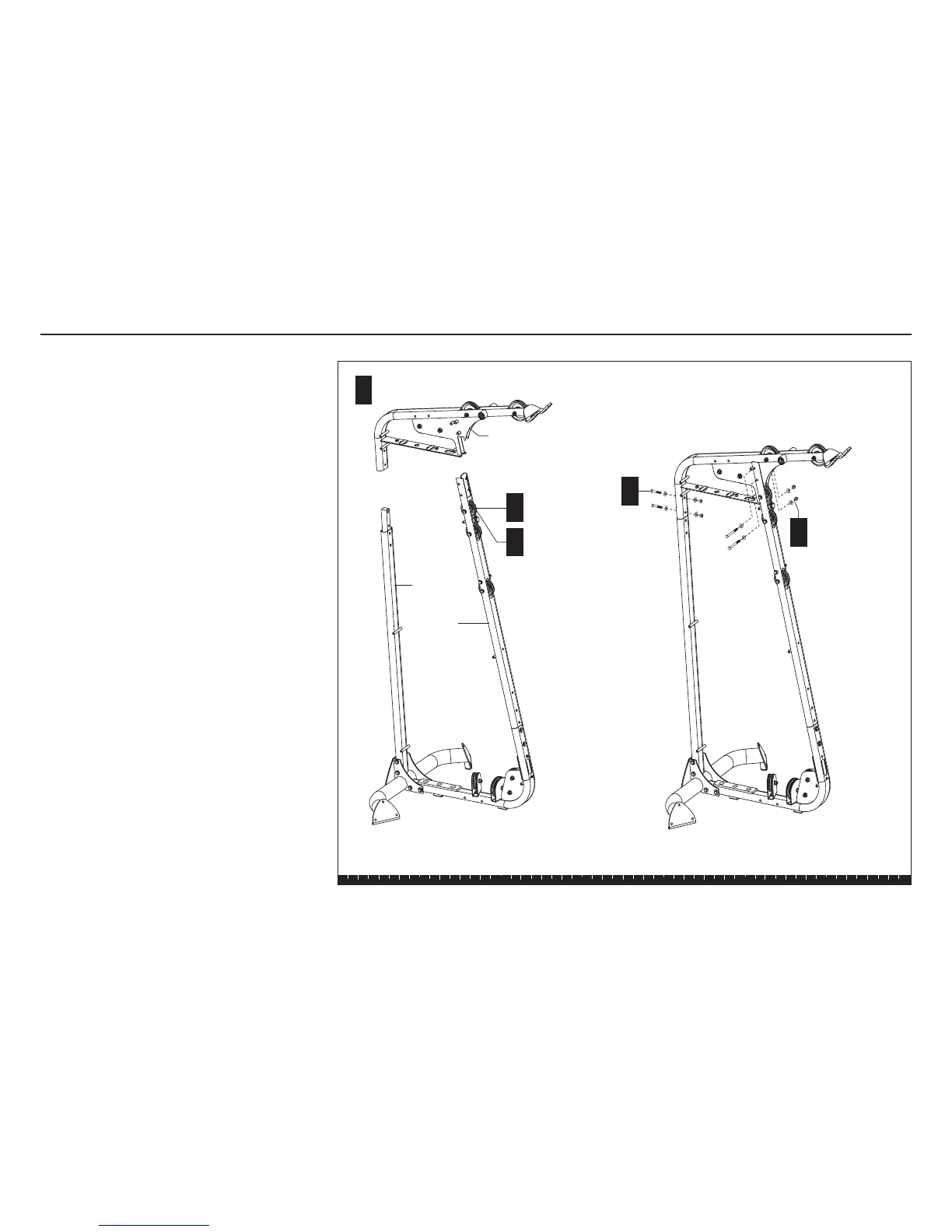

Step 1. Assemble Main Structure, continued
E
F
Align Top Beam with
uprights.
Main
Upright
Rear
Upright
2 - 2¹⁄₄" bolts
4 - washers
2 - locknuts
G
2 - 4" bolts
4 - radius washers
2 - locknuts
Top Beam
D
J

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
