Precor move beyond S3.15 User Manual

S3.15 Assembly and Maintenance Guide
page 17
1 2 3 4 5 6

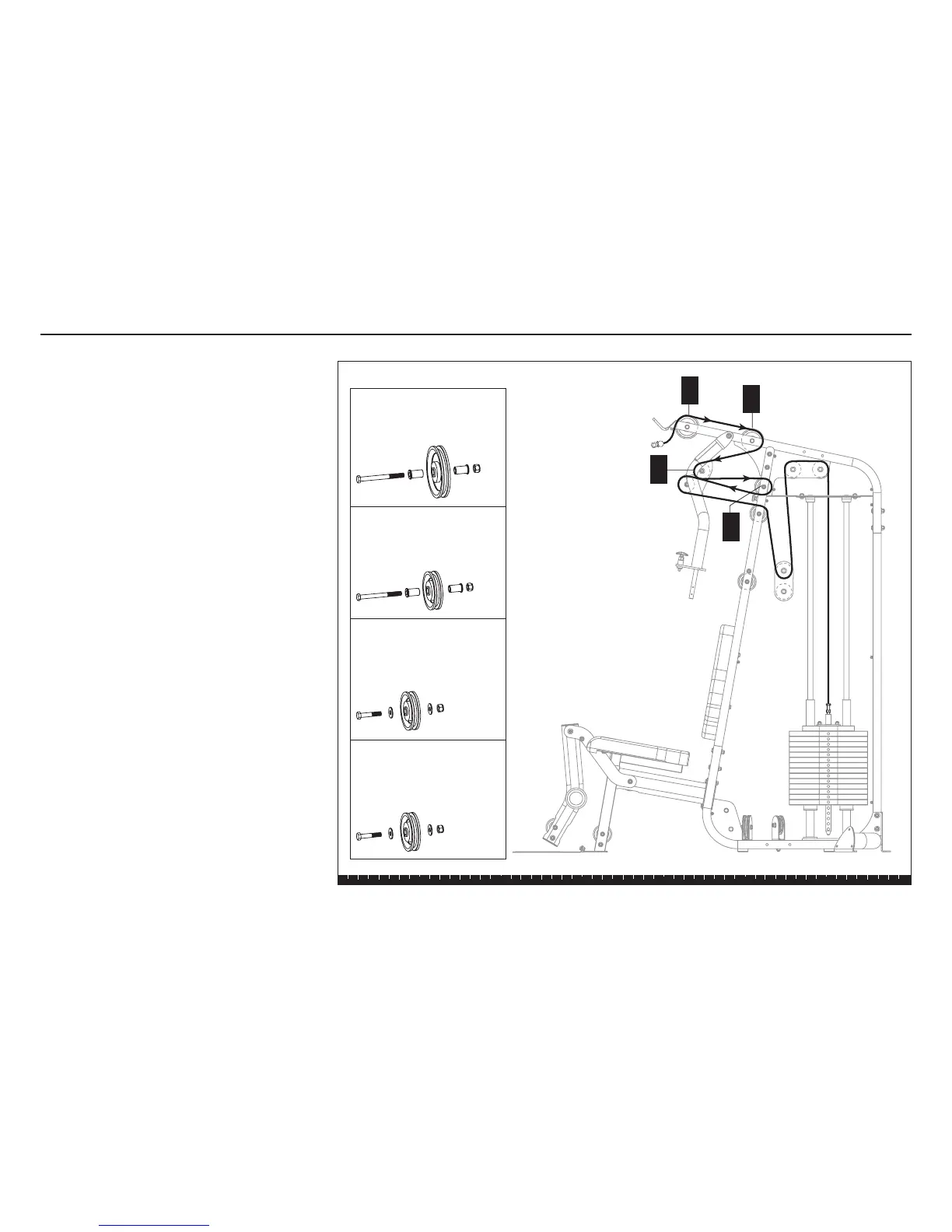

Step 6. Install Main Cable
6. Install Main Cable
Note: All pulleys are installed in the frame
assemblies. As you begin each new step, remove
the fasteners and pulley. Feed the cable around
the pulley as shown, and then replace the
fasteners and finger tighten. Wrench tighten all
pulley fasteners once you have completed the
installation of each cable assembly.
A. Start at the Top Beam and feed the threaded end
of Main Cable 130197 over one 4½-inch pulley.
Attach the pulley to the Top Beam using
one 4-inch hex head bolt
two 1¹⁄₄-inch shoulder spacers
one locknut
B. Feed the cable over the second 4½-inch pulley.
Attach the pulley to the Top Beam using
one 4-inch hex head bolt
two 1¹⁄₄-inch shoulder spacers
one locknut
C. Feed the cable over the upper 3½-inch pulley
located in the Press Arm assembly. Attach the
pulley to the Press Arm assembly using
one 2-inch zinc hex head bolt
two zinc flat washers
one zinc locknut
D. Feed the cable over the upper 3½-inch pulley
located in the Main Upright. Attach the pulley to the
Main Upright using
one 4-inch hex head bolt
two 1¹⁄₄-inch shoulder spacers
one locknut
A
B
C
D
4½-inch Pulley
1 - bolt
2 - shoulder spacers
1 - locknut
3½-inch Pulley (used on gray
painted parts)
1 - bolt
2 - shoulder spacers
1 - locknut
Pulley assemblies
3½-inch Pulley (used on
titanium parts)
1 - zinc bolt
2 - zinc washers
1 - zinc locknut
3½-inch Pulley (used on gray
painted parts)
1 - bolt
2 - washers
1 - locknut

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
