Cable Adjustments and Maintenance, continued

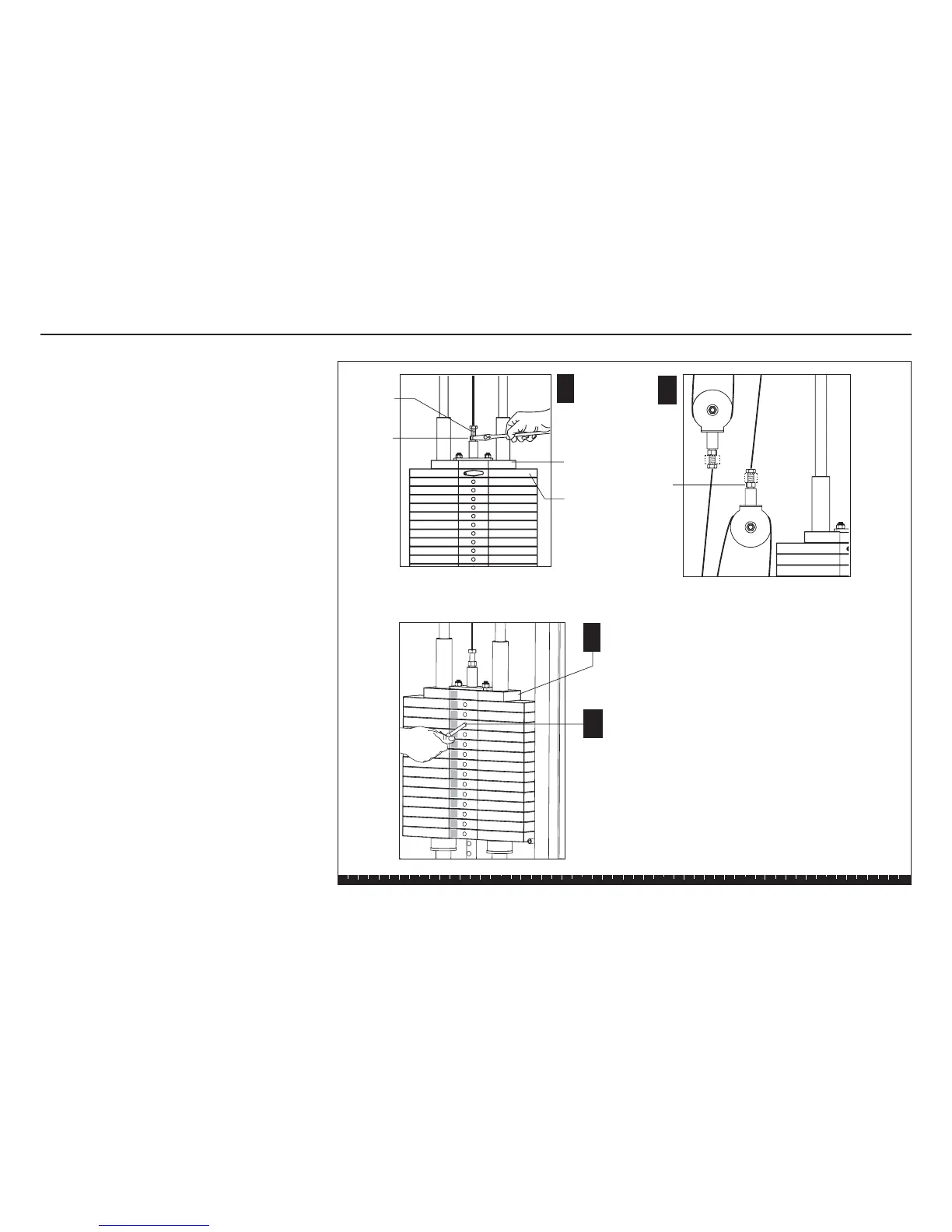

2. Cable Adjustments
You may need to adjust the cables after installation and
periodically thereafter. If the cables remain slack after
you have followed the steps found in Cable Tension ,
perform the following:
A. Loosen the jam nut on the Weight Stack threaded
end to expose additional threads. Adjust the
threaded end until the slack is removed.
B. Loosen the jam nuts on the Floating Pulleys
threaded ends. Adjust the threaded ends until the
slack is removed. Make sure the amount of threads
exposed on one pulley is about the same as the
other pulley.
C. Check the Top Cap Weight to make sure it remains
well-seated on the Weight Stack and then retighten
the jam nuts.
D. Check the Selector Stem alignment by inserting
the Weight Pin into every hole on the Weight Stack.
C
A
D
Threads
Jam Nut
Top Cap
Weight
Jam Nut
B
Thread exposure should remain the
same for both Floating Pulleys.
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
Top Cap Weight is fully
seated on the top weight.
No gap should appear.
Top Weight

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
